120 BPH Gallon Filling Line

Product Details:
Place of Origin: China,JiangSu,Zhangjiagang
Brand Name: FillPack
Certification: CE. ISO9001
Model Number: QCF-120
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD $2600/set
Packaging Details: Wooden Case Package
Delivery Time: 15-20days after deposit receipt
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 15sets / month

Detail Information

Voltage: 380V 50Hz Weight: 400kg
Dimension: 3100*570*1450mm(cap Loader At Side)/2700*570*1720mm(cap Loader At Top)+2000mm Conveyor Material: SUS304
Volume: 18.9 L Tube: UPVC
Power: 2.5KW Condition: New
High Light:

120 BPH Gallon Filling Machine

,

120 BPH bucket filling line

Product Description

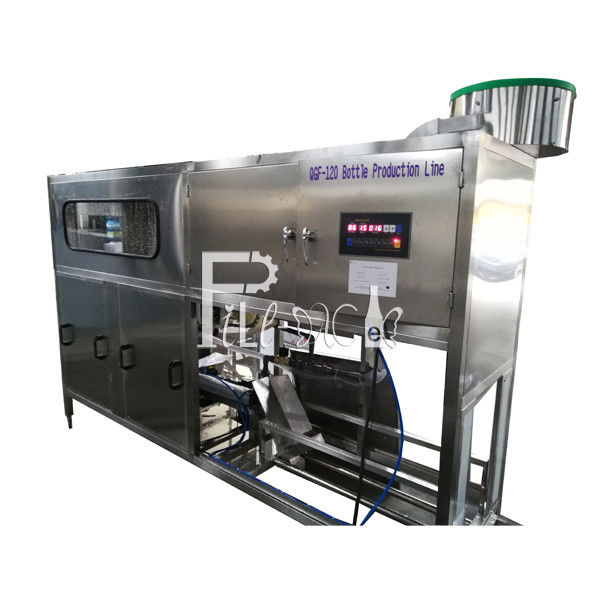

QGF-120 automatic 5 Gallon water botte / bucket filling line / machine / system



Principle:

This 5 gallon bottle water filling line is integrated with jar washing-filling-capping functions together;

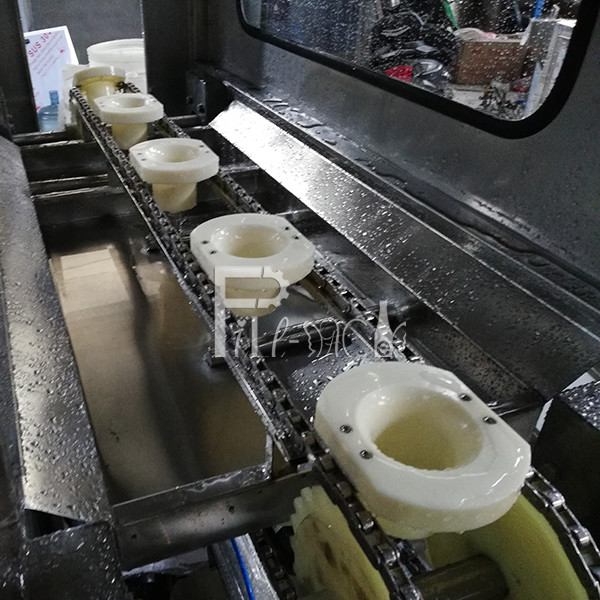

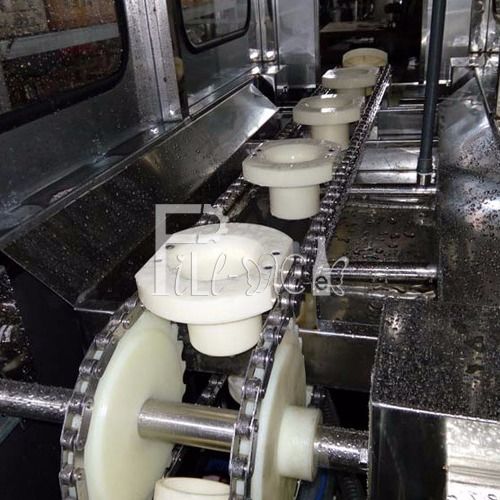

Worker loads empty jar on jar holder manually, the jar holder with jar will be transferred in advance for jar washing, the transmission force is by gear cylinder;

Washing will be devided into 3 parts, 1st process is by disinfectant fluid, 2nd process is by recycle water washing, 3rd process is by pure water;After washing, the jars will be falling down on angle plate from jar holder by transmission chain with gravity force;

Then the jars will be pushed by pushing cylinder to under filling head, then filling start;

Filling volume can be controlled by filling time set up.

The filled jars will be pushed to under capping head by empty jars afterwards.

Worker put lot of disordered caps into cap loader, cap loader will sort cap automatically to load down into cap rail.

When filled bottles passing under capping head, cap will fall down onto jar neck, then capping cylinder will do the capping automatically by cap pressing cylinder.



Characters:

1, The whole 5 gallon bottle water filling line is controlled by PID system, all cylinder travel is calculated in advance for driven distance;

2, The 5 gallon bottle water filling line can work under automatic model, manual model is for machine checking;



120 BPH Gallon Filling Line 0

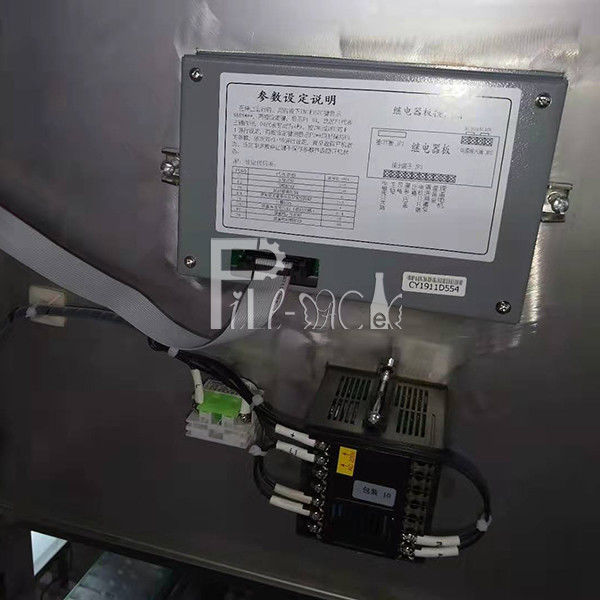

Control details, PLC:

120 BPH Gallon Filling Line 1



Tank details:

120 BPH Gallon Filling Line 2



Parameters:

Rinsing pump 1: 0.37KW

Rinsing pump 2: 0.37KW

Filling pump: 0.55KW

Cap sorting motor: 0.09KW

Dimension: 3100*570*1450mm (cap loader at side)/2700*570*1720mm (cap loader at top)+ 2000mm conveyor

Weight: 400kg





Recommended Spare parts list:

NO. Items Qty. Price(USD)
1 Sealing ring for filling valves 1suit For free
2 Bucket holder 2pcs 6.8
3 Cap pressing mould 1pcs 5
4 Air switch 1pcs 17
5 Contactor 1pcs 14
6 Solenoid valve 1pcs 27



Packing & Delivery

1. the 5 gallon bottle water filling line is packed by wooden case.
2. The delivery date of gallon bottle water filling machine is within 30 days after payment.



1. installation&commissioning

After the 5 gallon bottle water filling line arrived at the customer's site. the customer is responsible for unpacking and arranging the equipment according to the placement drawing;Our technician will do equipment set up and commissioning,buyer should offer necessary help if needed



2. Training

We are responsible for offering the technical training to user.Through training,users' technical staff can grasp and the skill of operation and maintenance proficiently.The buyer also can send staff to our company for learning.
