250BPH 5 Gallon Bottle Washer With Checking Window

Minimum Order Quantity : 1 Price : USD $700/set
Packaging Details : Wooden Case Package Delivery Time : 15-20days after deposit receipt
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 10 set / month
Place of Origin: China,JiangSu,Zhangjiagang Brand Name: FillPack
Certification: CE. ISO9001 Model Number: BS-1

Detail Information

Power: 1.2KW Weight: 120kg
Material: SUS304 Automatic Grade: Semi-auto
Capacity: 200-250BPH Packaging Type: Barrel
Condition: New
High Light:

200BPH Barrel Bottle Washing Machine

,

250BPH 5 Gallon Bottle Washing Machine

,

200BPH Gallon Bottle Rinser

Product Description

Description of BS-1 semi automatic Gallon washer decapping with checking window



Principle of this Gallon washer:

This machine is mainly use for washing the recycle empty 3-5gallon barrels in the 5 gallon barreled water filling line, it is for clean the impurity,deposition and algae etc,it also equipts decapping device.

Worker put used jar in right side of de-capper position, with the neck inserting into the hole, worker foot press pedal to release cap off neck; And then worker need to take the jar to insert into left side of the machine-washing position. After the jar putting in, the window need to be closed. Then the washer will be started by itself. During washing, the inner brush inside jar and Washing time is pre-settled, the machine will stop when time finish. Heating function could be switched on/ off as client’s needing.



Main Technical parameter of this Gallon washer:

Capacity 200-250b/h
Brushes 8
Barrel size 3-5gallon(270×490×56)
Air pressure 0.5MPa
Water consumption 0.01t/h
Power 1.12KW without heating, 2.12KW with heating
Outline dimensions 800*750*1200mm
Weight 120Kg

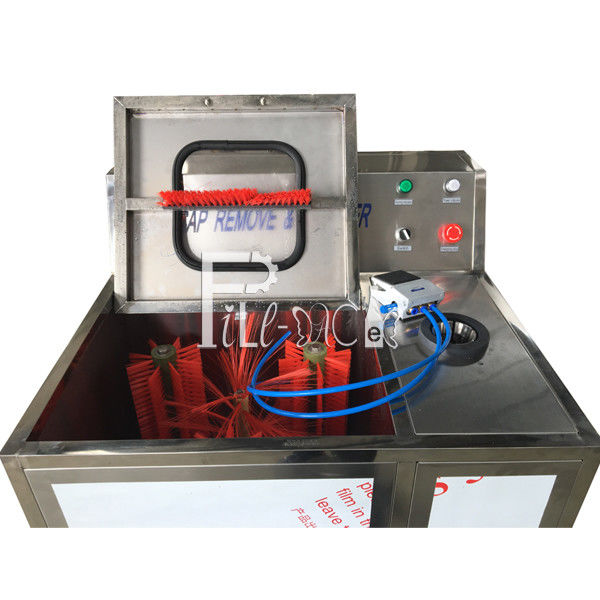

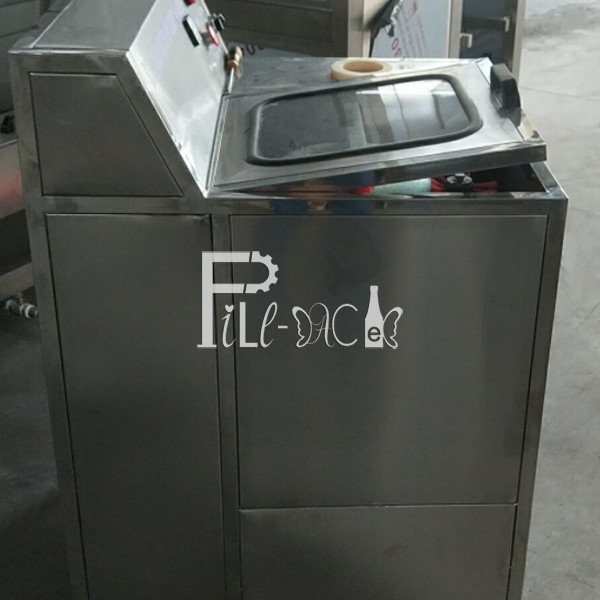

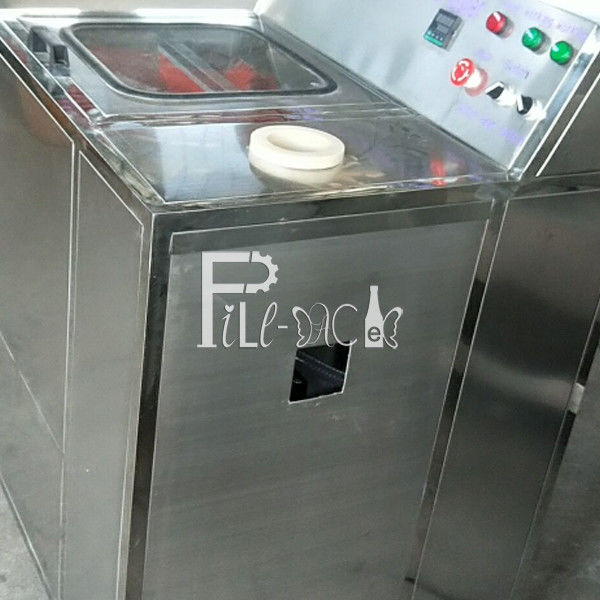

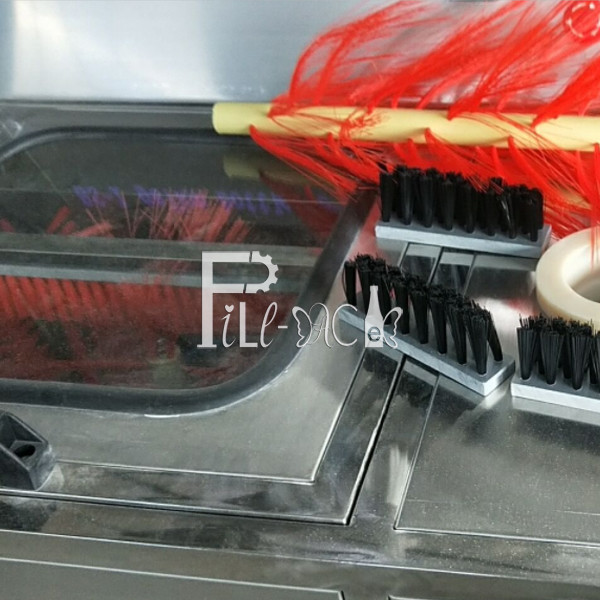

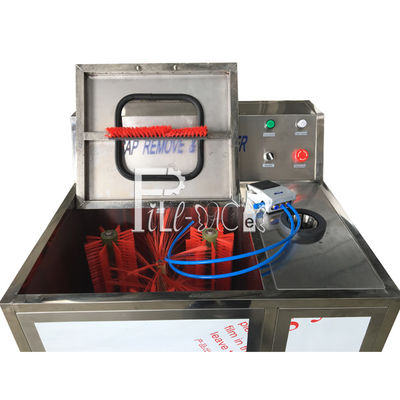

The details of this Gallon washer:

250BPH 5 Gallon Bottle Washer With Checking Window 0

250BPH 5 Gallon Bottle Washer With Checking Window 1

Our Services

we have an engineers team with high sense of responsibility and technology to do designing and commissioning for your equipments.

Each project was tracked together by special salesman and engineer in our company.

We provide one year warranty with spare parts free of charge.

Our engineer will go to your site to do installation and commissioning as the equipments are there and the water and electricity are ready.
