| Minimum Order Quantity : | 1 set | Price : | USD $6000-$8000/set |
|---|---|---|---|
| Packaging Details : | wooden case | Delivery Time : | 15-20 working days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 20 sets/month |
| Place of Origin: | ZhangJiaGang JiangSu China | Brand Name: | FILL PACK |
|---|---|---|---|
| Certification: | CE, ISO9001 | Model Number: | QGF-450 |
|
Detail Information |
|||

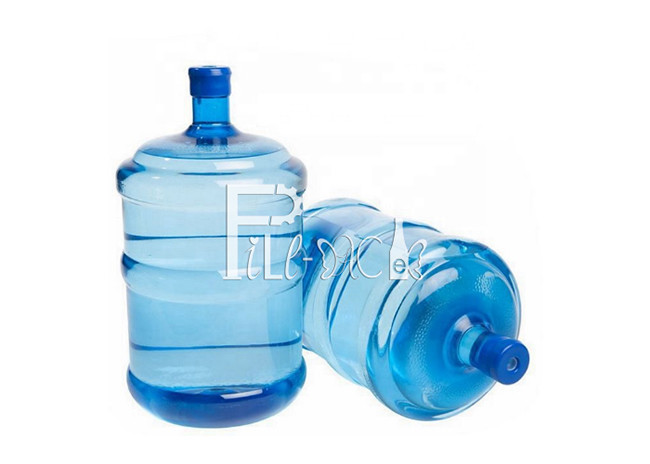

| Bottle Volume: | 18.9 L Bottle | Capacity: | 450bottles Per Hour |
|---|---|---|---|
| Control: | PID | Material: | SUS |
| Dimension(L*W*H): | 3600*2000*1800mm | Production Line: | Whole Complete Line |
| Condition: | New | Warranty: | 1 Year |
| High Light: | SUS 304 Barrel Water Filling Machine,450BPH automatic water bottling machine |
||
Product Description

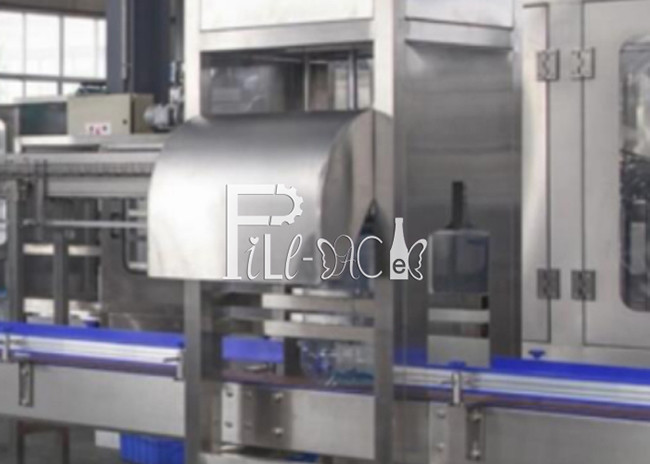

Description of 450BPH 3 / 5 Gallon barrel / bucket Water filling line with SUS 304
The whole bucket Water filling line is made of superior stainless steel, anticorrosive and easy to clean.
Only two operators are needed for a line, which is wholly automatic barreled
Full-auto barrel de-capper, full-auto barrel outside brusher, full-auto barrel loading machine, steam shrinking film machine and coding system can be choose depends on what customer's need.
Equipment list of bucket Water filling line:
| 1.1 | Automatic De-capper | BG-1 | 600*600*2000 | 1set |
| 1.2 | Rotary external washer | RXT-3 | 1800*1550*1750 | 1set |
| 1.3 | L type Washer/Filler/Capper with auto bottle loading | WFC-450H | 3600*2000*1800 | 1set |
| 1.4 | Heat Shrinking Machine | / | 800*600*1200 | 1set |
| 1.5 | Checking Light | CL-1 | 1000*100*450 | 1pc |
| 1.6 | Conveyor Belt with Motor | / | 10m+2 motors | 1set |
| 1.7 | Code printer | OH-338 | / | 1set |
The whole bucket Water filling line includes Automatic De-capper, Rotary external washer, L type Washer/Filler/Capper, Heat Shrinking Machine, Checking Light

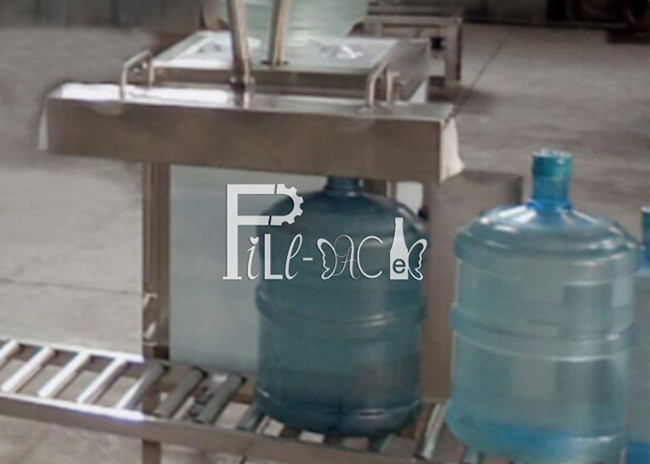

1, Automatic De-capper:
2, Rotary external washer
The machine is controlled by PLC and used for gallon jar outside brush washing; When the jars are sent into the machine by the conveyor, the brushes inside driven by motor will rotate quickly. The main brush shape is made according to jar shape and size which the jar neck and shoulder will be washed completely. Water showing will be done at the same time of brush washing.
No air compressor needed, it is easy for production and maintenance;

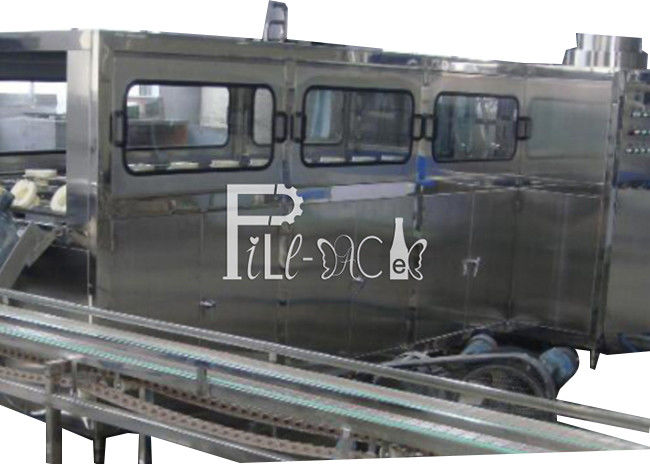

3, Monoblock gallon rinser-filler-capper
Parameters:
Cylinder: Air tech-Taiwan
Magnetic valve: Air tech-Taiwan
Rising pump-filling pump: Nanfang
PLC: Mitsubishi Japan
Material: SUS304
Power: 5KW
Dimension: 3600*2000*1800mm
Weight: 800kg
4, Steam shrink Machine
5, Ink jet code printer
| Model | QGF-100 | QGF-300 | QGF-450 | QGF-600 | QGF-9000 | QGF-1200 |
| Filling heads | 1 | 2 | 3 | 4 | 6 | 12 |
| Volume(gallon) | 3&5 | 3&5 | 3&5 | 3&5 | 3&5 | 3&5 |
| Barrel size(mm) | 270-490 | 270-490 | 270-490 | 270-490 | 270-490 | 270-490 |
| Capacity(b/h) | 60-100 | 250-300 | 400-450 | 600-800 | 800-900 | 1000-1200 |
| Gas pressure(Mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | 0.6 |
| Gas consumption(m³/m) | 0.37 | 0.6 | 0.8 | 1 | 1.5 | 1.8 |
| Moto power (kw) | 1.38 | 3.8 | 3.8 | 7.5 | 9.75 | 13.5 |
| Rated Voltage(V) | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ |
| Weight(kg) | 680 | 1500 | 2100 | 3000 | 3500 | 4500 |
