SUS304 5 Gallon Water Bottling Machine

Minimum Order Quantity : 1 set Price : USD $18,000-$20,000/set
Packaging Details : wooden case Delivery Time : 15-20 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 5 sets/month
Place of Origin: ZhangJiaGang JiangSu China Brand Name: FILL PACK
Certification: CE, ISO9001 Model Number: QGF600

Detail Information

Bottle Size: 10~20 L Bottle Capacity: 600BPH
Warranty: 1 YEAR Voltage: 220V/380V 50HZ
Dimension(L*W*H): 5000*2300*1800mm Filling Accuracy: 99%
Condition: New Conveyor Mode: Conveyor Belt
High Light:

SUS304 5 Gallon Water Bottling Machine

,

600BPH jar filling equipment

,

10 liter jar filling equipment

Product Description

Description of 600BPH 5 Gallon bottling line for big bottle with stainless steel shell



Equipment list of 5 Gallon bottling line:

1.1 Automatic De-capper BG-2 900*600*2000 1set
1.2 Rotary external washer RXT-3 1800*1550*1750 1set
1.3 L type Washer/Filler/Capper with auto bottle loading WFC-600H 5000*2300*1800 1set
1.4 Heat Shrinking Machine / 800*600*1200 1set
1.5 Checking Light CL-1 1000*100*450 1pc
1.6 Conveyor Belt with Motor / 10m+2 motors 1set
1.7 Ink jet code printer OH-338 347*220*100 1set

  The 5 Gallon bottling line works reliably and efficiently based on the compact structure and high automatic technology. It is the fully automatic barreled water producing equipment combined with machine, electronic and pneumatic components.

  The whole line includes Automatic De-capper, Rotary external washer, L type Washer/Filler/Capper, Heat Shrinking Machine, Checking Light, Ink jet code printer.



Containers and Specifications of 5 Gallon bottling line
Project Name:
Full Automatic Complete 600BPH 3-5 Gallon Barrel Filling Production Line
Mineral Water /
Pure Water
Material
Shape
Filling volume
Filling Type
Conveyor Mode
PC / PET
Round or Square
3 - 5 Gallon
Gravity filling
Normal temperature
Conveyor belt
Adjustable Specifications
of
Bottle Type
Size of Barrel : ф276×490mm
Customers need to buy additional change-over parts for the different bottles.
If using square bottles, then bottle separating system will be added.
Container Label
Sticker Label / Shrink Wrap Label / Prinetr Label
User Ambient Conditions
Temperature:10~40℃;Humidity:No dew
User Electrical Supply Specification
Voltage:380V±5%, 3phase; Frequency:50HZ±1%



1, Automatic De-capper:
De-capping head: 2 heads
Dimension: 900*600*2000mm
Weight: 130kg



2, Rotary external washer

Parameters:

Dimension: 1800*1550*1750mm

Weight: 800kg

Power: pump 0.37+motors 0.75*2+transfer motor 1.1=2.97KW

Recycle water tank size: 600*550*550mm

Automatic barrel outer brushing machine specially work with 5 Gallon barreled water producing line. It is used for reducing the settling caused by the mineral water itself and some algae substances in the process of mineral water producing. The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance. The main electrical elements adopt the products with brands of SIEMENS and OMRON. Pneumatic elements adopt the products with brand of AIRTAC.

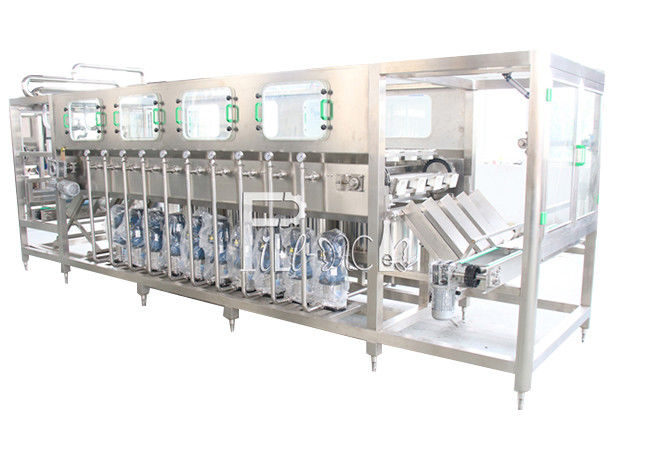

3, Monoblock gallon rinser-filler-capper

4, Steam shrink Machine
5, Ink jet code printer



6, Automatic cap lifter-washer

Dimension: 800*800*3000

Weight: 130kg

SUS304 5 Gallon Water Bottling Machine 0

SUS304 5 Gallon Water Bottling Machine 1
