Product Details:
|
|
Place of Origin: | China,JiangSu,Zhangjiagang |
---|---|
Brand Name: | FillPack |
Certification: | CE. ISO9001 |
Model Number: | 500A2 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 |
Price: | USD $1300/set |
Packaging Details: | Wooden Case Package |
Delivery Time: | 15-20days after deposit receipt |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 20sets/month |
Detail Information |
|||
Film Thickness:: | 0.08 Mm | Bag Length:: | 50-150mm |
---|---|---|---|
Power:: | 1.6KW | Weight:: | 275KG |
Name: | Sachet Water Sealing Machine | Packing Speed: | 2000-2200Sachets/Hr |
Condition: | New | Warranty: | 1 Year |
Highlight: | 1L Sachet Water Sealing Machine,1.6KW Sachet Water Filling Machine |
Product Description

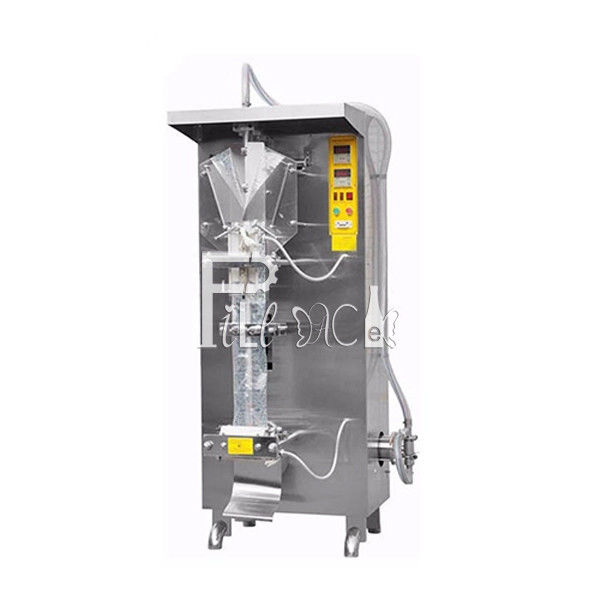

Fully Automatic Plastic Sachet water filling Machine for 0-1L
Sachet Water Making Machine description:
Automatic Plastic Pouch Liquid Sachet Water Filling Machine It is applicable for packing the liquid like pure water, mineral water, fruit juice, milk, soy milk and coconut milk etc.
1) Basic features of the sachet filling packing machine:
Auto Film Feeding+ Vertical Forming Sealing + Horizontal Sealing + Quantitive Filling + Uv System + Date Coding / Counting
2) Structure of the machinery:Basic Type
Sachet Water Making Machine Features and function:
01. Frame and Liquid Contacting parts are SUS304. Equipped with water pump for the water filling purpose and motor and speed reducer control unit for the speed control of the film distribution system.
02. Film dispensing unit: is composed of film setting system, film guiding SUS304 steel post, vertical thermal heating sealing rubber and the copper system, horizontal thermal sealing and cutting system. The film will be
forming according to the film setting process, to make the bags ready for filling water.
03. Filling unit: is composed of water pump, inlet control valve, Quantities will be depending on the piston type filler.

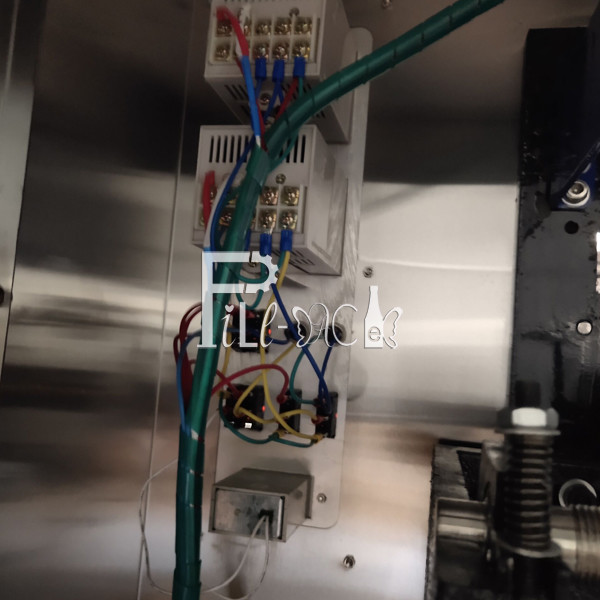

04. Auto sealing system: is composed of the film inlet guiding post, wheel, and the thermal heating modular, thermal heating tube, temperature controller, and pressure adjusting spring valve.
05. Film output system: is composed of SUS304 sliding rail plate.

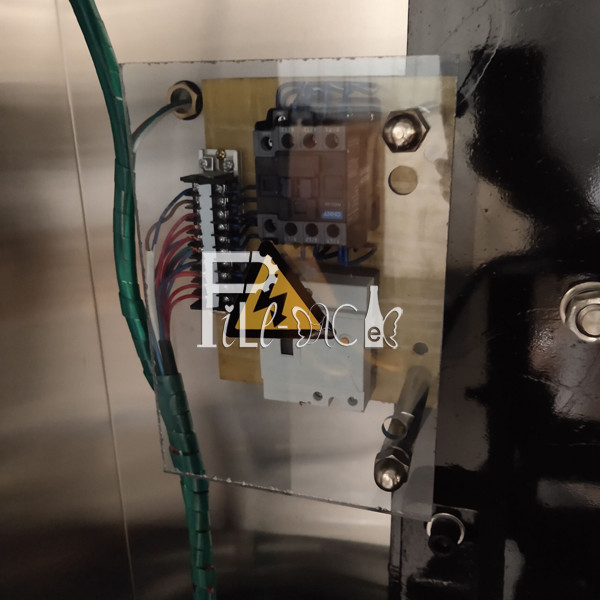

06. Electrical control system: is composed of control panel, wiring, and the AC contactor system.
07. UV sterilizer and date coder is equipped on the machine
08. Data counting unit is equipped on the front panel.
Sachet Water Making Machine Technical parameter:
Model | 500A1 | 1000A1 |
Bag Making Length | 50-150mm | 50-250mm |
Bag Making Width | 40-150mm | 40-175mm |
Packing Use Film Width | 100-320mm | 100-380mm |
Packing Volume | 50-550ml | 200-1000ml |
Packing Speed | 2000-2200Sachets/Hr | 1000-1300Sachets/Hr |
Total Power | 1.6KW | 2.5KW |
Dimension | 880*760*1800mm | 1050*850*2050mm |
Weight | 275KGS | 380KGS |
Film distribution type | Gear Moving Mechanical Control | |
Monitoring Sensor | NO |
