1200BPH Mineral Water Bottling Machine

Product Details:
Place of Origin: ZhangJiaGang City, JiangSu Province, China
Brand Name: FILLPACK
Certification: CE,ISO
Model Number: QGF-1200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set/pcs
Price: USD$87,000.00-USD$93,000.00
Packaging Details: Wooden case pacakge
Delivery Time: 30-35days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5 sets/month

Detail Information

After-sales Service: Online Support, Video Technical Support Automatic Grade: Automatic
Type: Filling Machine Capacity: 1200BPH
Filling Accuracy: 99.8% Core Components: Motor, Pressure Vessel, Pump, PLC, Gear, Bearing, Gearbox
Condition: New Name: Mineral Water Bottling Machine
High Light:

1200BPH 5 gallon filling machine5 gallon water bottling machine


1200BPH pure water filling machine

Product Description

1200BPH 3 - 5 Gallon Water Production Machine With 8 Filling Head


Brief intruduction of Barrel Bottling Line:

This filling machine specially produces 3/5 gallons bottled drinking water, whose type(b/h) is:1200type. Ltinte grates bottle washer, filler and sealer into one unit, in order to achieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and leaching are used in bottle washer, Washing solution can boused circularly.

The sealer can seal bottle caps automatically. This line equips with water spraying device to sterilize caps of bottles in order to ensure those caps are aseptic and healthy, also this line can automatically carry out bottle feeding washing, sterilizing, filling capping, counting and products discharging. It is a new kind of barreled water auto-producing line, which integrates mechanism, electricity and pneumatics technologies together.


Main Features of Barrel Bottling Line:

QGF type barreled water producing line is the core equipment in the 5 Gallon barreled drinking water producing line. It is the ideal equipment for mineral water, distilled water and purified water producing process. The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance. The main electrical parts adopt products with brand of SIEMENS and OMRON. Pneumatic parts adopt products with brand of AIRTAC. Both the inner and outer shower nozzle for washing barrel adopt the special technology equipment from American sprayer company. The machine works reliably and efficiently based on the compact structure and high automatic technology. It is the fully automatic barreled water producing equipment combined with machine, electronic and pneumatic components.


Containers and Specifications
Project Name: Mineral Water
1200BPH 3 - 5 Gallon Water Production Machine With 8 Filling Head Pure Water
Material Shape Filling volume Filling Type Conveyor Mode
PC / PET Round or Square 3 - 5 Gallon Gravity filling Conveyor belt
Normal temperature
Adjustable Specifications of Bottle Type Size of Barrel : ф276×490mm
Customers need to buy additional change-over parts for the different bottles.
If using square bottles, then bottle separating system will be added.
Container Label Sticker Label / Shrink Wrap Label / Prinetr Label
User Ambient Conditions Temperature:10~40℃;Humidity:No dew
User Electrical Supply Specification Voltage:380V±5%, 3phase; Frequency:50HZ±1%


Detailed Images

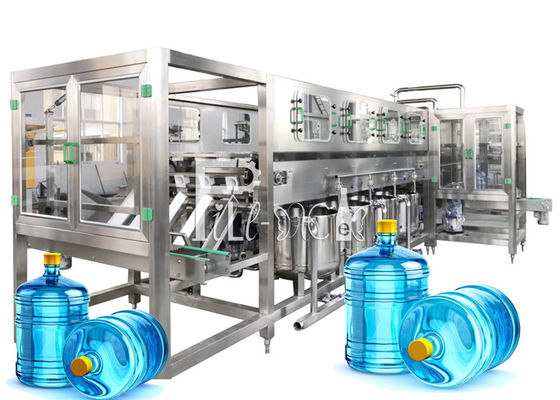

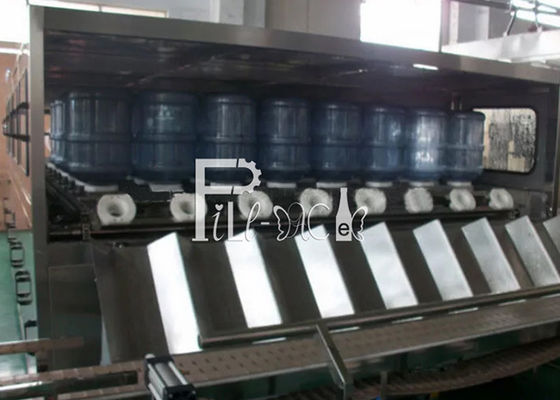

1200BPH Mineral Water Bottling Machine 01200BPH Mineral Water Bottling Machine 1

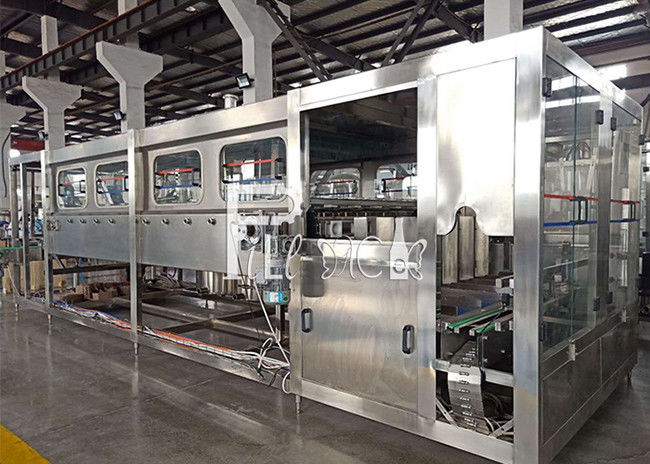

1200BPH Mineral Water Bottling Machine 2
