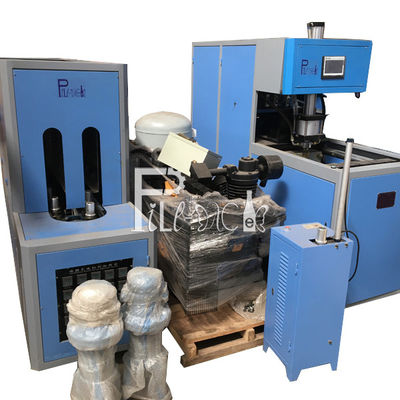

80BPH PET Stretch Blow Molding Machine

Minimum Order Quantity : 1 set Price : 9600USD
Packaging Details : Wooden Case Package Delivery Time : 15-20days after deposit receipt
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 20 sets/month
Place of Origin: China,JiangSu,Zhangjiagang Brand Name: FillPack
Certification: CE. ISO9001 Model Number: FP-120

Detail Information

Condition:: New Material:: Stainless Steel
Free Service:: Bottle Drawing Core Components:: Pump, PLC, Engine
Actual Output: 60-80PCS/H Volume: 20L
Condition: New Warranty: 1 Year
High Light:

80BPH pet stretch blow forming machine

,

80BPH pet bottle manufacturing machine

Product Description

Stretch PET 5 gallon bucket blowing machine with air compressor



5 gallon bucket blowing machine Features:
1. Steady infrared heating system blowing and highly precise blow-mould closing system ensure quality.
2. Independent Temperature Control for different heating lamp to get ideal preform heating results.
3. Advanced PLC control system with a use-friendly panel and time-control precision of PLC up to 0.01second
4. Heating lamps are adjustable in directions to suit various preforms.
5. Equipped with special designed air storage unit
6. Operated only by one person without special training.
7. Low investment, easy and safe to operate .
8. Waste rate of finished bottle is less than 0.1%



5 gallon bucket blowing machine Main Parameter:

Technique Parameter
Product material
PET
Volume
20L
Actual output
60-80PCS/H
Preform length
15mm-460mm
Preform inner diameter
φ5mm-200mm
Max.mould plate Dimenstion(L x W)
420x500mm
Max.mould thickness
400mm
Clamping force
330KN
Mould opening stroke
380mm
Main machine (L x W x H)
218*77*196cm
Main machine weight
1000Kg
Heater (L x W x H)
237*68*165cm
Heater weight
380Kg
Power
40kw

80BPH PET Stretch Blow Molding Machine 0
