5 Gallon Mineral Water Bottling Machine

Product Details:
Place of Origin: ZhangJiaGang JiangSu China
Brand Name: FILL PACK
Certification: CE, ISO9001
Model Number: QGF-450
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD $6000-$8000/set
Packaging Details: wooden case
Delivery Time: 15-20 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 sets/month

Detail Information

Bottle Volume: 3 Gallon-5 Gallon Capacity: 450bottles Per Hour
Type: Filling Machine After-sales Service Provided: Overseas Service Center Available
Dimension(L*W*H): 3600*2000*1800mm Processing Types: Normal Pressure Filling
Condition: New Warranty: 1 Year
High Light:

3 in 1 450BPH Gallon Filling Line

,

450BPH mineral water making machine

,

450BPH auto water filling machine

Product Description

Description of Automatic 3 in 1 type 5 Gallon bottle filling line for Mineral Water



1. Full-automatic PLC control, full-automatic working, filling level, filling time adjustable.
2. Food Class 304 or 316L stainless steel contact parts.
3. All 304 stainless steel construction.
4. Food Class PVC, 304S. S. Or 316L S. S. Pipeline, depends on the models.
5. Full-automatic PLC control, filling level, filling time adjustable.
6. 2 to 12 internal bottles or external bottle washing stops with circular hot. Alkali, detergent, ozone, tap, pure water, depends on the models.
7. Linear cylinder-pushed filling style, supper high precision, ( when the capacity up to 800BPH, adopt the rotary filling system ).
8. Automatic cylinder-pushed capper system.
9. Automatic cylinder-pushed empty bottles loading system to load the empty to the Washer Filler Capper full-automatically.

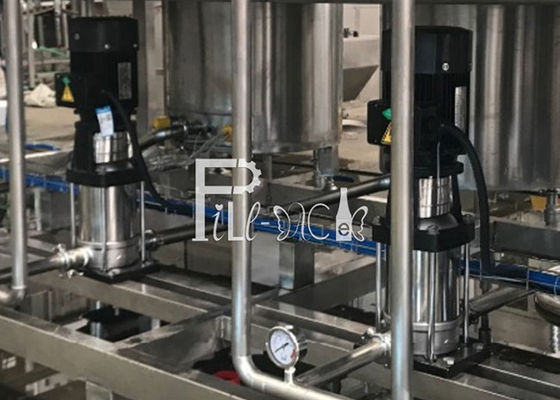

10. Food Class stainless steel washing pumps and filling pumps.
11. Food Class Fiber Glass clear windows.
12. No bottle no washing, no bottles no filling, no bottle no capping.



Equipment list of 5 Gallon bottle filling line:

1.1 Automatic De-capper BG-1 600*600*2000 1set
1.2 Rotary external washer RXT-3 1800*1550*1750 1set
1.3 L type Washer/Filler/Capper with auto bottle loading WFC-450H 4600*2000*1800 1set
1.4 Heat Shrinking Machine / 800*600*1200 1set
1.5 Checking Light CL-1 1000*100*450 1pc
1.6 Conveyor Belt with Motor / 10m+2 motors 1set
1.7 Code printer OH-338 / 1set

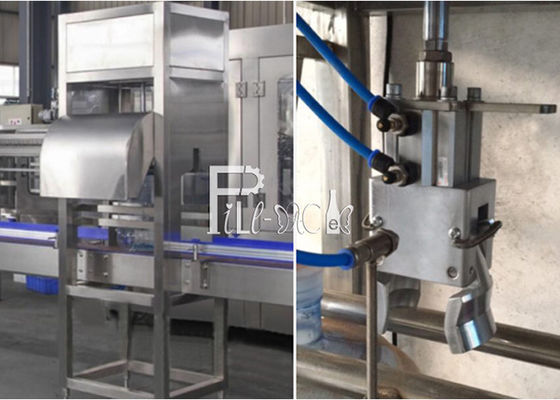

1, Automatic De-capper:

With two de-capping heads
2, Rotary external washer

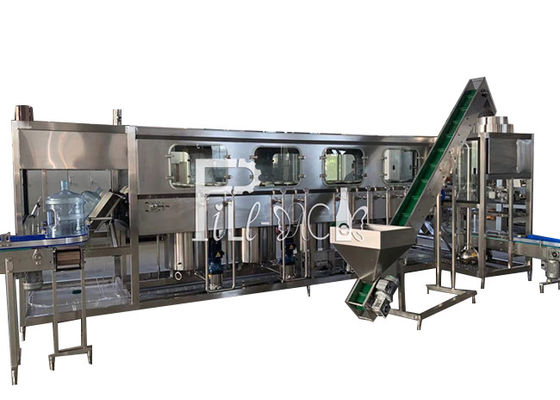

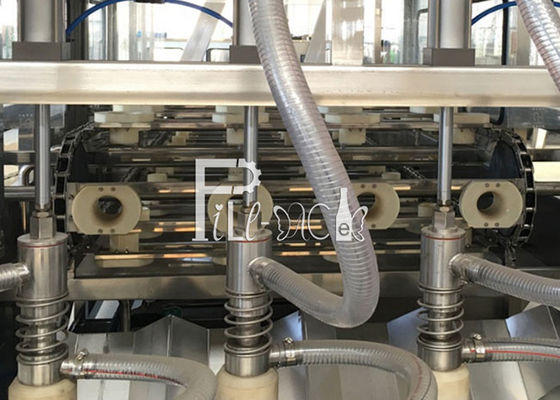

3, Monoblock gallon rinser-filler-capper

Parameters of 5 Gallon bottle filling line:

Material: SUS304

Power: 5KW

Dimension: 3600*2000*1800mm

Weight: 800kg



4, Steam shrink Machine
5, Ink jet code printer

Featrues of 5 Gallon bottle filling line

1) It has indicator light for Photoelectric sensor, synchronizer and inkjet printing to show whether they are working normally.

2) Flash spray. Nozzle will not be blocked even standby for a long time.

3) Tt can be entered graphic of arbitrary length, instead of fixed graphic .

4) The machine can be directly edited printing information without computer. It has humanized design and fool type operation.

5) It has USB ports, which allows to access designed trademark from computer.

6) The two circuits for feeding ink are merged, which saves installation space of the equipment.

5 Gallon Mineral Water Bottling Machine 0

5 Gallon Mineral Water Bottling Machine 1
