Monoblock Gallon Filling Machine

Minimum Order Quantity : 1 set/pcs Price : USD$95,000.00-USD$100,000.00
Packaging Details : Wooden case pacakge Delivery Time : 30-35days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 5 sets/month
Place of Origin: ZhangJiaGang City, JiangSu Province, China Brand Name: FILL PACK
Certification: CE,ISO Model Number: QGF-1500

Detail Information

Application: Food, Beverage Driven Type: Electric
Capacity: 1500bph Video Outgoing-inspection: Provided
Voltage: 380V/50HZ Warranty: 1 Year
Condition: New Conveyor Mode: Conveyor Belt
High Light:

Monoblock Gallon Bottling Machine


1500BPH mineral water filling machine

Product Description

QGF-1500 Monoblock Gallon Bottling Machine With Label Shrink Tunnel


Brief of Gallon Bottling Machine​:

The machine is integrated with rinsing, filling and capping together;
The bottle enters into the rinsing part of three-in-one machine through air conveyor. The gripper installed on the rotary disk catches bottle and turns it over 180 degrees and makes the bottleneck face ground. In the special rinsing area, the nozzle on the gripper sprays water to rinse bottle in wall.


Main Features of Gallon Bottling Machine​:

1 . Washing,filling,capping can be carried out on the same machine. The design of the machine is scientific and reasonable.
2 . The water filling machine appearance is beautiful and the function is complete. The operation and maintenance is convenient.
3 . The water filling machine adopts advanced technology and normal pressure filling valves, with high filling precision.The speed of filling is fast and the liquid amount is controlled accurately,with same filling level.
4 . The water filling machine filling device can be stopped automatically whne there is no bottle or bottles are damaged.
5 . Pneumatic value and damped gears are used for bottle conveying, the noise is low and the whole machine runs smoothly.
6 . The magnetic torque is used for screw capping.The power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed. The caps can not be damaged, the capping is reliable.


Containers and Specifications

Project Name: Mineral Water /
Automatic Gallon Bottling Machine with 1500BPH for Mineral Drinking Water Pure Water
Material Shape Filling volume Filling Type Conveyor Mode
PC / PET Round or Square 3 - 5 Gallon Gravity filling Conveyor belt
Normal temperature
Adjustable Specifications Of Bottle Type Size of Barrel : ф270×490mm
Customers need to buy additional change-over parts for the different bottles.
If using square bottles, then bottle separating system will be added.
Container Label Sticker Label / Shrink Wrap Label / Prinetr Label
User Ambient Conditions Temperature:10~40℃;Humidity:No dew
User Electrical Supply Specification Voltage:380V±5%, 3phase; Frequency:50HZ±1%

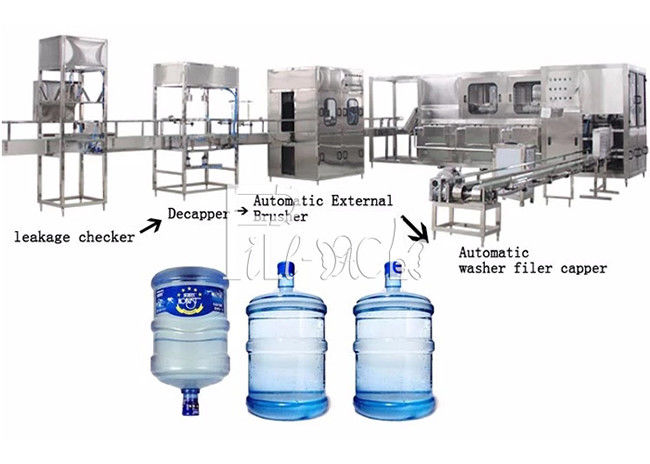

We can also provide whole bottling water production line :
1. Water treatment system purify water (Sand filter,carbon filter,RO/UF ,Ozone sterilizer,UV sterilizer and etc.)
2. Bottle rinser filler capper monoblock
3. Cap loader load caps
4. Code printer (Ink-jet printer/ laser-jet printer)
5. Labeling machine ( PVC sleelve labeling machine /OPP hot melt glue labeling machine/Self-adheisive labeling machine )
6. End packaging ( PE shrink wrapping machine / Carton packing machine )
7. Palletizer


Label Shrink Tunnel:

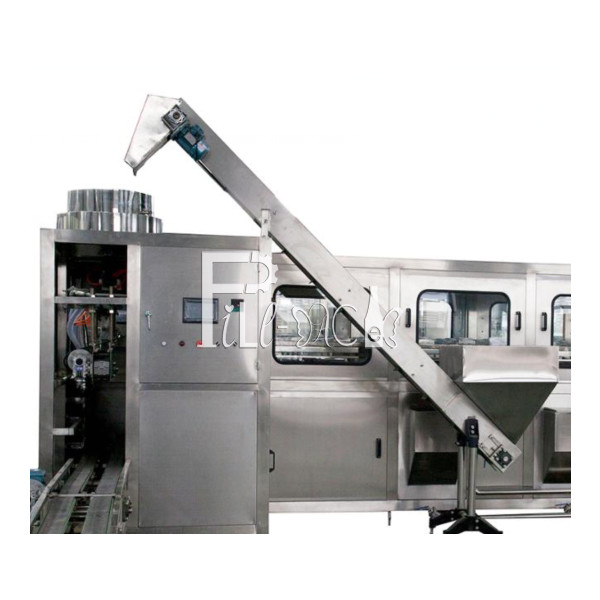

Monoblock Gallon Filling Machine 0


Unloading conveyor

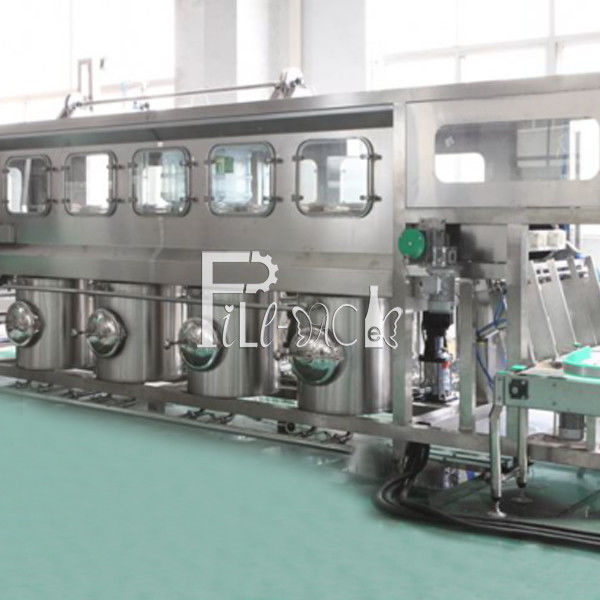

Monoblock Gallon Filling Machine 1
