600BPH 20 Liter Jar Filling Machine

Product Details:
Place of Origin: ZhangJiaGang JiangSu China
Brand Name: FILL PACK
Certification: CE, ISO9001
Model Number: QGF600
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD $18,000-$20,000/set
Packaging Details: wooden case
Delivery Time: 15-20 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5 sets/month

Detail Information

Bottle Size: 10~20 L PET Bottle Product Name: Liquid Filling Machi
Function: Washing Filling Capping Dimension(L*W*H): 5000*2300*1800mm
Keywords: Drinking Water Production Plant Condition: New
Warranty: 1 Year
High Light:

20 liter jar filling equipment


19 liter jar filling machine


600BPH water jar filling machine

Product Description

Description of Complete 19 / 20 liter Gallon bucket water bottling line for 600BPH


This whole Gallon bucket water bottling line is made of excellent stainless steel with the advantage of easily-operating. The main electrical elements adopt the products with brands of SIEMENS and OMRON. Pneumatic elements adopt the products with brand of AIRTAC. The machine works reliably and efficiently based on the compact structure and high automatic technology. It is the fully automatic barreled water producing equipment combined with electronic and pneumatic components.


Containers and Specifications
Project Name:
Full Automatic Complete 600BPH 3-5 Gallon Barrel Filling Production Line
Mineral Water /
Pure Water
Filling volume
Filling Type
Conveyor Mode
Round or Square
3 - 5 Gallon
Gravity filling
Normal temperature
Conveyor belt
Adjustable Specifications
Bottle Type
Size of Barrel : ф276×490mm
Customers need to buy additional change-over parts for the different bottles.
If using square bottles, then bottle separating system will be added.
Container Label
Sticker Label / Shrink Wrap Label / Prinetr Label
User Ambient Conditions
Temperature:10~40℃;Humidity:No dew
User Electrical Supply Specification
Voltage:380V±5%, 3phase; Frequency:50HZ±1%


1, Automatic De-capper:
De-capping head: 2 heads
Dimension: 900*600*2000mm
Weight: 130kg


2, Rotary external washer

Dimension: 1800*1550*1750mm

Weight: 800kg

Power: pump 0.37+motors 0.75*2+transfer motor 1.1=2.97KW

Recycle water tank size: 600*550*550mm


3, Monoblock gallon rinser-filler-capper

Material: SUS304


Dimension: 5000*2300*1800mm

Weight: 1000kg

4, Steam shrink Machine

5, Ink jet code printer

1) The number of lines: one to fifteen lines of English Numbers or one to eight lines of Chinese characters can be printed, and the size of the word can be adjusted. This system is dual-purpose.

2) Character height: 1 mm ~ 12.7 mm high word font can be printed

3) Inkjet print distance: nozzle to printing objects 5-10 mm

4) Automatic inkjet printing: date, time, batch number, class and serial number, etc

5) Storage information: 100 messages, 100 graphics can be stored.


6, Automatic cap lifter-washer


Model: TSJ-1200

Speed: 20-50 pcs/min

Material: SUS304

Motor power: 0.37kw

Dimension: 800*800*3000

Weight: 130kg


Detailed pictures of Gallon bucket water bottling line

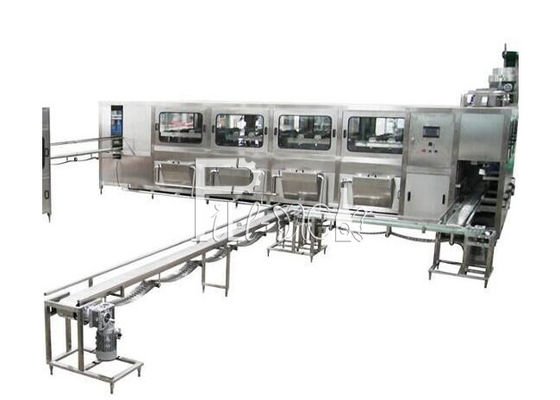

Automatic De-capper and Rotary external washer:

600BPH 20 Liter Jar Filling Machine 0

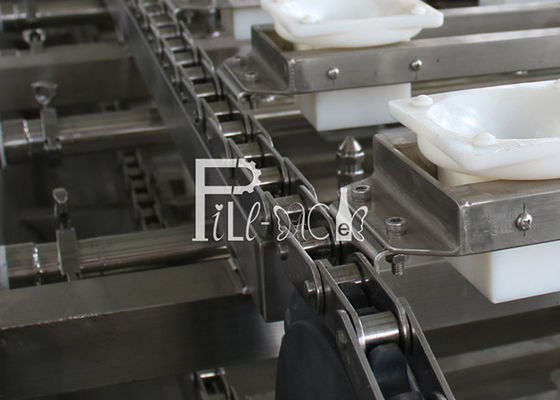

The gallon bottle pushing device:

600BPH 20 Liter Jar Filling Machine 1

After-sales service:
1) After qualified of the equipment, we will supply one year guarantee, control system one year guarantee, free charge for wearing parts, and other spare parts with cost price. Within guarantee period, the technicians who accepted training should strictly obey the requirements asked by the seller to operate the equipments and maintenance, to find the common malfunctions and fault clearing in time; if the technicians of the buyer couldn't solve the problems themselves, the after-sales department will supply long range guide service by phone; if relevant measurements couldn't solve the problems, the seller will send the technicians to the buyer factory, clear the fault or relevant technical problems on site, the charges will reference to the installation and debugging charges.
2) After guaranteed, we will supply widely favorable technical support, after-sales service for the lifetime: favorable price for the wearing parts and other spare parts.
