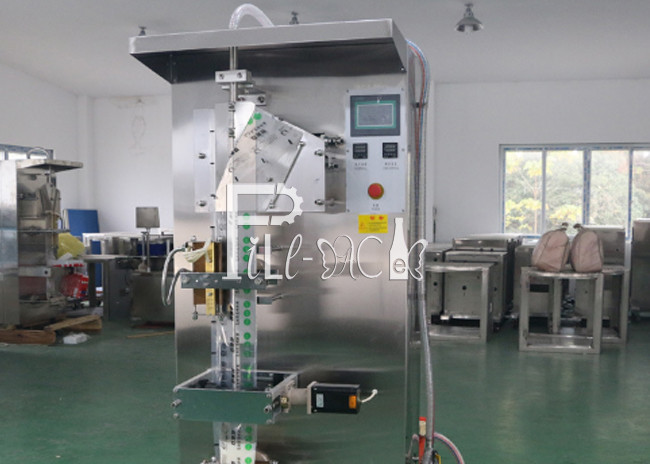

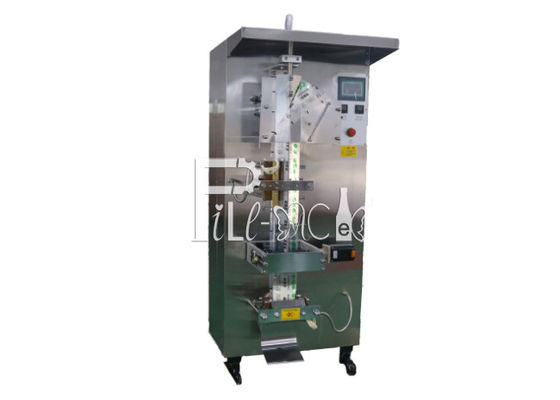

Composite Film Sachet Liquid Filling Machine

Minimum Order Quantity : 1 set Price : 1900USD
Packaging Details : Wooden Case Package Delivery Time : 15-20days after deposit receipt
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 20 sets/month
Place of Origin: China,JiangSu,Zhangjiagang Brand Name: FillPack
Certification: 500B Model Number: FP-120

Detail Information

Usage:: Packaging Liquid Weight:: 300kg
Power:: 2.1KW Driven Type:: Electric
Packing Speed (bags/h): 1100-1300 Weight (kg): 370
Condition: New Warranty: 1 Year
High Light:

1300 BPH Sachet Liquid Filling Machine

,

1100BPH water pouch making machine

Product Description

Composite film pouch water packaging machine for 1100-1300 bags per hour



Pouch water packaging machine description:

The liquid packaging machine is an automated multi-functional packaging machine for the packaging of liquid materials. As a result of the use of vertical automatic bag, filling, heat sealing process. As the machine uses a vertical film bag automatic molding process, according to a variety of different types of bags, the use of three sides sealed, sealed on both sides of the seal and the closure of the way. Suitable for a variety of beverages, liquid seasonings and low viscosity grease and other fluid materials, automatic packaging.



Pouch water packaging machine Features and function :

1. Film bag automatic molding
2. UV sterilization
3. Automatic longitudinal sealing
4. Automatic marking function
5. Automatic bag automatic traction
6. Adjustable quantitative filling
7. Automatic transverse heat sealing
8. Automatically cut bags and provide a variety of incision options
9. Automatic counting function

10. Low viscosity fluid material circulation system



Pouch water packaging machine Technical parameter:

Model 500B1 1000B1 2000B1
Bag length (mm) 50-150 50-250 100-400
Bag width (mm) 65-150 65-175 65-210
Packaging film width (mm) 150-320 150-380 150-450
Package volume (ml) 0-500 0-1000 0-2000
Packing speed (bags/h) 1100-1300 1100-1300 800-1000
Power (kw) 2.1 2.5 2.5
External dimensions (mm) 1050*850*2050 1050*850*2050 1200*850*2050
Weight (kg) 370 380 460
