Product Details:
|
|
| Place of Origin: | ZhangJiaGang City, JiangSu Province, China |
|---|---|
| Brand Name: | FILLPACK |
| Certification: | CE,ISO |
| Model Number: | QGF-200 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set/pcs |
| Price: | USD$4,850.00-USD$6,000.00 |
| Packaging Details: | Wooden case pacakge |
| Delivery Time: | 30-35days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 sets/month |
|
Detail Information |
|||
| Voltage: | 380V 50HZ 3P Or Customized | Automatic Grade: | Automatic |
|---|---|---|---|
| Type: | Filling Machine | Capacity: | 200 BPH |
| Function: | 5 Gallon 20 Liter Water Filling Plant Machinery | Filling Accuracy: | 99.8% |
| Condition: | New | Warranty: | 1 Year |
| Highlight: | ISO 5 gallon filling machine,200BPH automatic water bottling machine |
||
Product Description

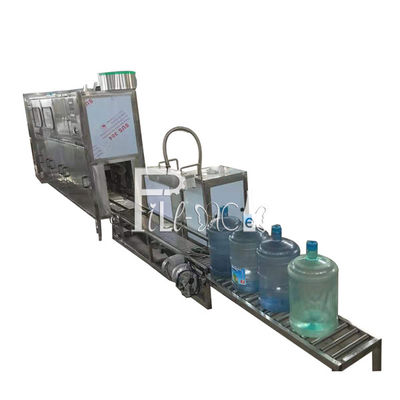

Complete 5 Gallon Water Production Line With The Speed 200BPH
Gallon Water Production Line:
BS-1 De-capping gallon bottle washer⇒Automatic bottle washer filler capper⇒light checking⇒Label shrink tunnel⇒Solid Ink Roll Coding Machine
Features of Gallon Water Production Line
1. Full-automatic PLC control, full-automatic working, filling level, filling time adjustable.
2. Food Class 304 or 316L stainless steel contact parts.
3. All 304 stainless steel construction.
4. Automatic cylinder-pushed capper system.
5. Automatic cylinder-pushed empty bottles loading system to load the empty to the Washer Filler Capper full-automatically.
6. Food Class stainless steel washing pumps and filling pumps.
7. Food Class Fiber Glass clear windows.
8. No bottle no washing, no bottles no filling, no bottle no capping.
9. Available model of our 5 gallon filling machine ( washer filler capper )
Equipment list:
| 1.1 | Semi-auto de-capper and brush washer with full SUS304 | BS-1 | 900*900*1250 | 1set |

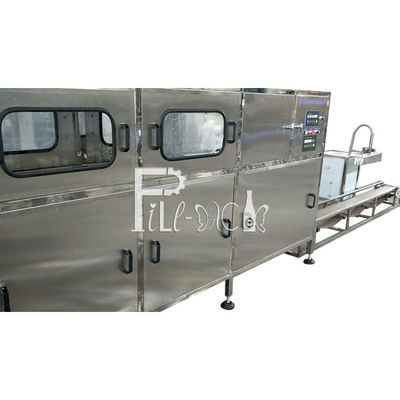

| 1.2 | Monoblock rinser-filler-capper with full SUS304 | QGF-200 | 3400*780*1950 | 1set |
| 1.3 | Light checker | / | / | 1pc |
| 1.4 | Roller conveyor | / | / | 2m |
| 1.5 | Label shrink tunnel | / | 600*600*1000 | 1set |
| 1.6 | Solid Ink Roll Coding Machine | FP-380F | 440*345*300 | 1set |

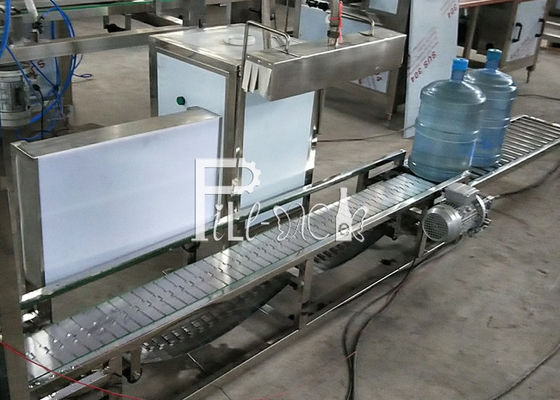

The end conveyor: transport the gallon bottles to shrink sleeve tunnel after cappering automatically.
light checker of Gallon Water Production Line
