450BPH 5 Gallon Bottle Washing Machine

Minimum Order Quantity : 1 Price : USD $700/set
Packaging Details : Wooden Case Package Delivery Time : 15-20days after deposit receipt
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 10 set / month
Place of Origin: China,JiangSu,Zhangjiagang Brand Name: FillPack
Certification: CE. ISO9001 Model Number: S450

Detail Information

Name: 5 Gallon Bottle Washing Machine Type: Linear Type
Material: SUS304 Core Components: Motor, Pump, Bearing
Capacity: 450 Bottles Per Hour Condition: New
Barrel Size: 3-5 Gallon Warranty: 1 Year
High Light:

SUS304 5 gallon bucket washer

,

450BPH 5 Gallon Bottle Washer

Product Description

Description of Linear type gallon washing machine / equipment for outer brush

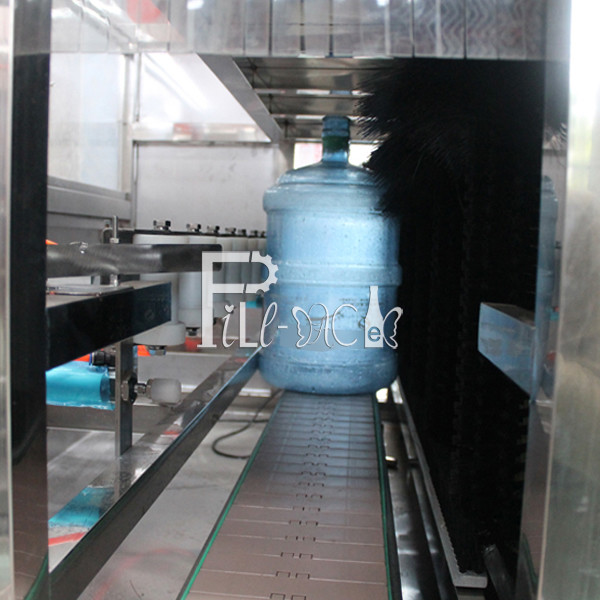

  Automatic Linear type gallon washing machine was used for brushing the 5 gallon bottle outside, the machine was used for used bottle mainly. The brush washing progress is automatic. The square external brush of the external barrel-washing machine consists

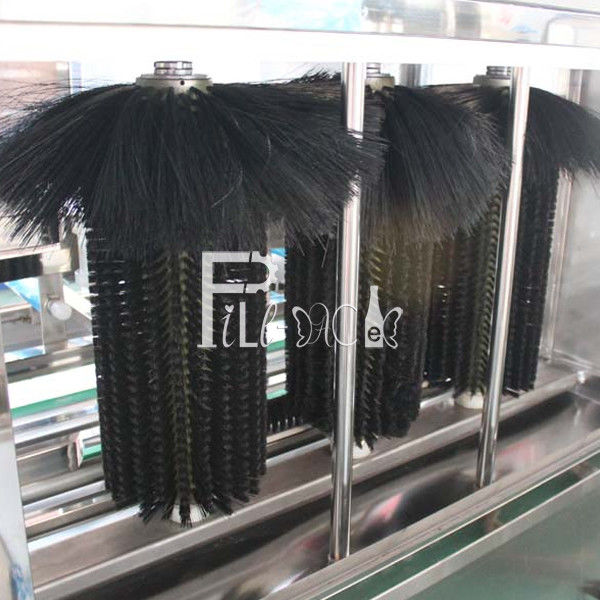

of three parts. the first part is a barrel-washing opening which is specially designed, cleaning dust, dirt and stain. the second part is made up of special brushes in the shaped of a barrel. washing the barrel body thoroughly. It will remove the stain but will not damage the barrel and printed pattern on the barrel, the third part is made up of special brushes on the bottom of the barrel. It can not only wash barrel with flat barrel,



but also barrel with sunken bottom. During the process of cleaning. with the aid of detergent, it can clean the stain completely. On the outlet for barrel, the clean water spraying system will wash away the detergent. The whole machine has employed an enclosed design, with high reliability and good stability.



Main Technical parameter of Linear type gallon washing machine:

Capacity
450 bottles /hour
Automatic grade Full Automatic
Structure Linear
Barrel size 3-5 gallon
Air pressure 0.2Mpa
Water consumption 0.5 t/h
Power 1.1KW
Weight
260kg

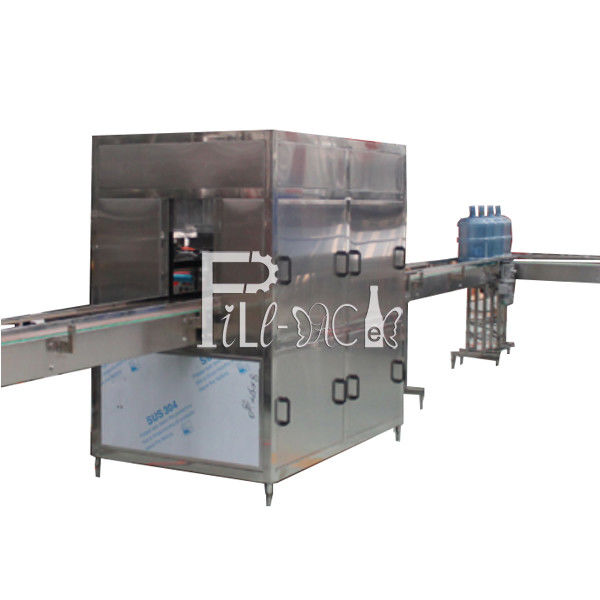

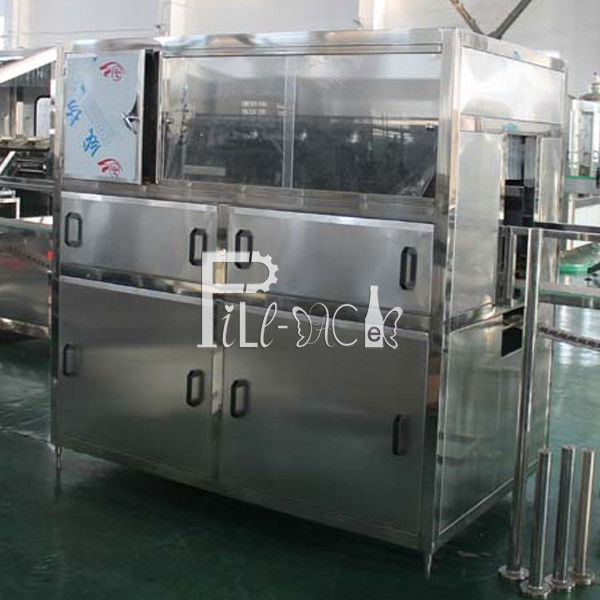

450BPH 5 Gallon Bottle Washing Machine 0

450BPH 5 Gallon Bottle Washing Machine 1

450BPH 5 Gallon Bottle Washing Machine 2



FAQ
1. Q: Are you a factory or a trading company?
A: We are a factory that produces a complete set of raw water treatment equipment and juice filling production lines. Our Customers in nearly 20 countries have used our equipment.
2. Q: Where is your factory? How do I get there?
A: The address of our company is Leyu Town, Zhangjiagang City, Jiangsu Province. It is about one and a half hours drive from Shanghai Hongqiao Airport and 40 minutes from Wuxi High Speed Rail. Welcome Chinese and foreign customers to visit our company.
3. Q: How long is the warranty period of your machine?
A: After the device is accepted, it provides a 12-month warranty, the control system provides a 12-month warranty, free accessories and timely and effective service. After the warranty period, provide extensive technical support and lifetime after-sales service.
4. Q: What are the characteristics of your company?
A: We provide turnkey projects for our customers, including pre-sales and after-sales services, providing complete production lines, designing bottle samples, providing layout drawings free of charge, providing auxiliary material supply information, machine installation and commissioning, and employee training.
