900*800*1200mm 18.9L Barrel Bottle Rinsing Machine

Minimum Order Quantity : 1 Price : USD $700/set
Packaging Details : Wooden Case Package Delivery Time : 15-20days after deposit receipt
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 10 set / month
Place of Origin: China,JiangSu,Zhangjiagang Brand Name: FillPack
Certification: CE. ISO9001 Model Number: S-1

Detail Information

Name: 5 Gallon Bottle Washing Machine Weight: 110kg
Processing Types: 3 GALLON, 5 GALLON BARREL Dimension: 900*800*1200mm
Capacity: 150-280BPH Usage: Water Cleaning Equipment
Condition: New
High Light:

18.9L Barrel bottle rinsing machine


20L Barrel bottle rinsing equipment


18.9L Barrel bottle rinsing equipment

Product Description

Description of Barrel bottle rinsing machine / equipment for 18.9 / 20L bottle


BS-1 type Barrel bottle rinsing machine is mainly used for barreled mineral water and pure water line. It needs to push the barrels above with manual help. This machine has the advantages of stable capacity, good brushing effect, easy operation, easy maintenance and nice appearance. The material is made of high quality of stainless steel. The machine has long lifespan and is really with good quality and economic price.


Working process of the Barrel bottle rinsing machine:

When get through the power and air source, manual put the gallon bottle upside down into the cap puller part, like the photo, then open the machine switch, manual feet tread the switch under the floor, then the gallon cap will be remove and slip from the cap hole on the right side. Then manual put the gallon bottle upside down into the machine, click the “operation” button to have the automatically inside and outside of brushing, after a while, close the switch and take out the gallon bottle, then it’s finished. The brushing time depends on the gallon bottle state.


Main Technical parameter of the Barrel bottle rinsing machine:

Model S-1
Capacity 200-300 barrels / hour
Automatic type Semi auto
Washing head 1 head
Brusher 8 pieces
Suitable bottle 3 or 5 gallon
Motor power 1.1KW
Dimension 800*800*1200mm
Weight 110kg

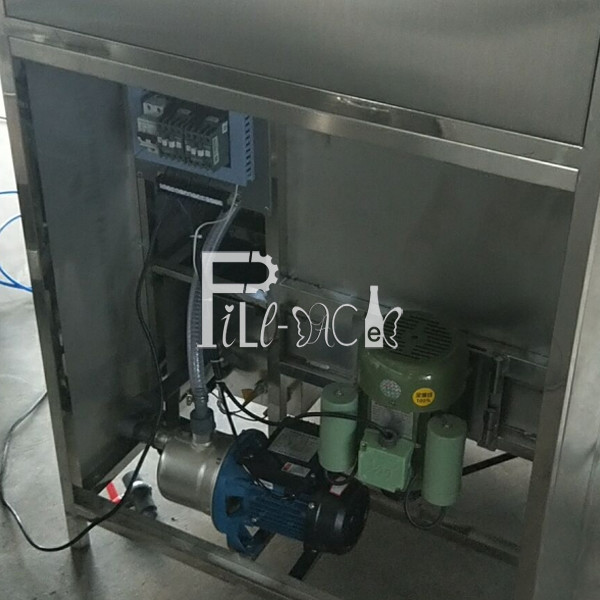

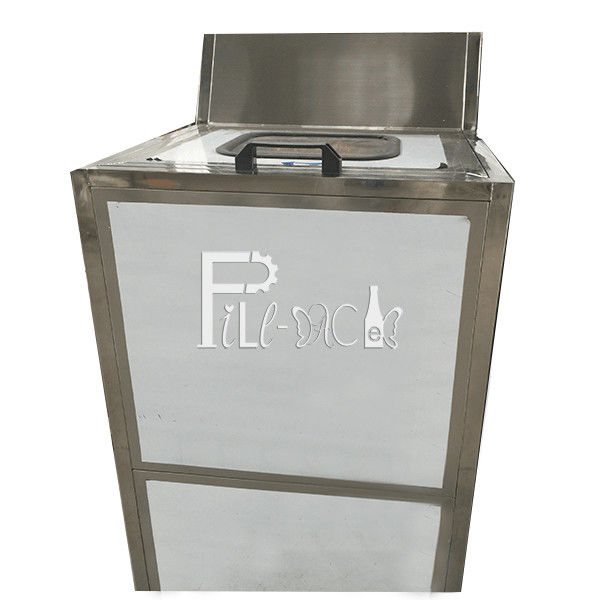

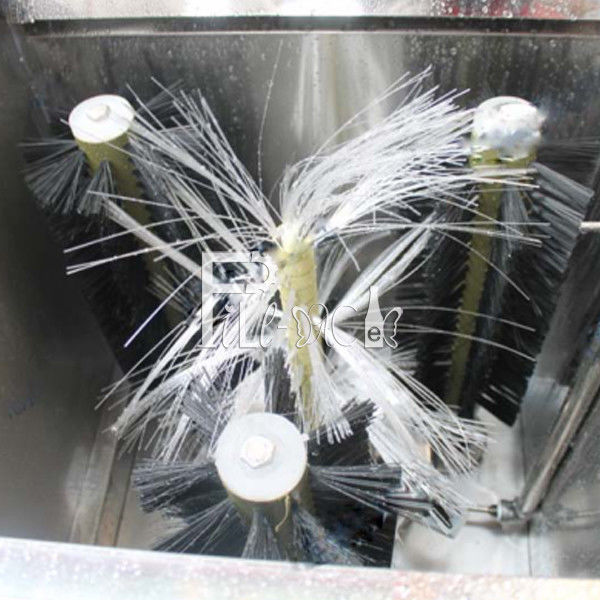

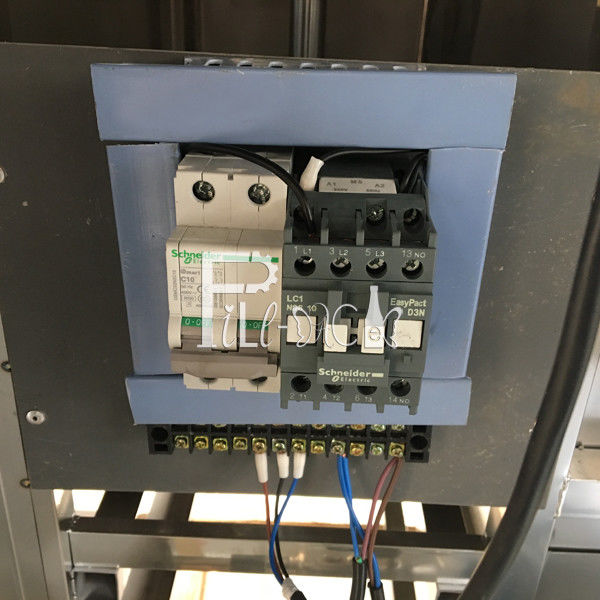

The details of the Barrel bottle rinsing machine:

900*800*1200mm 18.9L Barrel Bottle Rinsing Machine 0

Payment terms and installation

1. Delivery time: 10-20 working days after the receipt of deposit from buyer.

2. Voltage and frequency: 380V/50Hz, or 220V/60HZ, 3phase, 4 wires

3. Payment: 30% of total value will be paid by T/T as deposit, 70% balance will T/T before shipment.

4. Installation: Before shipment, machines will be tested by our technicians to make sure they can work well. Our technicians will be sent to user’s factory to install the machines and train workers. The buyer will pay for our technicians’ return tickets, meals, accommodation and the salary for 100 USD per day.



1.The supplier will warrant for 12 months after the acceptance of the equipment, and will warrant for 12months for the control system. When there are faults with the equipment, the supplier will communicate with the buyer to remedy the trouble in time when informed;

2.When warranty time is past, the supplier will supply broad and favorable technical support and after service for life.

Packing and transport

The package adopts export special wooden case; it is suitable for long distance transport, damp proofing, and rust prevention, shockproof and so on. And also it suitable for sea, land transport and entirety lifting.
