300BPH Pure Water 2 Heads ISO 5 Gallon Bottle Washer
Contact Person : Alice Gu
Phone Number : 86-13862320828
WhatsApp : +8615862615333
| Minimum Order Quantity : | 1 | Price : | USD $700/set |
|---|---|---|---|
| Packaging Details : | Wooden Case Package | Delivery Time : | 15-20days after deposit receipt |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 10 set / month |
| Place of Origin: | China,JiangSu,Zhangjiagang | Brand Name: | FillPack |
|---|---|---|---|
| Certification: | CE. ISO9001 | Model Number: | BS-2 |
|
Detail Information |
|||
| Name: | 5 Gallon Double Water Jar Washing Machine | Weight: | 150kg |
|---|---|---|---|
| Dimension: | 1300*800*1100MM | Capacity: | 300-400bottle / Hour |
| Type: | Double Washing Heads | Brush Washing: | Outside And Inside |
| Condition: | New | Model: | BS-2 |
| High Light: | 400BPH 5 Gallon Bottle Washer,400BPH Barrel Bottle Washing Equipment,400BPH 5 Gallon Bottle Washing Machine |
||
Product Description

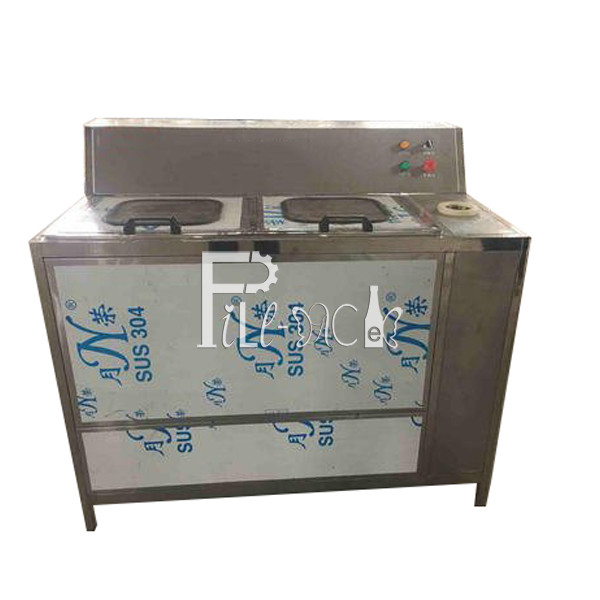

Description of Manual control 5 gallon bottle double barrel washer with decapping
Product features of BS-2 type 5 gallon bottle double barrel washer:
1. Save time, save labor, save electricity.
2. Water supply mode. Users can reasonably choose circulating water supply, non-circulating water supply and compound water supply modes according to their needs.

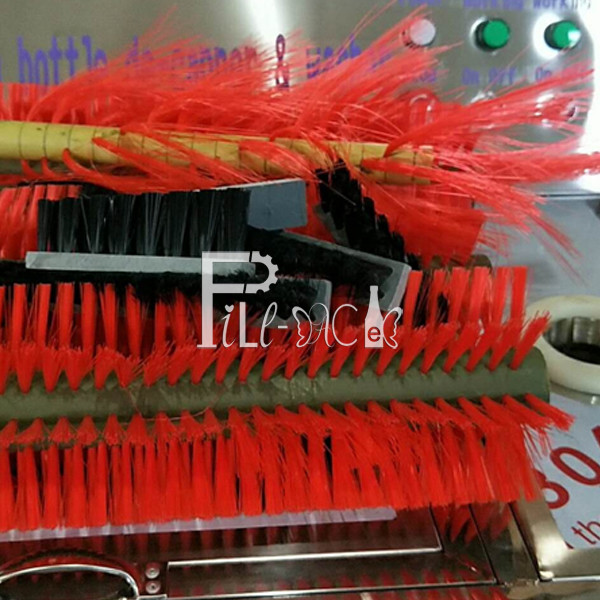

3. Good cleaning effect, both inside and outside wall effective washing.
4. simple operation, only a door, close the operation, you can complete the whole cleaning process.
5. Brushing machine is suitable for 3 gallon and 5 gallon whshing machine.
6. We Can make different electrical voltage, frequency to the customer's requires.
Main Technical parameter of 5 gallon bottle double barrel washer:
|
Model
|
BS-2
|
|
Washing capacity
|
300-400bottle / hour
|
|
Head
|
double
|
|
brush washing
|
outside and inside
|
|
Weight
|
150kg
|
Lid remove port is specially for removing 5 gallon bucket lid.
It is controlled by pedal mechanical valve. It only need connect a air compressor, and the lid can be reused. Simple operation,
good performance, less damage and small deformation
lid remove operational specification:
a. It suits for Φ56 standard bottle,the highest speed is about 200-300 pieces/h
b. Open the power switch, the pump switch indicator light, brush bucket began to spray water.
c. Open the working switch, the drive brush indicator light, brush starts drive.
d. Put the bucket without lid in the washing sink. Bucket port is aligned with the center axis and close the wash sink cover.
e. Put the bucket at a clean place after cleaned.
Maintenance of 5 gallon bottle double barrel washer
1) Check the cleanliness of the lid remove port and the link screw between the head and the cylinder.
2) The use of the process, such as the individual lid can not be pulled out, it maybe the size of the bucket neck is unusual,and
pay attention to air pressure.
3) Do not put hand in lid remove port while it is working. To prevent hurting yourself.
4) Close the gas valve while checking the equipment, to prevent hurting person.
5) Pay attention to the pressure of the bucket down when cleaning bucket.
The details of the 5 gallon bottle double barrel washer:
