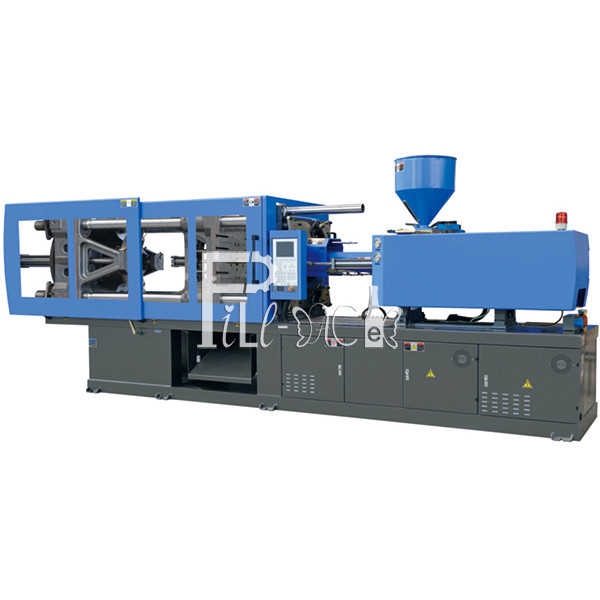

65mm Preform Injection Molding Machine

Features:
A, Injection Unit
•A01) Five Stage Injection Pressure
•A02) Five Stage Injection Speed
•A03) Programmable Holding Pressure profile
•A04) Refilling in Stages for Bucket preform injection machine
•A05) Controller Inbuilt PID Temperature control
•A06) Feed Zone Temperature indication
•A07) Oil temperature indication
•A08) Adjustable such back before and after refilling
•A09) Auto purge break for Bucket preform injection machine
•A10) Linear transducer to control programmable injection position
•A11) Cold start screw prevention
•A12) Sliding Mechanism for hopper
•A13) Gas Nitrated hardened screw and Barrel
•A14) Screw back pressure con troll with pressure relief valve
•A15) Hand Operated Lubrication Unit

B. Clamping Unit
•B01) Five Point twin toggle locking system
•B02) Case Hardened toggle, Brackets and links with hardened PIN & BUSH
•B03) Motorized mould height adjustment for quick mould change
•B04) Auto tonnage setting facility
•B05) Low pressure precise mould protection with pressure and time setting
•B06) Five stage Mould closing for Bucket preform injection machine
•B07) Five stage Mould opening for Bucket preform injection machine
•B08) Hydraulic cushioning for consistent mould opening position
•B09) Linear transducer to control programmable clamp system
•B10) Electrical and hydraulic (Dump value) interlock safety gate
•B11) Moving platen with mechanical support with Teflon
•B12) Hydraulic Ejector with Multi stroke
•B13) Auto lubrication unit


D. Hydraulic
•D01) Compact and Simple design
•D02) Sealing ring imported from Japan, a total four leak-proof protection to prevent the oil leakage.
•D03) Proportional value for pressure and speed
•D04) Variable displacement pump system attached with pulse absorber
•D05) High magnetic closed-loop oil filter to effectively remove debris of the oil, the filtration is up to 10um.
•D06) Easy access to hydraulic elements for ease maintenance





Spare parts list for host inject machine part:
