16MPA Bottle Injection Moulding Machine

Minimum Order Quantity : 1 Price : USD $54050/set
Packaging Details : Wooden Case Package Delivery Time : 35-40 days after deposit receipt
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 1 set / month
Place of Origin: China,JiangSu,Zhangjiagang Brand Name: FillPack
Certification: CE. ISO9001 Model Number: FP-3850

Detail Information

Name: Bottle Injection Moulding Machine Type: Preform Injection
Max. Pump Pressure: 16MPA Warranty: 1 Year
Valve Size: 25mm Ejector Tonnage: 80KN
Weight: 11.5T Condition: New
High Light:

16MPA Preform Injection Molding Machine

,

16MPA bottle injection moulding machine

Product Description

Gallon preform injection molding machine / equipment / device / system / plant with 65 Screw diameter


      Features:

      CLAMPING UNIT

  • New type 5-point toggle device with the advantage of stable movement curve and gentle shock
  • High-quality mold platen with enough intensity to ensure no out of shape if high-pressure clamping
  • Hard chrome plated high tensile strength tie bars made of superior alloy with a good wear and corrosion resistance ability
  • Wear-resistant guide for moving platen for Gallon preform injection molding machine
  • Transducer control clamping stroke for Gallon preform injection molding machine
  • Many step control for speed and pressure of clamping and opening
  • Ejection device offer dwell, single, more, vibration function
  • Differential high speed clamping for Gallon preform injection molding machine
  • Low pressure mold protection function for Gallon preform injection molding machine
  • Hydraulic mold height adjustment drived by gear with rough and fine operation
  • Mechanical and electrical dual safety interlock for Gallon preform injection molding machine
  • Automatic centralized lubrication system with far pressure detector

Inject unit unloading deatils for reference:

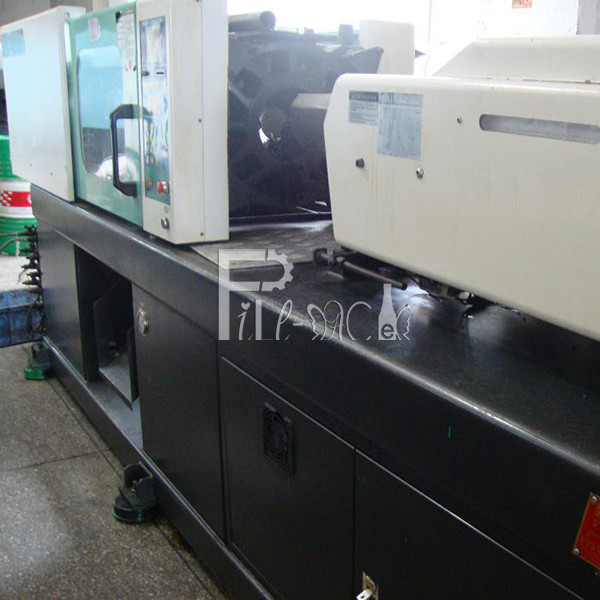

16MPA Bottle Injection Moulding Machine 0



Parameter:



MODEL

3850A
Injection rate g/s 320 340
Screw L/D ratio L/D 22.7 22
Screw speed r.p.m 0-160
CLAMPING
Toggle stroke mm 660
Mould Thickness mm 280-680
Space between tie-bars mm 680X680
Ejector stroke mm 160
OTHERS
Heat power KW 17.5
Max. pump pressure MPa 16
Oil tank capacity L 400




Recommended different preform moulds specifications based on standard gram
Moulds manterial Cavity(Pcs) Gram weight(g) Capacity(pcs/hour)





Option1:P20 outside, Main accessories S136



Option2: SUS 316



1

800



45

750
730
700
680



50

650
620
600
580



55

560
530





2

480





120

430
400
350
320





Spare parts list for host inject machine part:



Item

Free spare parts

Price for additional spare parts/USD

1, Heating band for barrel

1pcs $35
2, Heating band for nozzle 1pcs $26
3, Sealing rings 1sets $25
4, Solid-state relay 1pcs $15
5, Proximity switch 2pcs $12
6, thermocouple 1pcs $12
7, socket head wrench 1sets $16
8, Mold clip 8pcs $180
9, Level pad 1pcs $130
10, Socket & plug 2pcs $17




The matching for recommended auxiliaries devices:

Hopper Dryer Photo
Capacity 100KG 16MPA Bottle Injection Moulding Machine 1
Power for electrical heating 6.5KW
Fan power 215W
Fan flange 150mm
Packing size 1020*630*1080mm
Base installation size 180*180*φ80mm
weight 59KG



Hopper Dryer Photo
Capacity 300KG 16MPA Bottle Injection Moulding Machine 2
Power for electrical heating 15KW
Fan power 320W
Fan flange 190mm
Packing size 1200*880*1770mm
Base installation size 230*230*φ110mm
weight 120KG
