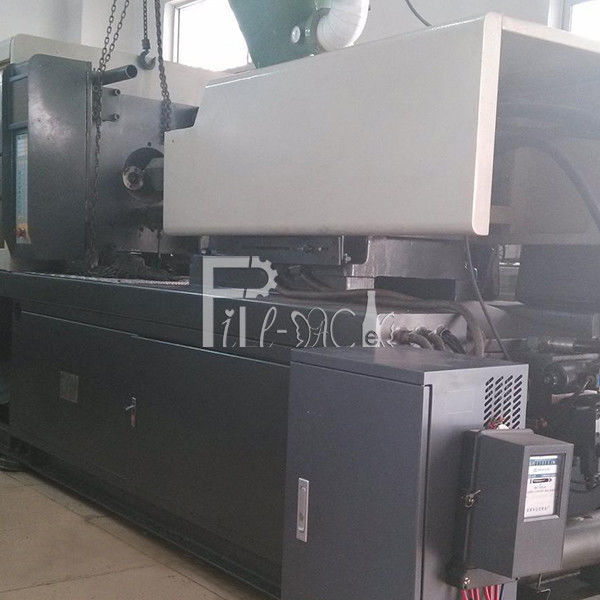

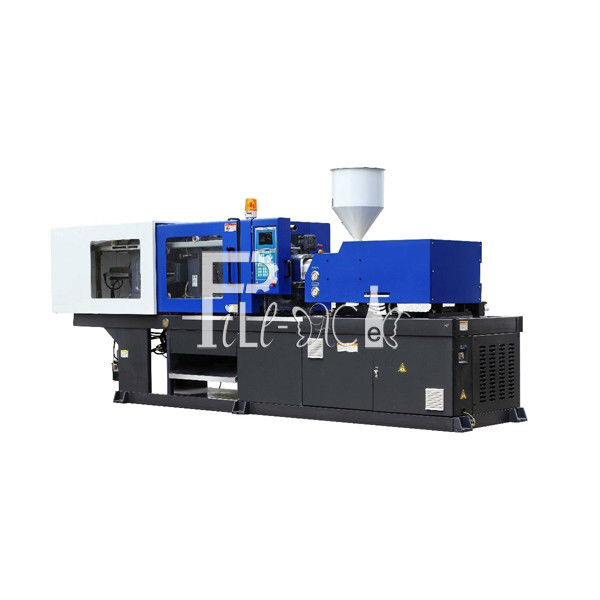

Screw Neck 175 MPA Preform Injection Molding Machine
Contact Person : Alice Gu
Phone Number : 86-13862320828
WhatsApp : +8615862615333
| Minimum Order Quantity : | 1 | Price : | USD $54050/set |
|---|---|---|---|
| Packaging Details : | Wooden Case Package | Delivery Time : | 35-40 days after deposit receipt |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 1 set / month |
| Place of Origin: | China,JiangSu,Zhangjiagang | Brand Name: | FillPack |
|---|---|---|---|
| Certification: | CE. ISO9001 | Model Number: | FP-3850 |
|
Detail Information |
|||
| Shot Weight: | 1072g | Machine Type: | Hydraulic |
|---|---|---|---|
| Screw Speed: | 0-160rpm | Key Selling Points: | High Safety Level |
| Injection Rate: | 320g/s | Mould Thickness: | 280-680mm |
| Condition: | New | ||
| High Light: | 160RPM bottle preform making machine,680mm PET preform injection machine |
||
Product Description
Barrel preform injection molding machine / equipment / device / system / plant with automatic lubricating device
High end controller―quick reaction,system stability:
Process parameters of NC pre setting
Interface of mechanical hand for Barrel preform injection molding machine
Protection Lock of parameter data for Barrel preform injection molding machine
Deviation of barrel temperature self-correction
System oil temperature warning device for Barrel preform injection molding machine
Parameter memory of Multiple sets plastic in the computer
High precise displacement sensor system
Liquid crystal display(LCD) for Barrel preform injection molding machine
2or3Preparatory power plugs for out supply power
Parameter:
|
MODEL |
3850A | ||
| Screw L/D ratio | L/D | 22.7 | 22 |
| Screw speed | r.p.m | 0-160 | |
| Nozzle Diameter | Srmm | 20 | |
| CLAMPING | |||
| Clamp tonnage | KN | 3850 | |
| Ejector stroke | mm | 160 | |
| Ejector tonnage | KN | 80 | |
| Ejector number | Piece | 13 | |
| Hole Diameter | mm | 160 | |
| OTHERS | |||
| Heat power | KW | 17.5 | |
| Max. pump pressure | MPa | 16 | |
| Pump motor power | KW | 30 | |
| Valve Size | mm | 25 | |
| Machine dimension | m | 7.0X2.2X2.0 | |
| Machine weight | t | 11.5 | |
| Oil tank capacity | L | 400 | |
| Recommended different preform moulds specifications based on standard gram | |||
| Moulds manterial | Cavity(Pcs) | Gram weight(g) | Capacity(pcs/hour) |
|
Option1: P20 outside, Main accessories S136
Option2: SUS 316 |
1 |
800 |
45 |
| 750 | |||
| 730 | |||
| 700 | |||
| 680 |
50 |
||
| 650 | |||
| 620 | |||
| 600 | |||
| 580 |
55 |
||
| 560 | |||
| 530 | |||
|
2 |
480 |
120 |
|
| 430 | |||
| 400 | |||
| 350 | |||
| 320 | |||
Spare parts list for host inject machine part:
| Item |
Free spare parts |
Price for additional spare parts/USD |
|
1, Heating band for barrel |
1pcs | $35 |
| 2, Heating band for nozzle | 1pcs | $26 |
| 3, Sealing rings | 1sets | $25 |
| 4, Solid-state relay | 1pcs | $15 |
| 5, Proximity switch | 2pcs | $12 |
| 6, thermocouple | 1pcs | $12 |
| 7, socket head wrench | 1sets | $16 |
| 8, Mold clip | 8pcs | $180 |
| 9, Level pad | 1pcs | $130 |
| 10, Socket & plug | 2pcs | $17 |
The matching for recommended auxiliaries devices:
| Plastic crusher | Photo | |
| Motor power | 20HP(15KW) | |
| Diameter | 610*320mm | |
| Capacity | 600-800KG/H | |
| fixed knife | 2pcs | |
| Moving knife | 18pcs | |
| dimension | 1200*1120*1630mm | |
| Air compressor | Photo | |
| revolutions | 1030 | |
| Power | 7.5KW | |
| Capacity | 0.9L/min | |
| Air storage tank volume | 180L | |
| Pressure | 1.25Mpa | |
| dimension | 1550*550*980mm | |
| Weight | 140KG | |
