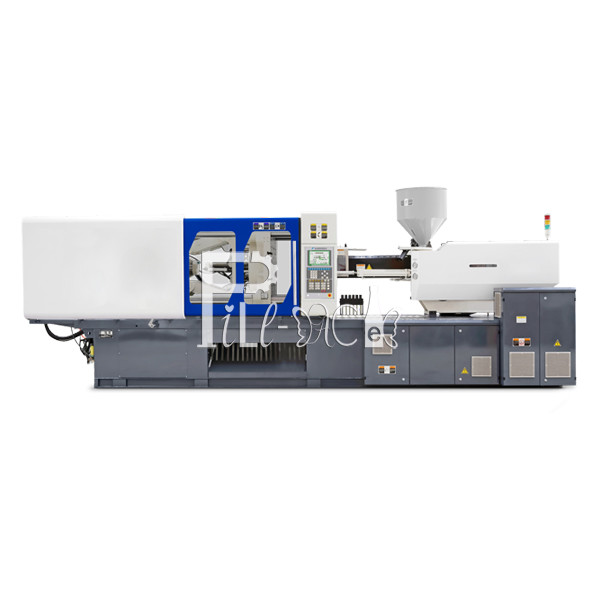

Hydraulic 16MPA PET Bottle Preform Making Machine
Contact Person : Alice Gu
Phone Number : 86-13862320828
WhatsApp : +8615862615333
| Minimum Order Quantity : | 1 | Price : | USD $54050/set |
|---|---|---|---|
| Packaging Details : | Wooden Case Package | Delivery Time : | 35-40 days after deposit receipt |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 1 set / month |
| Place of Origin: | China,JiangSu,Zhangjiagang | Brand Name: | FillPack |
|---|---|---|---|
| Certification: | CE. ISO9001 | Model Number: | FP-3850 |
|
Detail Information |
|||
| Ejector Stroke: | 160mm | Machine Type: | Hydraulic |
|---|---|---|---|
| Toggle Stroke: | 660mm | Key Selling Points: | High Safety Level |
| Injection Pressure: | 175MPA | Weight: | 11.5T |
| Name: | Preform Injection Molding Machine | Condition: | New |
| High Light: | 175 MPA Preform Injection Molding Machine,175 MPA bottle preform making machine |
||
Product Description
Screw neck Bucket preform making machine / equipment / device / system / plant on 175 MPA Injection pressure
Clamping Unit—rigidity strong template,stability operation:
the Bucket preform making machine oblique double toggle mechanical locking mechanism
the low pressure mold protection devicee
the multistage clamping pressure / velocity and position control
the various hydraulic ejector mode
the quick locking differential device
the Bucket preform making machine mould cooling water.
the neutron standard interface device
the automatic centralized lubrication system
theBucket preform making machine switch module, ejection position control ruler
the Bucket preform making machine function of automatic mold adjustment
Parameter:
|
MODEL |
3850A | ||
| INJECTION UNIT | A | B | |
| Screw diameter | mm | 63 | 65 |
| Shot size(theoretical) | Cm³ | 1120 | 1192 |
| Shot weight | g | 1008 | 1072 |
| Nozzle Diameter | Srmm | 20 | |
| OTHERS | |||
| Heat power | KW | 17.5 | |
| Max. pump pressure | MPa | 16 | |
| Pump motor power | KW | 30 | |
| Valve Size | mm | 25 | |
| Machine dimension | m | 7.0X2.2X2.0 | |
| Machine weight | t | 11.5 | |
| Oil tank capacity | L | 400 | |
| Recommended different preform moulds specifications based on standard gram | |||
| Moulds manterial | Cavity(Pcs) | Gram weight(g) | Capacity(pcs/hour) |
|
Option1:P20 outside, Main accessories S136
Option2: SUS 316 |
1 |
800 |
45 |
| 750 | |||
| 730 | |||
| 700 | |||
| 680 |
50 |
||
| 650 | |||
| 620 | |||
| 600 | |||
| 580 |
55 |
||
| 560 | |||
| 530 | |||
|
2 |
480 |
120 |
|
| 430 | |||
| 400 | |||
| 350 | |||
| 320 | |||
Spare parts list for host inject machine part:
| Item |
Free spare parts |
Price for additional spare parts/USD |
|
1, Heating band for barrel |
1pcs | $35 |
| 2, Heating band for nozzle | 1pcs | $26 |
| 3, Sealing rings | 1sets | $25 |
| 4, Solid-state relay | 1pcs | $15 |
| 5, Proximity switch | 2pcs | $12 |
| 6, thermocouple | 1pcs | $12 |
| 7, socket head wrench | 1sets | $16 |
| 8, Mold clip | 8pcs | $180 |
| 9, Level pad | 1pcs | $130 |
| 10, Socket & plug | 2pcs | $17 |
The matching for recommended auxiliaries devices:

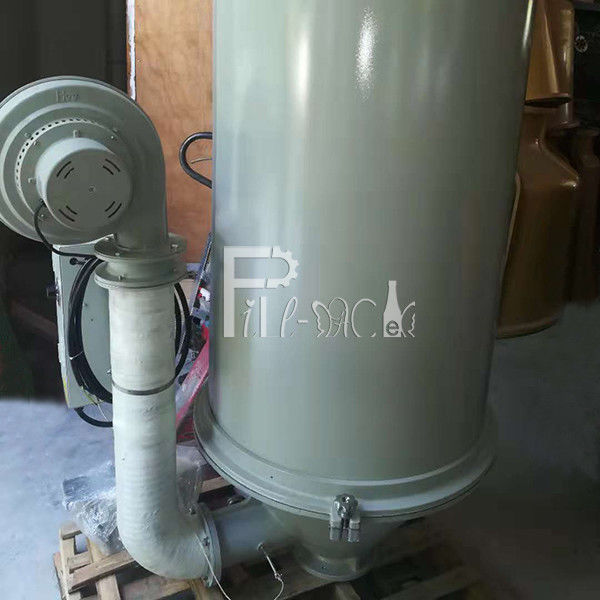

| Hopper Dryer | |
| Capacity | 300KG |
| Power for electrical heating | 15KW |
| Fan power | 320W |
| Fan flange | 190mm |
| Packing size | 1200*880*1770mm |
| Base installation size | 230*230*φ110mm |
| weight | 120KG |

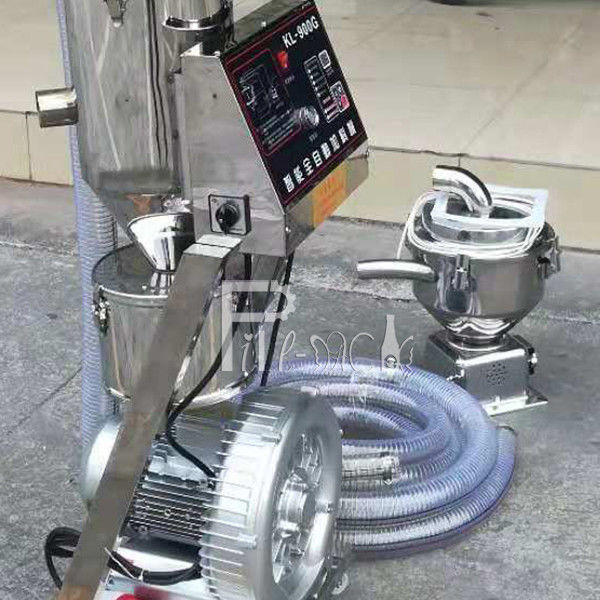

Ground hopper electrical connection details:
| Plastic crusher | |
| Motor power | 20HP(15KW) |
| Diameter | 610*320mm |
| Capacity | 600-800KG/H |
| fixed knife | 2pcs |
| Moving knife | 18pcs |
| dimension | 1200*1120*1630mm |

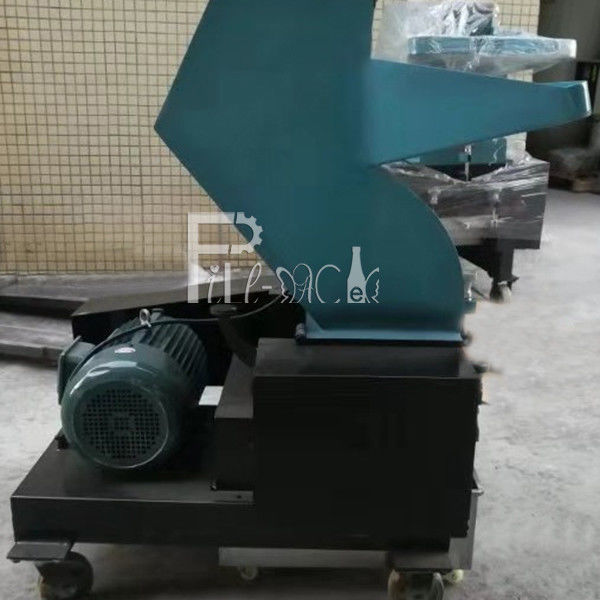

Crusher sturcture:
| Air compressor | |
| revolutions | 1030 |
| Power | 7.5KW |
| Capacity | 0.9L/min |
| Air storage tank volume | 180L |
| Pressure | 1.25Mpa |
| dimension | 1550*550*980mm |
| Weight | 140KG |
