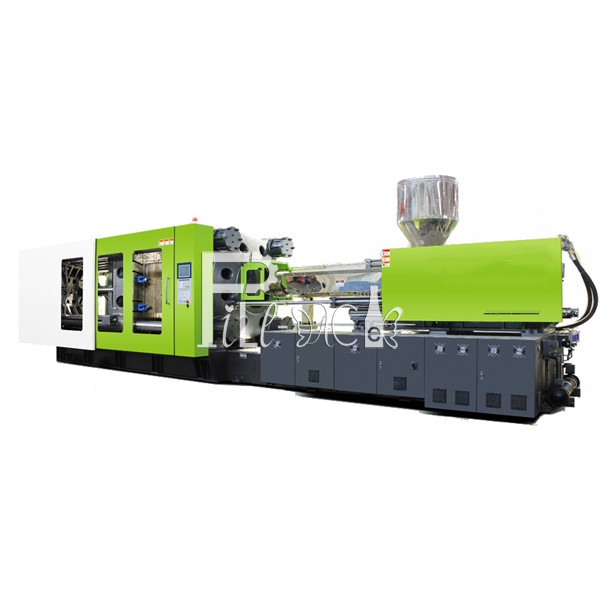

Large Clamping Force 5 Gallon Preform Injection Molding Machine

Minimum Order Quantity : 1 Price : USD $54050/set
Packaging Details : Wooden Case Package Delivery Time : 35-40 days after deposit receipt
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 1 set / month
Place of Origin: China,JiangSu,Zhangjiagang Brand Name: FillPack
Certification: CE. ISO9001 Model Number: FP-3850

Detail Information

Hydraulic Motor: DAN DUN-AMERICAN Machine Type: Hydraulic
Injection Rate: 320g/s Weight: 11.5T
Key Selling Points: High Safety Level Auto Lubrication Unit: SHENG DA-China(Mainland)
Name: Preform Injection Molding Machine Condition: New
High Light:

5 gallon Preform Injection Molding Machine

,

5 gallon preform injection machine

Product Description

All auxiliaries included complete Gallon preform production machine / equipment / device / system / plant




The plant porcessing drawing for reference



Automatic Transparent Plastic Gallon Bucket Injection Molding Machine
The Gallon preform production machine is used to produce 5 gallon barrel blanks.
The main features of our machine are: large clamping force, large injection weight, and large drawbar space.
Warmly welcome to contact us, we are happy to discuss more detailed information with you.



Parameter:

MODEL

3850A
INJECTION UNIT   A B
Screw diameter mm 63 65
Shot size(theoretical) Cm³ 1120 1192
Shot weight g 1008 1072
Injection pressure Mpa 175 165
Screw speed r.p.m 0-160
Nozzle Diameter Srmm 20
Ejector tonnage KN 80
Ejector number Piece 13
OTHERS
Pump motor power KW 30
Valve Size mm 25
Oil tank capacity L 400



Recommended different preform moulds specifications based on standard gram
Moulds manterial Cavity(Pcs) Gram weight(g) Capacity(pcs/hour)





Option1:P20 outside, Main accessories S136



Option2: SUS 316



1

800



45

750
730
700
680



50

650
620
600
580



55

560
530





2

480





120

430
400
350
320





Spare parts list for host inject machine part:



Item

Free spare parts

Price for additional spare parts/USD

1, Heating band for barrel

1pcs $35
2, Heating band for nozzle 1pcs $26
3, Sealing rings 1sets $25
4, Solid-state relay 1pcs $15
5, Proximity switch 2pcs $12
6, thermocouple 1pcs $12
7, socket head wrench 1sets $16
8, Mold clip 8pcs $180
9, Level pad 1pcs $130
10, Socket & plug 2pcs $17





The matching for recommended auxiliaries devices:

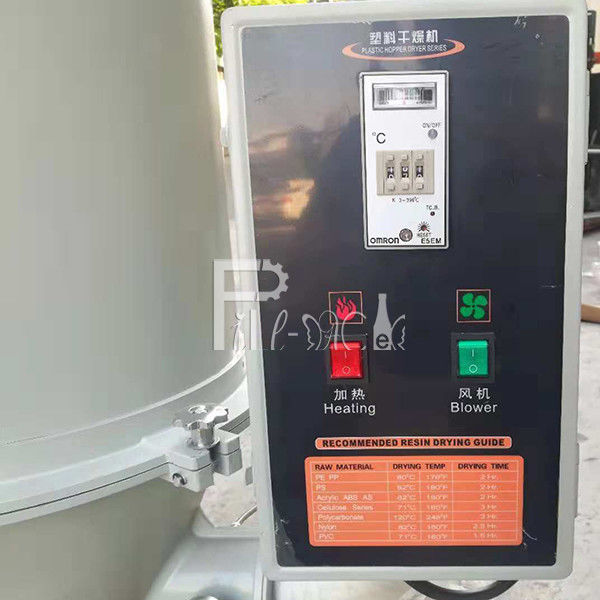

Hopper Dryer
Capacity 100KG
Power for electrical heating 6.5KW
Fan power 215W
Fan flange 150mm
Packing size 1020*630*1080mm
Base installation size 180*180*φ80mm
weight 59KG



Details:

Large Clamping Force 5 Gallon Preform Injection Molding Machine 0

Large Clamping Force 5 Gallon Preform Injection Molding Machine 1

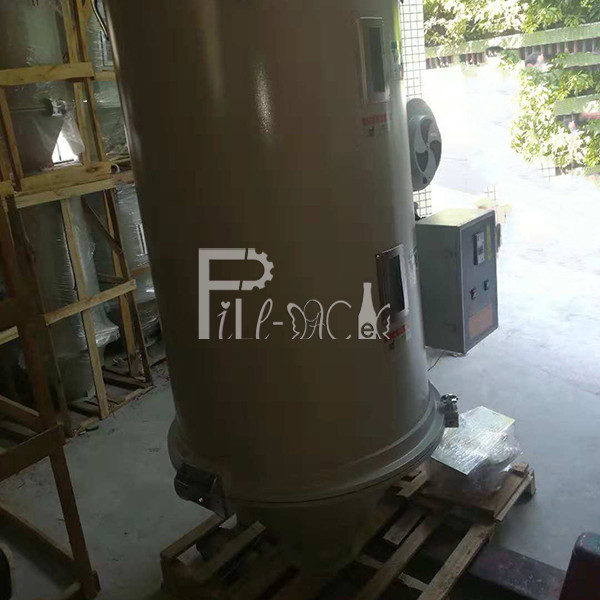

Hopper Dryer
Capacity 300KG
Power for electrical heating 15KW
Fan power 320W
Fan flange 190mm
Packing size 1200*880*1770mm
Base installation size 230*230*φ110mm
weight 120KG



Auto loader
Capacity 480KG/H
Lifting 5m
Static wind pressure 2400mm/H20
Materials storage tank volume 7.5L
Inner diameter of feeding tube 38mm
Host machine size 500*400*720mm
Materials storage tank size 450*320*450mm
Host machine weight 66KG
Materials storage tank weight 7KG



Detail:

Large Clamping Force 5 Gallon Preform Injection Molding Machine 2



Water chiller





refrigerating output

99005BTU/H
29KW
24940kcal/h
10HP
Compressor power 8.5KW
water pump power 0.75KW
Standard water flow 95L/MIN
Standard water tube diameter DN40



Type of condenser

High efficiency copper tube series aluminum chip + low noise axial flow fan
Restrictor capillary
refrigerant R22
Type of evaporation Water tank type
Water tank volume 215L
dimension 1300*770*1331mm
Weight 450KG

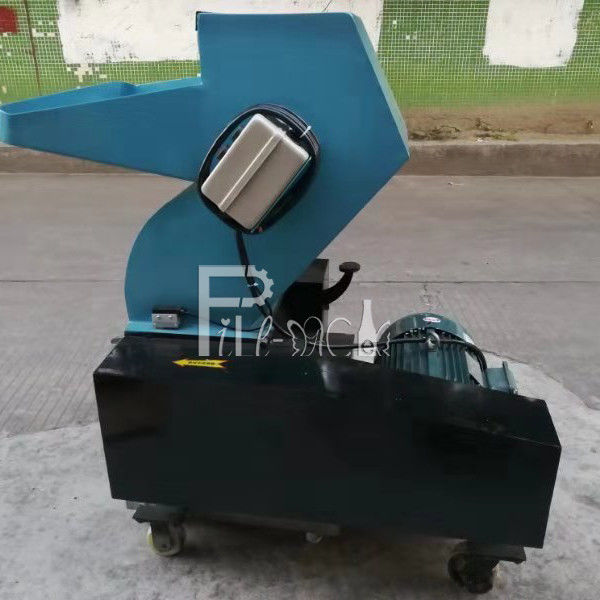

Plastic crusher
Motor power 20HP(15KW)
Diameter 610*320mm
Capacity 600-800KG/H
fixed knife 2pcs
Moving knife 18pcs
dimension 1200*1120*1630mm



Air compressor
revolutions 1030
Power 7.5KW
Capacity 0.9L/min
Air storage tank volume 180L
Pressure 1.25Mpa
dimension 1550*550*980mm
Weight 140KG
