Screw Neck 175 MPA Preform Injection Molding Machine
Contact Person : Alice Gu
Phone Number : 86-13862320828
WhatsApp : +8615862615333
| Minimum Order Quantity : | 1 | Price : | USD $54050/set |
|---|---|---|---|
| Packaging Details : | Wooden Case Package | Delivery Time : | 35-40 days after deposit receipt |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 1 set / month |
| Place of Origin: | China,JiangSu,Zhangjiagang | Brand Name: | FillPack |
|---|---|---|---|
| Certification: | CE. ISO9001 | Model Number: | FP-3850 |
|
Detail Information |
|||
| Type: | Preform Injection | Proportional Hydraulic Valve: | HOYEA-China(Mainland) |
|---|---|---|---|
| Warranty: | 1 Year | Injection Rate: | 320g/s |
| Weight: | 11.5T | Transducer: | GEFRAN-Italy |
| Condition: | New | ||
| High Light: | 660mm bottle preform making machine,660mm bottle injection moulding machine |
||

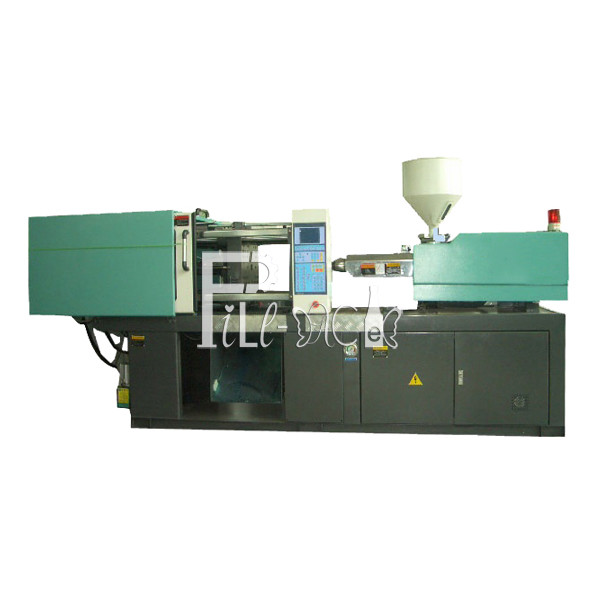

Product Description
660mm Toggle stroke Bucket preform production machine / equipment / device / system / plant with emergency stop
The high-efficiency and energy-saving Bucket preform production machine adopts proportional pressure and flow control,
the pressure and speed can be adjusted, the movement curve is stable, the vibration is soft,
and the computer is imported from the industrial series.
The high-definition LCD display uses Chinese and English to display closed-loop PID temperature control with high precision.
The workbench of the Bucket preform production machine has two safety features,
one is Bucket preform production machine safety and the other is electrical safety, which ensures the safety of the operator.
Parameter:
|
MODEL |
3850A | ||
| INJECTION UNIT | A | B | |
| Shot weight | g | 1008 | 1072 |
| Injection pressure | Mpa | 175 | 165 |
| Injection rate | g/s | 320 | 340 |
| CLAMPING | |||
| Clamp tonnage | KN | 3850 | |
| Toggle stroke | mm | 660 | |
| Mould Thickness | mm | 280-680 | |
| Ejector tonnage | KN | 80 | |
| Ejector number | Piece | 13 | |
| Hole Diameter | mm | 160 | |
| OTHERS | |||
| Heat power | KW | 17.5 | |
| Max. pump pressure | MPa | 16 | |
| Machine weight | t | 11.5 | |
| Oil tank capacity | L | 400 | |
| Recommended different preform moulds specifications based on standard gram | |||
| Moulds manterial | Cavity(Pcs) | Gram weight(g) | Capacity(pcs/hour) |
|
Option1:P20 outside, Main accessories S136
Option2: SUS 316 |
1 |
800 |
45 |
| 750 | |||
| 730 | |||
| 700 | |||
| 680 |
50 |
||
| 650 | |||
| 620 | |||
| 600 | |||
| 580 |
55 |
||
| 560 | |||
| 530 | |||
|
2 |
480 |
120 |
|
| 430 | |||
| 400 | |||
| 350 | |||
| 320 | |||
Spare parts list for host inject machine part:
| Item |
Free spare parts |
Price for additional spare parts/USD |
|
1, Heating band for barrel |
1pcs | $35 |
| 2, Heating band for nozzle | 1pcs | $26 |
| 3, Sealing rings | 1sets | $25 |
| 4, Solid-state relay | 1pcs | $15 |
| 5, Proximity switch | 2pcs | $12 |
| 6, thermocouple | 1pcs | $12 |
| 7, socket head wrench | 1sets | $16 |
| 8, Mold clip | 8pcs | $180 |
| 9, Level pad | 1pcs | $130 |
| 10, Socket & plug | 2pcs | $17 |
The matching for recommended auxiliaries devices:

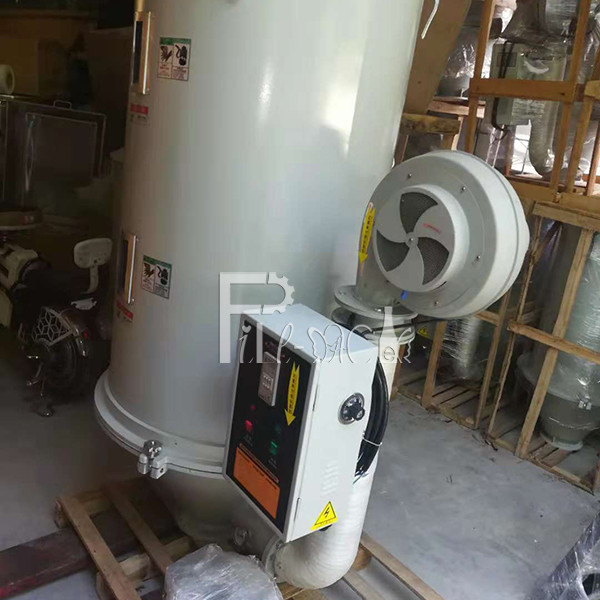

| Hopper Dryer | |
| Capacity | 100KG |
| Power for electrical heating | 6.5KW |
| Fan power | 215W |
| Fan flange | 150mm |
| Packing size | 1020*630*1080mm |
| Base installation size | 180*180*φ80mm |
| weight | 59KG |
Details:
| Auto loader | |
| Capacity | 480KG/H |
| Lifting | 5m |
| Static wind pressure | 2400mm/H20 |
| Materials storage tank volume | 7.5L |
| Inner diameter of feeding tube | 38mm |
| Host machine size | 500*400*720mm |
| Materials storage tank size | 450*320*450mm |
| Host machine weight | 66KG |
| Materials storage tank weight | 7KG |
Detail:
| Air compressor | |
| revolutions | 1030 |
| Power | 7.5KW |
| Capacity | 0.9L/min |
| Air storage tank volume | 180L |
| Pressure | 1.25Mpa |
| dimension | 1550*550*980mm |
| Weight | 140KG |
