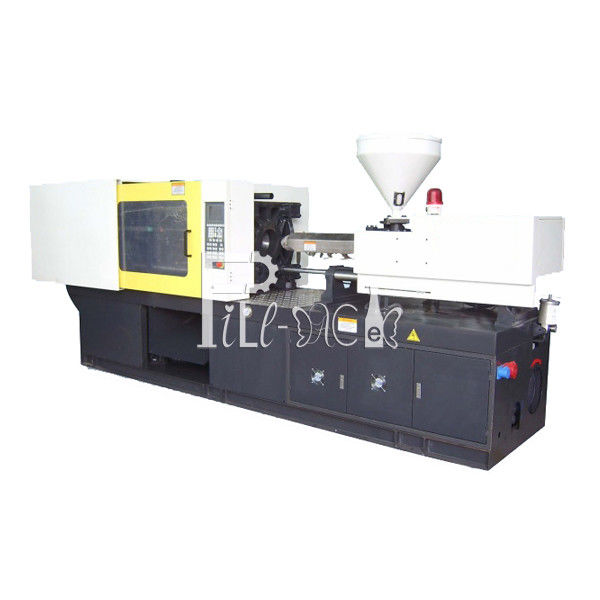

Screw Neck 175 MPA Preform Injection Molding Machine
Contact Person : Alice Gu
Phone Number : 86-13862320828
WhatsApp : +8615862615333
| Minimum Order Quantity : | 1 | Price : | USD $54050/set |
|---|---|---|---|
| Packaging Details : | Wooden Case Package | Delivery Time : | 35-40 days after deposit receipt |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 1 set / month |
| Place of Origin: | China,JiangSu,Zhangjiagang | Brand Name: | FillPack |
|---|---|---|---|
| Certification: | CE. ISO9001 | Model Number: | FP-3850 |
|
Detail Information |
|||
| Machine Type: | Hydraulic | Warranty: | 1 Year |
|---|---|---|---|
| Contactor: | LG-Korea | High-pressure Vitta: | BALFLEX-Portugal |
| Type: | Preform Injection | Injection Rate: | 320g/s |
| Condition: | New | ||
| High Light: | Hydraulic preform injection machine,320g PET injection moulding machine |
||
Product Description
Easy installation Gallon preform producing machine / equipment / device / system / plant with 20mm Nozzle Diameter
Parameter:
|
MODEL |
3850A | ||
| INJECTION UNIT | A | B | |
| Screw diameter | mm | 63 | 65 |
| Shot size(theoretical) | Cm³ | 1120 | 1192 |
| Shot weight | g | 1008 | 1072 |
| Screw L/D ratio | L/D | 22.7 | 22 |
| Screw speed | r.p.m | 0-160 | |
| Nozzle Diameter | Srmm | 20 | |
| CLAMPING | |||
| Clamp tonnage | KN | 3850 | |
| Toggle stroke | mm | 660 | |
| Mould Thickness | mm | 280-680 | |
| Ejector number | Piece | 13 | |
| Hole Diameter | mm | 160 | |
| OTHERS | |||
| Heat power | KW | 17.5 | |
| Max. pump pressure | MPa | 16 | |
| Pump motor power | KW | 30 | |
| Valve Size | mm | 25 | |
| Machine dimension | m | 7.0X2.2X2.0 | |
Configuration Brand and Function Warranty
Plasticizing oil motor LEUTRON (joint venture) One year
Mold oil motor LEUTRON One year
Cylinder screw ZHOUSHAN HAIQIANG (China) One year
Engine for Gallon preform producing machine HANG ZHOU DSM(China) One year
Hydraulic reversing valve HAI RI SENG One year
Electric appliance XING TIAN HONG Half a year
Special computer controller HONGXUN AK618, EASTON P8 (Taiwan) One year
Gear pump for Gallon preform producing machine LEUTRON One year
Electronic caliper JIE SHENG One year
Sealing elements HE LEI TER One year
Piston sealing ring HE LEI TER One year
Mold system for Gallon preform producing machine HAIRISEN Brake Cushion (China) One year
Mold accessory Single Core-pulling Valve Plate (China) One year
Lubrication for Gallon preform producing machine Self-Lubrication System,(China) One year
| Recommended different preform moulds specifications based on standard gram | |||
| Moulds manterial | Cavity(Pcs) | Gram weight(g) | Capacity(pcs/hour) |
|
Option1:P20 outside, Main accessories S136
Option2: SUS 316 |
1 |
800 |
45 |
| 750 | |||
| 730 | |||
| 700 | |||
| 680 |
50 |
||
| 650 | |||
| 620 | |||
| 600 | |||
| 580 |
55 |
||
| 560 | |||
| 530 | |||
|
2 |
480 |
120 |
|
| 430 | |||
| 400 | |||
| 350 | |||
| 320 | |||
Spare parts list for host inject machine part:
| Item |
Free spare parts |
Price for additional spare parts/USD |
|
1, Heating band for barrel |
1pcs | $35 |
| 2, Heating band for nozzle | 1pcs | $26 |
| 3, Sealing rings | 1sets | $25 |
| 4, Solid-state relay | 1pcs | $15 |
| 5, Proximity switch | 2pcs | $12 |
| 6, thermocouple | 1pcs | $12 |
| 7, socket head wrench | 1sets | $16 |
| 8, Mold clip | 8pcs | $180 |
| 9, Level pad | 1pcs | $130 |
| 10, Socket & plug | 2pcs | $17 |
The matching for recommended auxiliaries devices:

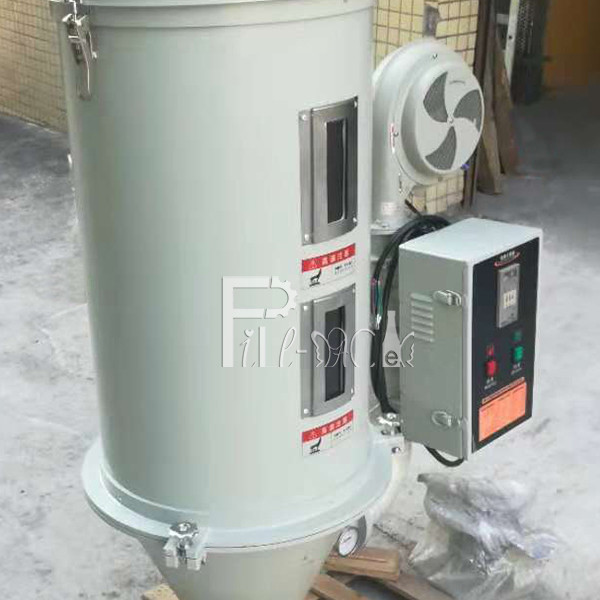

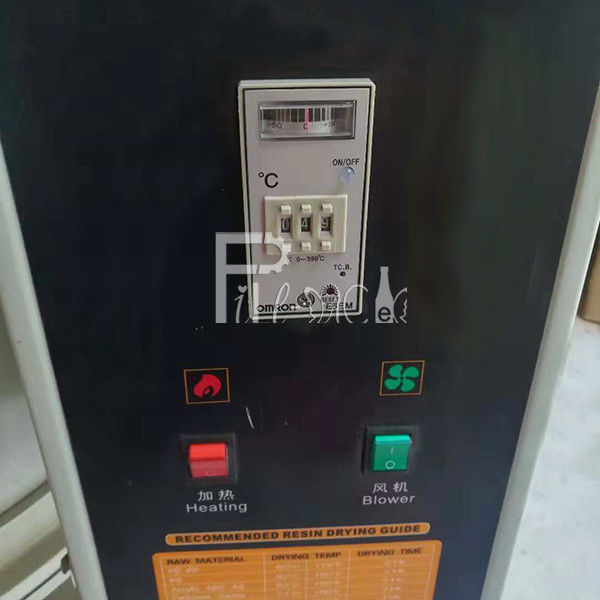

| Hopper Dryer | |
| Capacity | 100KG |
| Power for electrical heating | 6.5KW |
| Fan power | 215W |
| Fan flange | 150mm |
| Packing size | 1020*630*1080mm |
| Base installation size | 180*180*φ80mm |
| weight | 59KG |
Details:

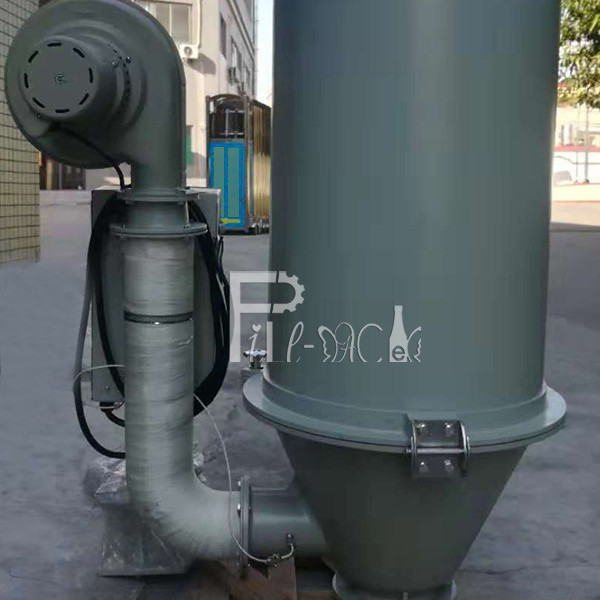

| Hopper Dryer | |
| Capacity | 300KG |
| Power for electrical heating | 15KW |
| Fan power | 320W |
| Fan flange | 190mm |
| Packing size | 1200*880*1770mm |
| Base installation size | 230*230*φ110mm |
| weight | 120KG |
| Auto loader | |
| Capacity | 480KG/H |
| Lifting | 5m |
| Static wind pressure | 2400mm/H20 |
| Materials storage tank volume | 7.5L |
| Inner diameter of feeding tube | 38mm |
| Host machine size | 500*400*720mm |
| Materials storage tank size | 450*320*450mm |
| Host machine weight | 66KG |
| Materials storage tank weight | 7KG |
Detail:
| Water chiller | |
|
refrigerating output |
99005BTU/H |
| 29KW | |
| 24940kcal/h | |
| 10HP | |
| Compressor power | 8.5KW |
| water pump power | 0.75KW |
| Standard water flow | 95L/MIN |
| Standard water tube diameter | DN40 |
|
Type of condenser |
High efficiency copper tube series aluminum chip + low noise axial flow fan |
| Restrictor | capillary |
| refrigerant | R22 |
| Type of evaporation | Water tank type |
| Water tank volume | 215L |
| dimension | 1300*770*1331mm |
| Weight | 450KG |
