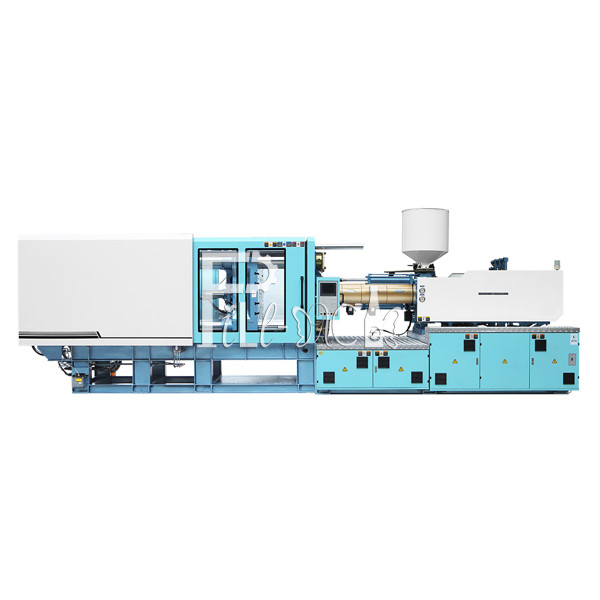

Screw Neck 175 MPA Preform Injection Molding Machine
Contact Person : Alice Gu
Phone Number : 86-13862320828
WhatsApp : +8615862615333
| Minimum Order Quantity : | 1 | Price : | USD $54050/set |
|---|---|---|---|
| Packaging Details : | Wooden Case Package | Delivery Time : | 35-40 days after deposit receipt |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 1 set / month |
| Place of Origin: | China,JiangSu,Zhangjiagang | Brand Name: | FillPack |
|---|---|---|---|
| Certification: | CE. ISO9001 | Model Number: | FP-3850 |
|
Detail Information |
|||
| Machine Type: | Hydraulic | Thermal Relay: | Schneider/Siemens-Germany |
|---|---|---|---|
| Key Selling Points: | High Safety Level | Weight: | 11.5T |
| A.c. Contactor: | Schneider/Siemens-Germany | Injection Rate: | 320g/s |
| Condition: | New | ||
| High Light: | 320g bottle injection moulding machine,320g Preform Injection Molding Machine |
||
Product Description
Screw injection Bucket preform producing machine / equipment / device / system / plant for gallon bottling factory
Features:
CONTROL UNIT
Parameter:
|
MODEL |
3850A | ||
| Screw diameter | mm | 63 | 65 |
| Shot weight | g | 1008 | 1072 |
| Injection pressure | Mpa | 175 | 165 |
| Injection rate | g/s | 320 | 340 |
| Screw L/D ratio | L/D | 22.7 | 22 |
| Screw speed | r.p.m | 0-160 | |
| CLAMPING | |||
| Toggle stroke | mm | 660 | |
| Space between tie-bars | mm | 680X680 | |
| Ejector stroke | mm | 160 | |
| Hole Diameter | mm | 160 | |
| OTHERS | |||
| Heat power | KW | 17.5 | |
| Valve Size | mm | 25 | |
| Machine dimension | m | 7.0X2.2X2.0 | |
| Recommended different preform moulds specifications based on standard gram | |||
| Moulds manterial | Cavity(Pcs) | Gram weight(g) | Capacity(pcs/hour) |
|
Option1:P20 outside, Main accessories S136
Option2: SUS 316 |
1 |
800 |
45 |
| 750 | |||
| 730 | |||
| 700 | |||
| 680 |
50 |
||
| 650 | |||
| 620 | |||
| 600 | |||
| 580 |
55 |
||
| 560 | |||
| 530 | |||
|
2 |
480 |
120 |
|
| 430 | |||
| 400 | |||
| 350 | |||
| 320 | |||
Spare parts list for Bucket preform producing machine:
| Item |
Free spare parts |
Price for additional spare parts/USD |
|
1, Heating band for barrel |
1pcs | $35 |
| 2, Heating band for nozzle | 1pcs | $26 |
| 3, Sealing rings | 1sets | $25 |
| 4, Solid-state relay | 1pcs | $15 |
| 5, Proximity switch | 2pcs | $12 |
| 6, thermocouple | 1pcs | $12 |
| 7, socket head wrench | 1sets | $16 |
| 8, Mold clip | 8pcs | $180 |
| 9, Level pad | 1pcs | $130 |
| 10, Socket & plug | 2pcs | $17 |
The matching for recommended auxiliaries devices:

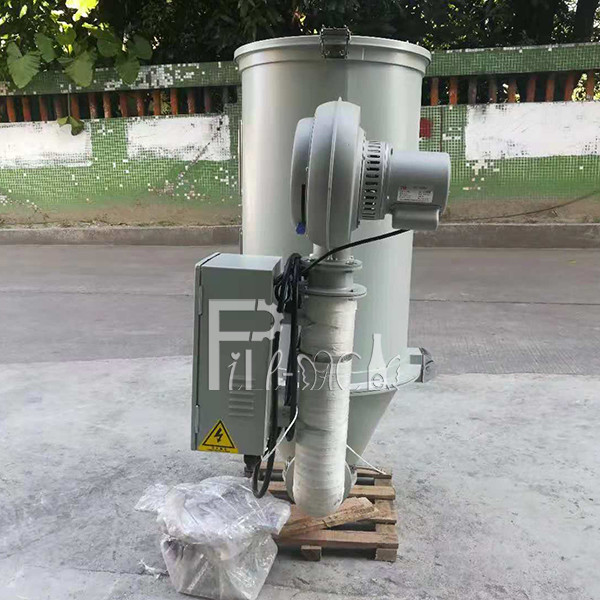

| Hopper Dryer | |
| Capacity | 100KG |
| Power for electrical heating | 6.5KW |
| Fan power | 215W |
| Fan flange | 150mm |
| Packing size | 1020*630*1080mm |
| Base installation size | 180*180*φ80mm |
| weight | 59KG |
Details:

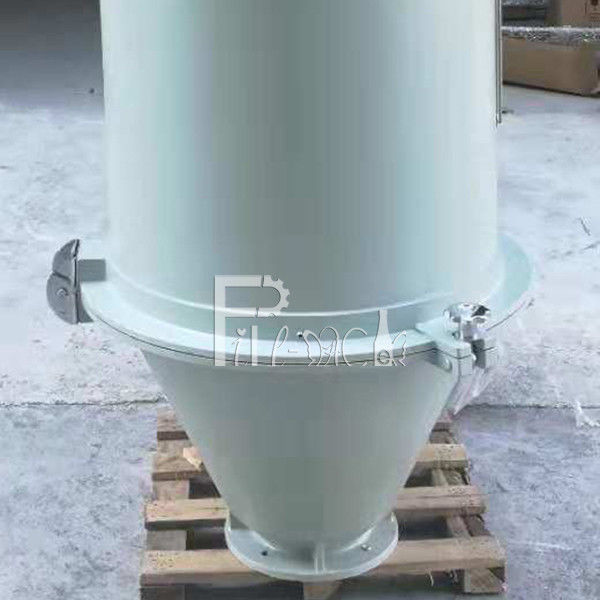

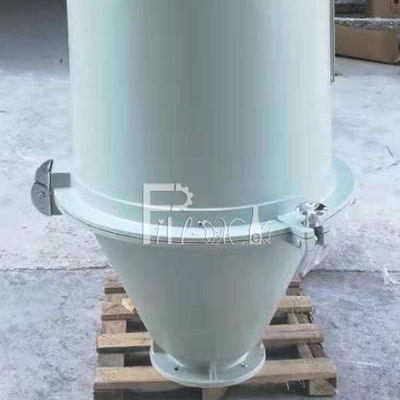

| Hopper Dryer | |
| Capacity | 300KG |
| Power for electrical heating | 15KW |
| Fan power | 320W |
| Fan flange | 190mm |
| Packing size | 1200*880*1770mm |
| Base installation size | 230*230*φ110mm |
| weight | 120KG |
| Auto loader | |
| Capacity | 480KG/H |
| Lifting | 5m |
| Static wind pressure | 2400mm/H20 |
| Materials storage tank volume | 7.5L |
| Inner diameter of feeding tube | 38mm |
| Host machine size | 500*400*720mm |
| Materials storage tank size | 450*320*450mm |
| Host machine weight | 66KG |
| Materials storage tank weight | 7KG |
Detail:
