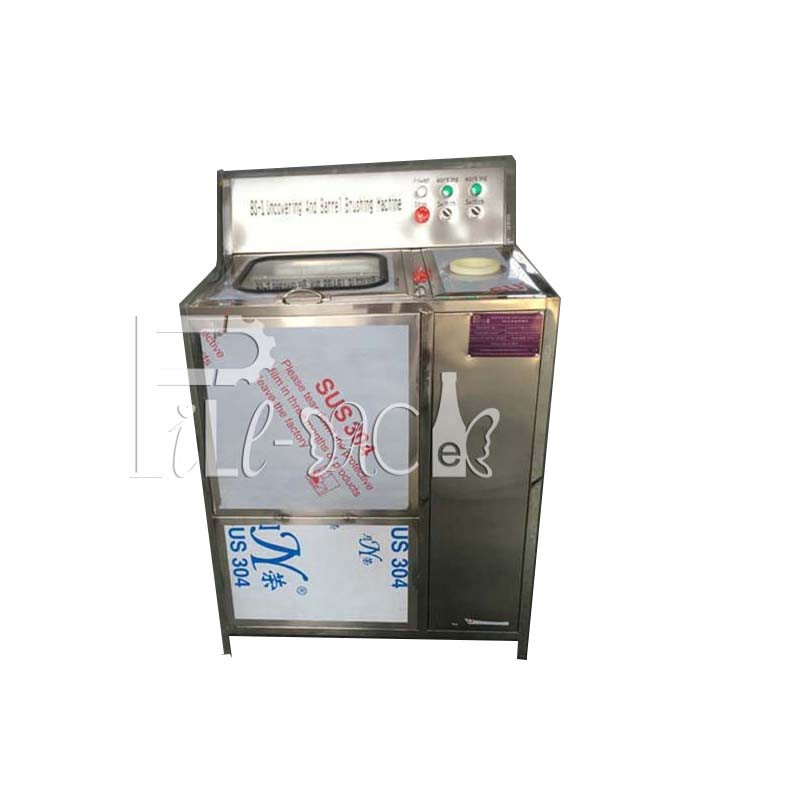

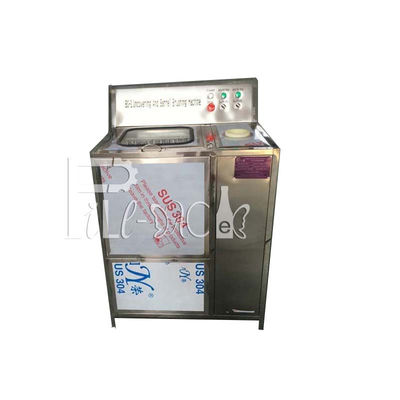

Semiauto 250BPH 5 Gallon Bottle Decapper Washer

Minimum Order Quantity : 1 Price : USD $700/set
Packaging Details : Wooden Case Package Delivery Time : 15-20days after deposit receipt
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 10 set / month
Place of Origin: China,JiangSu,Zhangjiagang Brand Name: FillPack
Certification: CE. ISO9001 Model Number: BS-1

Detail Information

Power: 1.2KW Weight: 120kg
Material: SUS304 Automatic Grade: Semi-auto
Capacity: 250BPH Packaging Type: Gallon Bottle / Bucket
Condition: New
High Light:

5 Gallon Bottle Decapper Washer

,

semiauto Bottle Decapper Washer

,

SUS304 5 Gallon Bottle Washer

Product Description

semi-auto 250BPH 3-5 Gallon Bottle / bucket / barrel Decapper And Washer



Working process

Put the empty bottleneck into the pedal and pull the cap and Put the barrel in flushing base, 1 arrow above cover plate, blunt begin automatically flush work, open the cover plate is flush to stop, then Put the empty into the washing box with brush, close the cover plate, brush barrels began to work, open the stop,Take out the bottle around 10 seconds, a process is over.

Checking the power supply and air pressure before turn on the machine, motor steering right or not, if not, please use machine after excluding the malfunction.



Instructions

1. Putting the bottleneck into the pulling machine chuck and press it to site.

2. Stamping pneumatic valve pedal, the gas tank drive chuck and then pull the cap.

3. Loosening pedal, gas tank lift up, taking down the empty bottle when pulling machine chuck open.

4. Please stamp pneumatic valve to pull the cap if the first failed, if the cap can’t be pulled out, this cap is difficult cap, loosen pneumatic valve and take down the cap coercively.( this situation seldom happened )

5. Putting the empty into the washing bottle machine, close door, then the machine work automatically.



Main Technical parameter of this Gallon washer:

Capacity 200-250b/h
Brushes 8
Barrel size 3-5gallon(270×490×56)
Air pressure 0.5MPa
Water consumption 0.01t/h
Power 1.12KW without heating, 2.12KW with heating
Outline dimensions 800*750*1200mm
Weight 120Kg

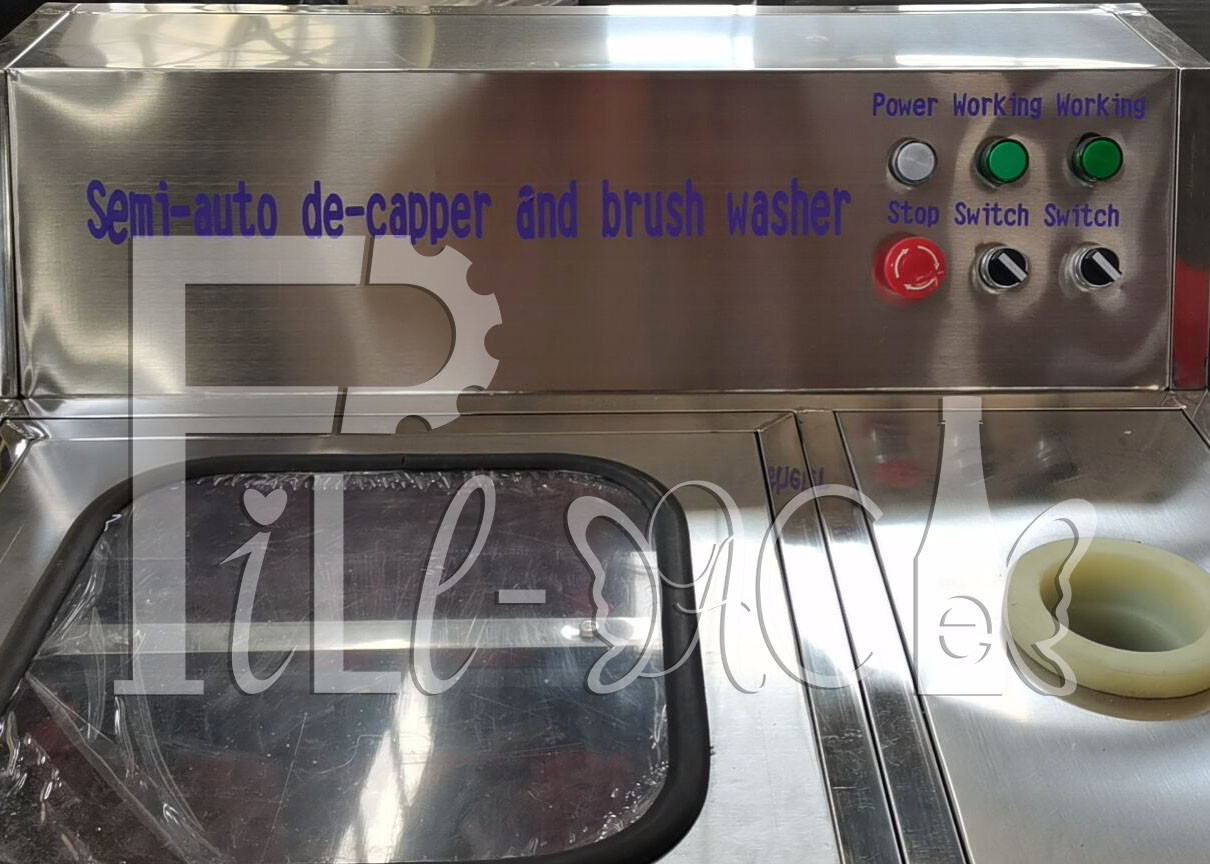

The details of this Gallon washer:

Semiauto 250BPH 5 Gallon Bottle Decapper Washer 0Semiauto 250BPH 5 Gallon Bottle Decapper Washer 1Semiauto 250BPH 5 Gallon Bottle Decapper Washer 2
