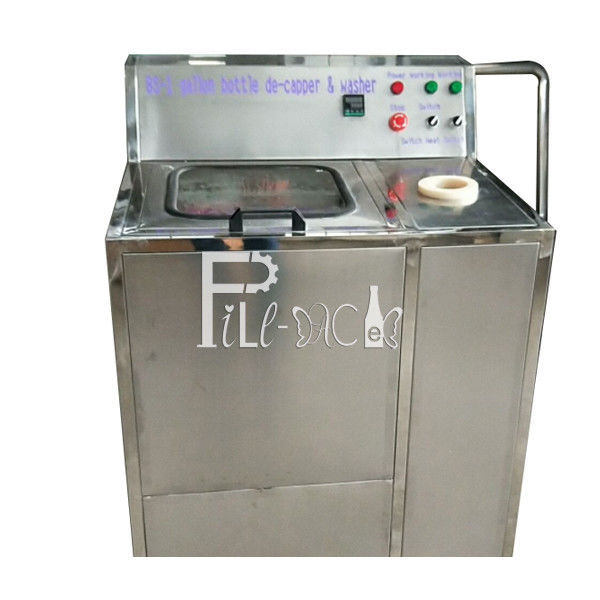

3 Gallon Stainless Steel Bottle Washer With Checking Window

Minimum Order Quantity : 1 Price : USD $790/set
Packaging Details : Wooden Case Package Delivery Time : 15days after deposit receipt
Payment Terms : L/C, D/A, D/P, T/T, MoneyGram Supply Ability : 20 set / month
Place of Origin: China,JiangSu,Zhangjiagang Brand Name: FillPack
Certification: CE. ISO9001 Model Number: BS-1

Detail Information

Power: 1.2KW Weight: 120KG
Material: Stainless Steel 304 Automatic Grade: Semi-Automatic
Capacity: 200-250BPH Packaging Type: Barrel, Gallon Bottle
High Light:

stainless steel 3 Gallon Bottle Washer

,

250BPH 3 Gallon Bottle Washer

,

250BPH stainless steel Bottle Washer

Product Description

3-5 Gallon Bottle Decapping and Washing Machine With Checking Window



Principle of this Gallon washer:

This machine is mainly use for washing the recycle empty 3-5gallon bottles in the 3-5 gallon barreled water filling line, it is for clean the impurity,deposition and algae etc,it also equipts decapping device.

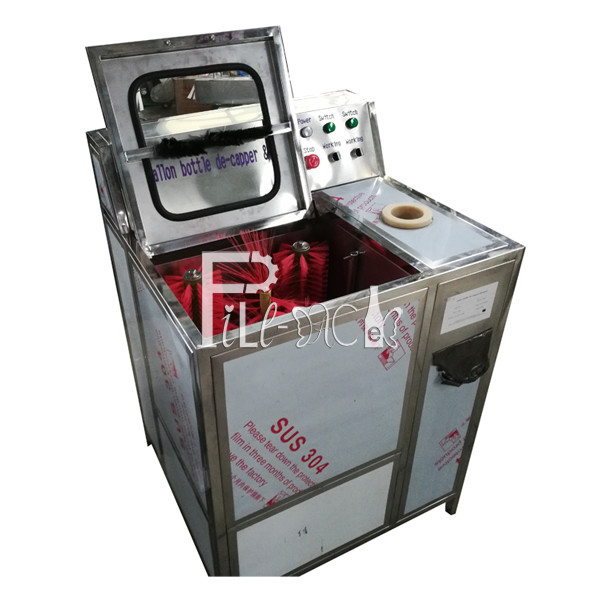

Worker put used jar in right side of de-capper position, with the neck inserting into the hole, worker foot press pedal to release cap off neck; And then worker need to take the jar to insert into left side of the machine-washing position. After the jar putting in, the window need to be closed. Then the washer will be started by itself. During washing, the inner brush inside jar and Washing time is pre-settled, the machine will stop when time finish. Heating function could be switched on/ off as customer's requirements.



Main Technical parameter

Capacity 250BPH

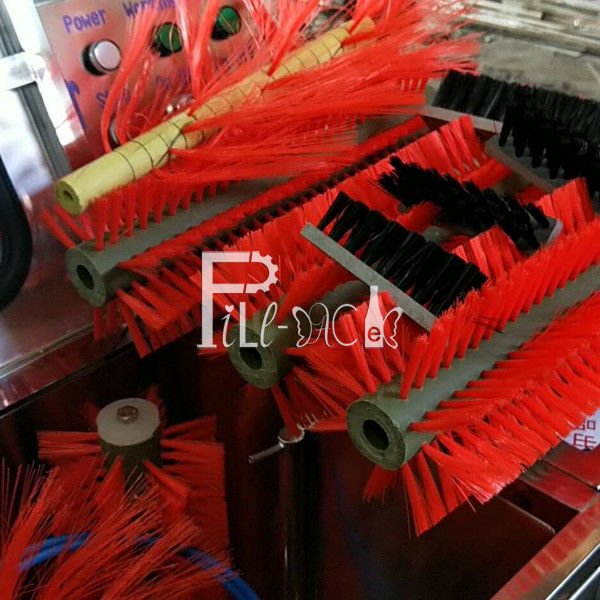

Brushes 8
Barrel size 3-5gallon(10-20L)(270×490×56)
Air pressure 0.5MPa
Water consumption 0.01t/h
Power 1.12KW without heating function, 2.12KW with heating function
Outline dimensions 800*750*1200mm
Weight 120KG



1. summarize
BS-1 pulling-washing bottle machine is auxiliary machine of QGF bottle
production line. This machine set washing, pulling in a body, to wash
whole bottle without dead angle, the cap has been pulled without
damage and can be use again. This machine with compact structure, just
need one worker, to washing-pulling bottles at least 200.

2. Technology parameter
1. 1pc pulling cap
2. 8pcs washing brush
3. Pneumatic component : 1pc 75*80 tank and 1pc pulling cap pedal
4. Dimension: 800*1000*800mm
5. Power supply: 800V
6. Washing pump: 0.37KW
7. Motor power: 0.75KW

3. Working process
Put the empty bottleneck into the pedal and pull the cap and Put the
barrel in flushing base, 1 arrow above cover plate, blunt begin
automatically flush work, open the cover plate is flush to stop, then Put
the empty into the washing box with brush, close the cover plate, brush
2barrels began to work, open the stop,Take out the bottle around 10
seconds, a process is over.
Checking the power supply and air pressure before turn on the machine,
motor steering right or not, if not, please use machine after excluding
the malfunction.

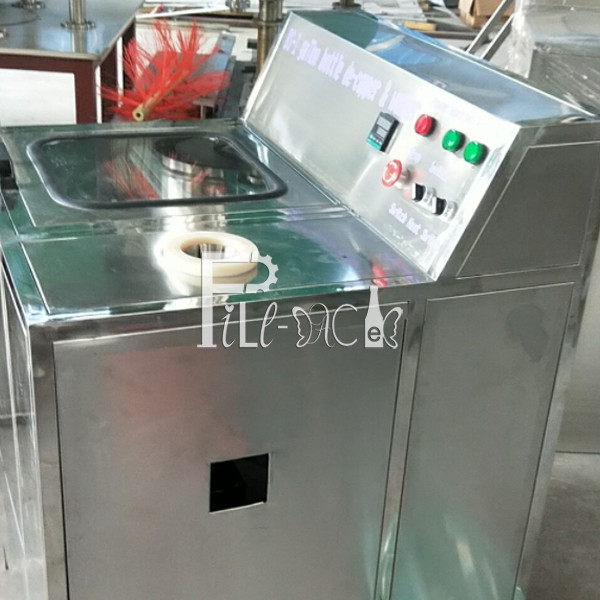

The details of this Gallon de-capping and washing machine:

3 Gallon Stainless Steel Bottle Washer With Checking Window 0

3 Gallon Stainless Steel Bottle Washer With Checking Window 1
