Stainless Steel 304 1200BPH Drinking Water Filling Machine

Minimum Order Quantity : 1 set/pcs Price : USD$87,000.00-USD$92,000.00
Packaging Details : Wooden case pacakge Delivery Time : 30-35days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 5 sets/month
Place of Origin: ZhangJiaGang JiangSu China Brand Name: FILL PACK
Certification: CE, ISO9001 Model Number: QGF-1200

Detail Information

Bottle Size: 3/5 Gallon Bottle Capacity: 1200BPH
Packaging Type: Barrel, Bottles Video Outgoing-inspection: Provided
Control: PLC Material: Stainless Steel 304
Driven Type: Electric Processing Types: Automatic Bottle Filling Line
High Light:

1200BPH drinking water filling machine


1200BPH Mineral Water Bottling Machine


1200 BPH Gallon Filling Machine

Product Description

3 / 5 Gallon Barrel Bottling Line With 1200BPH For Drinking Water


Brief Of Gallon Water Production Machine:

Barrel filling machine is special for 3 gallons and 5 gallons barrel drinking water production.

The production line can automatic finish on line washing, bottle loading, sterilizing, filling, capping, shrinking, bagging and transport the bottles out, it is function complete, structure compact, easy operation and so on features.

It is an integration of machine, electrical, air and stand for nation new type lead level drinking water equipment.

The machine body adopts excellent quality SS material.


Parameters Of Gallon Water Production machine
Material Shape Filling volume Filling level(mm)
PC / PET Round or Square 3 - 5 Gallon According to customer
Bottle Type Size of Barrel : ф270×490mm
Container Label Sticker Label / Shrink Wrap Label / Prinetr Label
User workshope Conditions Temperature:10~40℃;Humidity:No dew
Power supply request Voltage:380V±5%, 3phase; Frequency:50HZ±1%


Benefits Of Gallon Water Production Machine:

1. QGF series automatic production line is specialized for production of 3-5 Gallon barrel
2. The machine consists of washing, filling and sealing in one
3. The bottle washer adopts multi-channel washing liquid injection and disinfectant injection for the purpose of washing sterilization.The disinfectant is recyclable
4. The sealing machine can start sealing automatically and the bottle conveying port is equipped with a sanitation device to ensure the sanitation of cap
5.  Washing, disinfection, filling, gland, counting and discharging is automatic
6. The major electrical apparatus are all products of well-known brands, such as SIEMENS, MITSUBISHI, Schneider and OMRON
7. This production line is an ideal choice for mineral water, distilled water and purified water with impact structure, small occupation of land and high automation


Detailed Images:

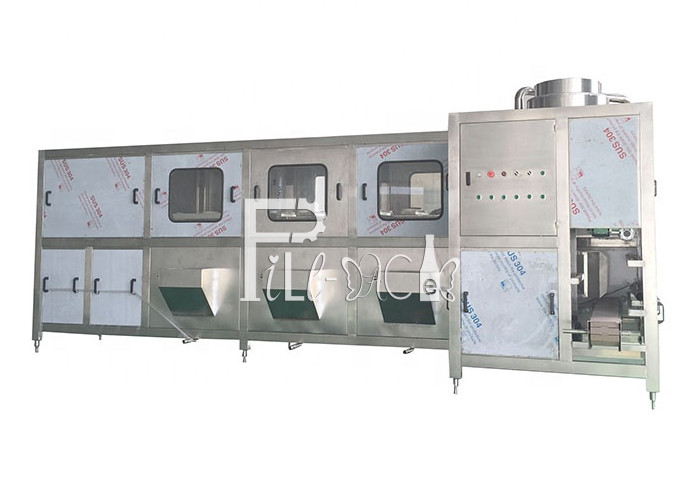

Stainless Steel 304 1200BPH Drinking Water Filling Machine 0

Stainless Steel 304 1200BPH Drinking Water Filling Machine 1
