SS 304 20 Liter Jar Filling Machine With Labeling Machine

Minimum Order Quantity : 1 set Price : USD $18,000-$20,000/set
Packaging Details : wooden case Delivery Time : 15-20 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 5 sets/month
Place of Origin: ZhangJiaGang JiangSu China Brand Name: FILL PACK
Certification: CE, ISO9001 Model Number: QGF600

Detail Information

Bottle Size: 3~5 Gallon Bottle Capacity: 600BPH
Control: PLC+touch Screen Material: Stainless Steel 304
Dimension(L*W*H): 3900*2300*1800mm Filling Accuracy: 99%
Ink Jet Code Printer: 347*220*100 Checking Light: 1000*100*450
High Light:

600BPH Gallon Bottling Line

,

600BPH 20 Liter Jar Filling Machine

Product Description

Description of 600 bottle per hour Bottle / Gallon bottling line with labeling machine



Equipment list of Gallon bottling line:

1.1 Automatic De-capper BG-2 900*600*2000 1set
1.2 Rotary external washer RXT-3 1800*1550*1750 1set

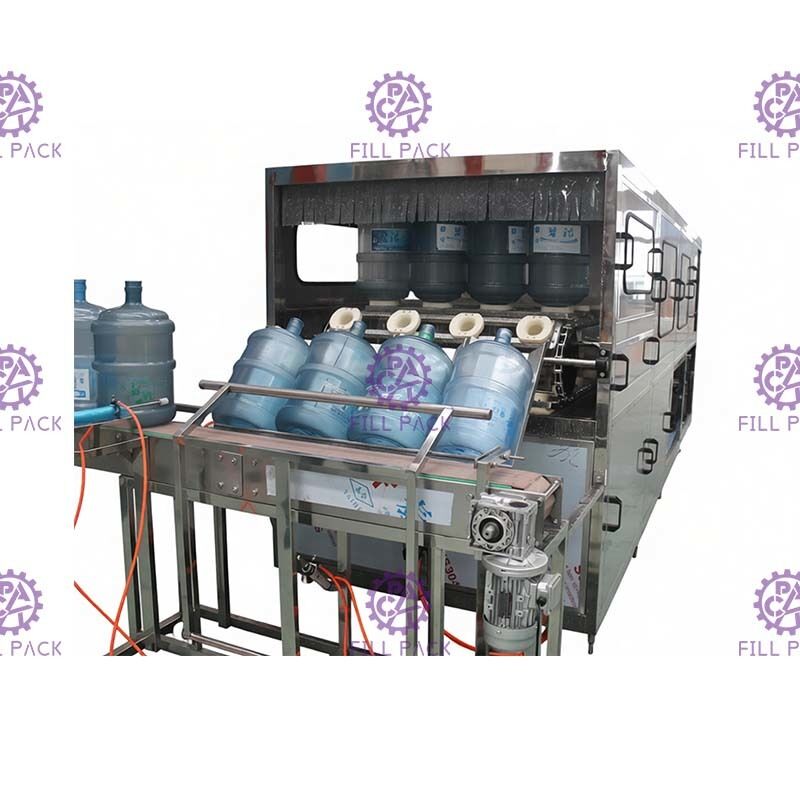

1.3 L type Washer/Filler/Capper with auto bottle loading WFC-600H 5000*2300*1800 1set

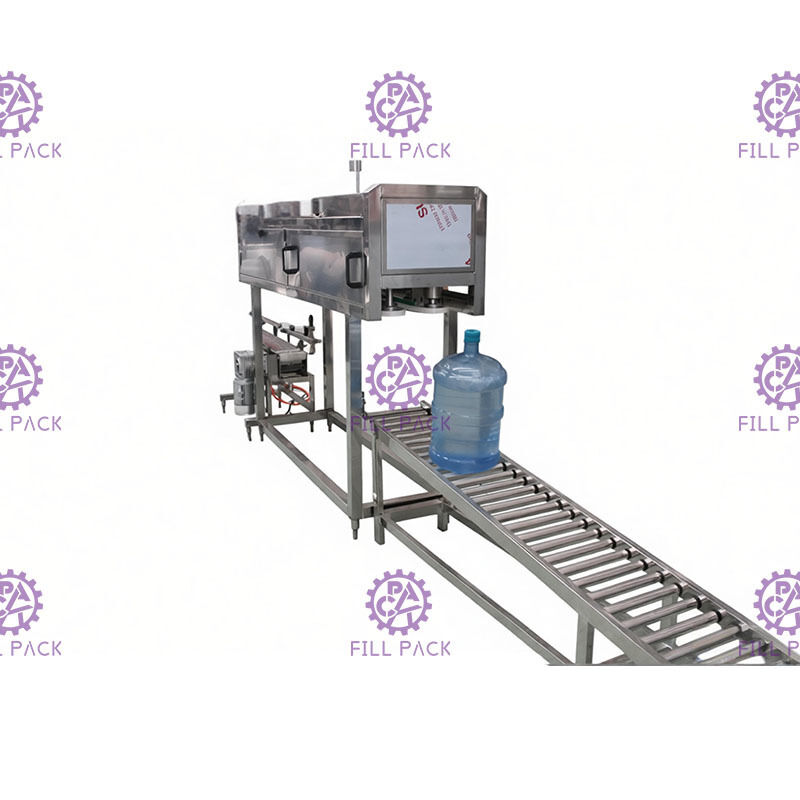

1.4 Heat Shrinking Machine / 800*600*1200 1set
1.5 Checking Light CL-1 1000*100*450 1pc
1.6 Conveyor Belt with Motor / 10m+2 motors 1set
1.7 Ink jet code printer OH-338 347*220*100 1set


The whole Gallon bottling line includes Automatic De-capper, Rotary external washer, L type Washer/Filler/Capper, Heat Shrinking Machine, Checking Light, Ink jet code printer.



1, Automatic De-capper:
De-capping head: 2 heads
Dimension: 900*600*2000mm
Weight: 130kg



2, Rotary external washer

Parameters:

Dimension: 1800*1550*1750mm

Weight: 800kg

Power: pump 0.37+motors 0.75*2+transfer motor 1.1=2.97KW

Recycle water tank size: 600*550*550mm

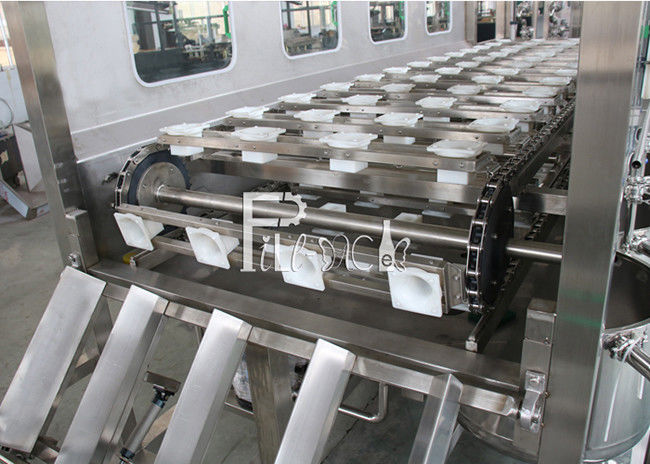

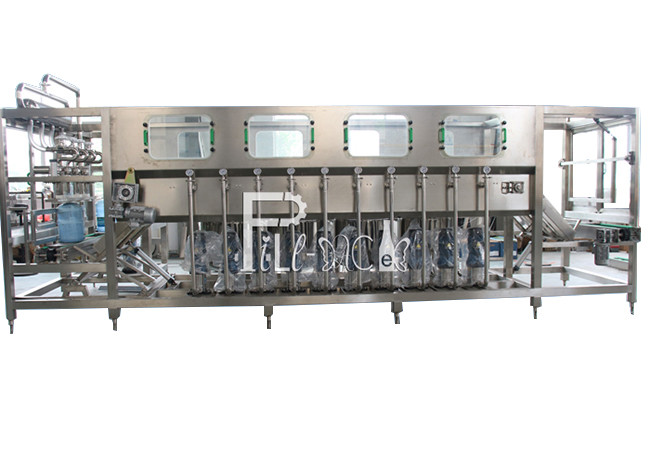

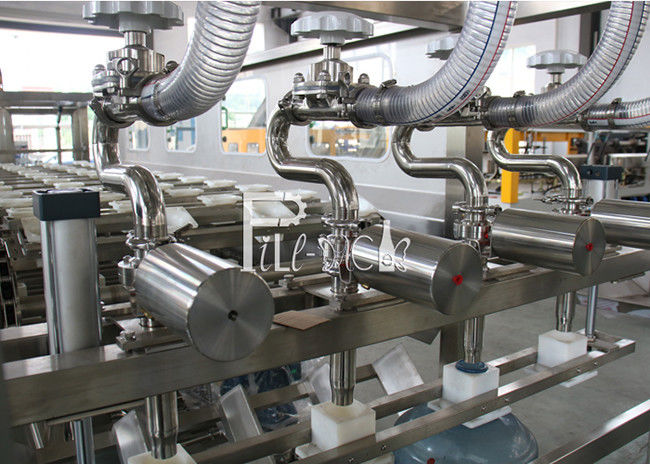

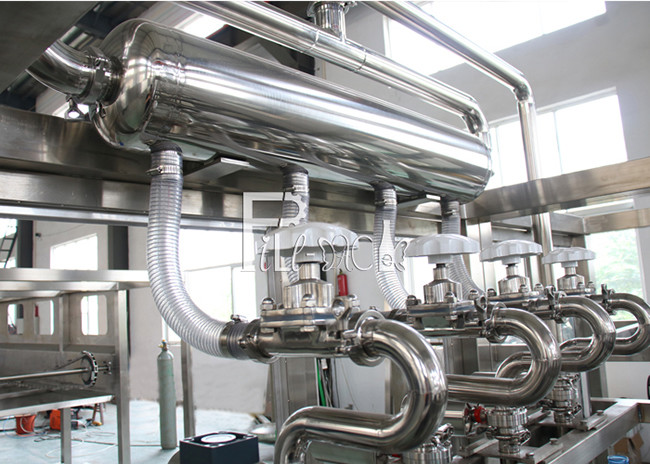

3, Monoblock gallon rinser-filler-capper

Working process:

Barrel filling unit can be divided into 3 steps: washing, filling and capping, total 18 working stations

1, 1 electric heating station

2, 2 disinfectant washing stations

3, 1 dripping station

4, 2 return water stations

5, 2 pure water stations

6, 1 dripping station

One side 9 stations, Both sides 18 stations



Working process as below:

1. The empty bottles enter the washing and disinfection stations through the chain and bottle holder. (The washing bottle passes through 9 stations) When the drive motor runs with an empty bottle, and enters the positioning induction zone with the sensor on the chain, the positioning sensor switch sends a signal to stop the drive motor, and at the same time, the rinse bottle water pump starts to perform The flushing and disinfection work (the flushing time is controlled by the PLC program setting);

2. After rinsing, the rinsed empty bottles are transported by the bottle washing drive mechanism, and fall on the bottle pushing rack. The bottle pushing cylinder works to push the empty bottles to the filling position, so that the filling nozzle is aligned with the water bottle mouth, etc. After the water is flushed, the filling pump starts filling. (The filling time is adjusted by the user according to needs)

3. When the filling is full, the PLC sends out a control signal, the filling solenoid valve is closed, and the filling is stopped. After the filling is completed, the filled water bottle is sent to the cover of the capping area by the next water bottle and sent to the gland Area, the capping cylinder drives the capping device to press the cap tightly. At this point, a wash irrigation cycle is completed.



Parameters:

Cylinder: Air tech-Taiwan

Magnetic valve: Air tech-Taiwan

Rising pump-filling pump: Nanfang

PLC: Mitsubishi Japan

Material: SUS304

Power:22KW

Dimension: 3900*2300*1800mm

Weight: 1000kg



4, Steam shrink Machine
5, Ink jet code printer



6, Automatic cap lifter-washer

The Automatic cap elevator is designed to lift bottles caps to capping machine, which there is a cap sorting machine before capping. It is not only used in beverage industry, also can be used in food, hardware, packaging, medical and chemical industry.

Features:

The machine use traditional user interface, simple, safe and reliable

The main parts of the machine are of high quality 304 stainless steel

The machine meet the GMP requirements, easy disassembly, cleaning & maintenance

Parameter:

Model: TSJ-1200

Speed: 20-50 pcs/min

Material: SUS304

Motor power: 0.37kw

Dimension: 800*800*3000

Weight: 130kg



SS 304 20 Liter Jar Filling Machine With Labeling Machine 0

SS 304 20 Liter Jar Filling Machine With Labeling Machine 1
