Anti Leakage QGF-2000 5 Gallon Water Filling Machine

Minimum Order Quantity : 1 set Price : USD$87,000.00-USD$92,000.00
Packaging Details : Wooden case pacakge Delivery Time : 30-35days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 5 sets/month
Place of Origin: ZhangJiaGang JiangSu China Brand Name: FILL PACK
Certification: CE, ISO9001 Model Number: QGF-2000

Detail Information

Product Name: 3-5 Gallon Filling Machine Capacity: 2000BPH
Bottle Type: Barrel Control: PLC Controlled+ English MMI
Warranty: 1 Year Material: SUS 304
Certification: CE, ISO, BV, SGS
High Light:

2000BPH Gallon Filling Equipment


QGF-2000 5 gallon water filling machine

Product Description

QGF-2000 Gallon Barrel Water Bottling Machine With Automatic Jar Unloading Device


Description Of Water Bottling Machine:

This automatic rinsing, filling and capping machine, could be applicable quantitative filling and capping of drinking water,mineral water,Pure water. It has functions as follows: Disinfectant rinse, aseptic water rinsing; automatically i liquid filling tank, inlet material; feed bottles by air conveyer (or screw convey);automatically rinse, open valve and feed caps; not rinse, open valve and feed caps without bottles .
Compact structure; reasonable design and convenient operation and maintenance. Main machine is adopted frequency speed control, it runs stable and credibility. Material of contacted with product we use high food grade stainless steel. After exchanging changeover parts, it is applicable for different kinds of PET bottle filling.
We adopt advanced touch screen operation and realize human-machine communication. Function of control system as follows: product speed control, automatic stop with faults and take count of output,.etc.

Equipment list Of Water Bottling Machine:

Items Name of machine Model Size(mm) Qty.
QGF-2000 Gallon Barrel Water Bottling Machine
1 Automatic de-capper BG-3 1200*800*1950 1set
2 Rotary external washer XT-3 1800*1550*1750 1set
3 Monoblock jar rinser CXJ-3 6000*2100*2100 1set
3.1 Automatic jar loading-unloading device ST-6 / 1set
4 Automatic rotary jar filler TG-12 3000*2200*2500 1set
4.1 Automatic belt capper LDYG-1 600*200*300 1set
4.2 Automatic cap lifter-washer SG-1 800*800*3000 1set
5 Steam shrink tunnel SB-1000 1000*450*1500 1set
6 Light checker DJ-1 800*200*300 1pc
7 Belt conveyor system SYS-1 35m 1set
8 Ink jet code printer PM-368 347*220*100 1set
8 Automatic neck labeling machine TB-50 1000*800*2000 1set
8.1 Steam shrink tunnel SB-1000 1000*450*1500 1set
8.2 Steam generator 9KW 630*560*1360 1set
9 Automatic stacker 5*4*3 2700*2000*2000 1set


Technology parameters Of Water Bottling Machine:
1 . 3-5 gallon barrel water filling machine porducing capacity: 2000BPH.
2 . PLC controlled+ English MMI;
3 . Bottle volume:3 gallon- 5 gallon;
4 . Certification: CE, ISO, BV, SGS ;
1) Our barreled water producing line is specially designed for 3-5 gallon drinking water;
2) The machine have the function of rinsing barrel, filling water into barrel, capping for the barrel after filling water;
3) Barrel packing is different from small PET bottle packing, usually the barrel is recycle using, so the barrel cleaning is very important as the first step. In our rinsing machine, the barrel will be cleaned by multiple liquid, from alkali water to disinfecting water, and then to the pure water, to ensure every barrel can be cleaned absolutely. And then the filling machine and capping machine will start to work automatically;
4) In our capping machine, there is pure water spraying device, to sterilize the caps, avoid any pollution to the beverage;
5) Our producing line can carry out the bottle washing, sterilizing, filling, capping, counting, heat shrink labeling, packing, discharging.


Detailed Images:

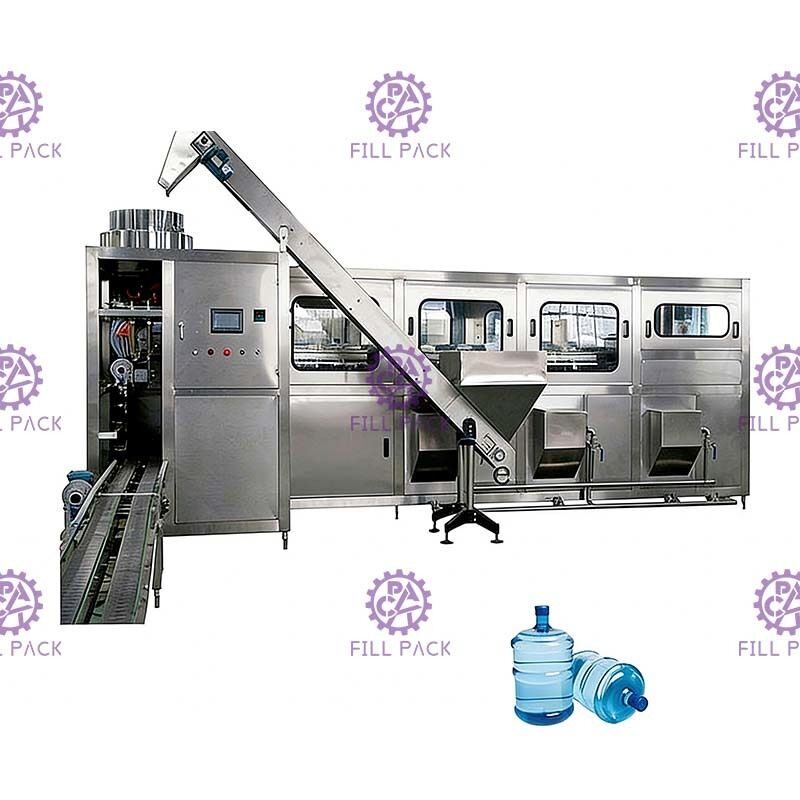

Anti Leakage QGF-2000 5 Gallon Water Filling Machine 0

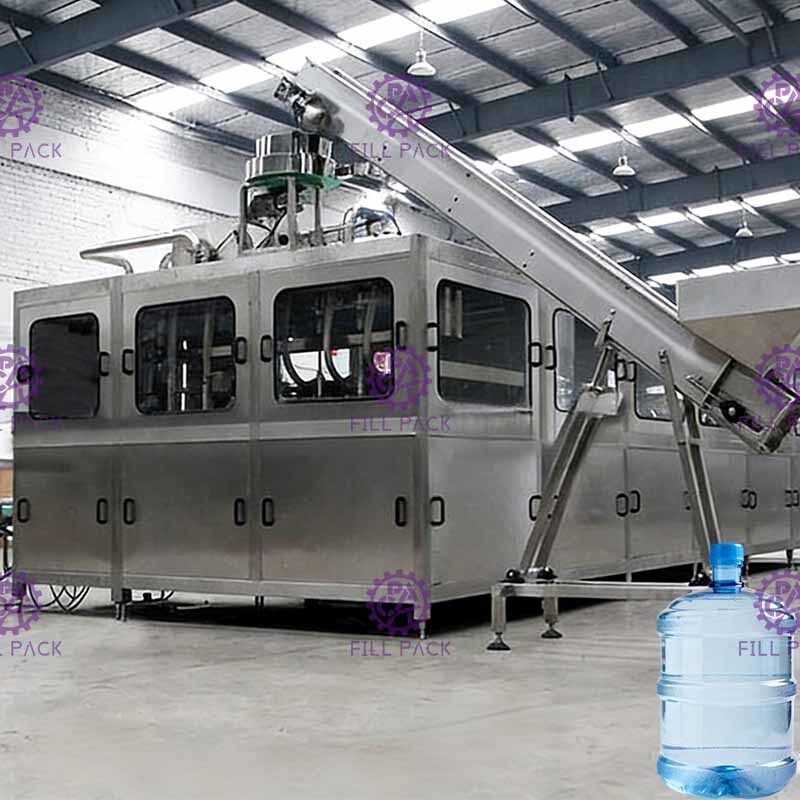

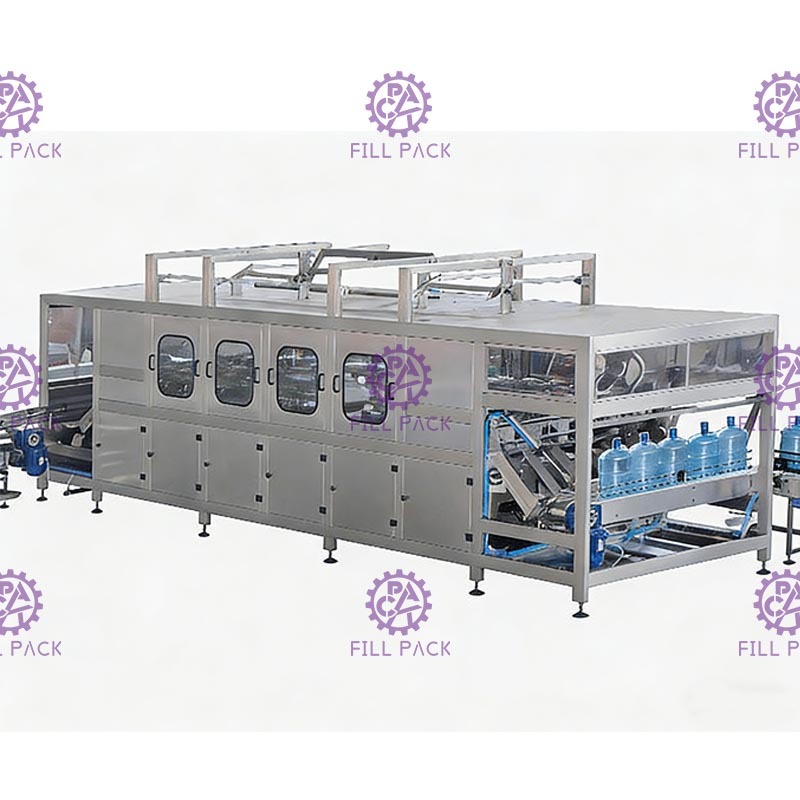

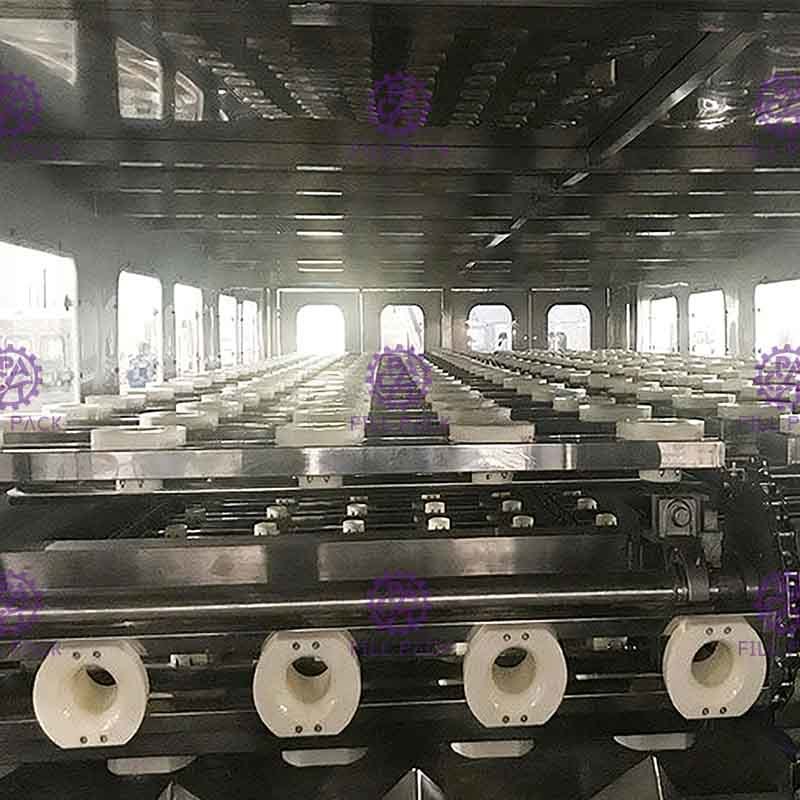

Anti Leakage QGF-2000 5 Gallon Water Filling Machine 1Anti Leakage QGF-2000 5 Gallon Water Filling Machine 2
