Drinkable Water SUS304 Mineral Water Bottling Machine
Contact Person : Alice Gu
Phone Number : 86-13862320828
WhatsApp : +8615862615333
| Minimum Order Quantity : | 1 set/pcs | Price : | USD$38,000.00-USD$43,000.00 |
|---|---|---|---|
| Packaging Details : | Wooden case pacakge | Delivery Time : | 30-35days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 5 sets/month |
| Place of Origin: | ZhangJiaGang JiangSu China | Brand Name: | FILL PACK |
|---|---|---|---|
| Certification: | CE, ISO9001 | Model Number: | QGF-1000 |
|
Detail Information |
|||
| Bottle Size: | 3-5 Gallon Bottle | Capacity: | 1000BPH |
|---|---|---|---|
| Control: | PLC | Dimension(L*W*H): | 7000*2100*2100mm |
| Belt Conveyor System: | 35m | Ink Jet Code Printer: | 347*220*100 |
| Light Checker: | 800*200*300 | Steam Shrink Tunnel: | 1000*450*1500 |
| High Light: | 1000BPH Mineral Water Bottling Machine,Monoblock pure water filling machine |
||
Product Description

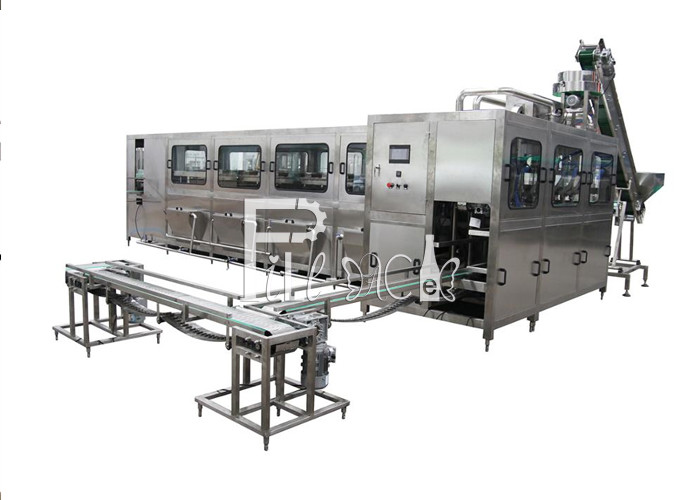

1000BPH Monoblock Gallon Filling Plant For Pure Water With Belt Press Capping
This gallon filler specially produces 3&5 gallons barreled drinking water. This series gallon filler integrates bottle washer, filler and sealer into one unit.
Equipment list Of Gallon Filling Plant:
| Items | Name of machine | Model | Size(mm) | Qty. |
| 1000BPH gallon water filler | ||||
| 1 | Automatic de-capper | BG-3 | 1200*800*1950 | 1set |
| 2 | Rotary external washer | XT-3 | 1800*1550*1750 | 1set |
| 3 | Monoblock jar rinser | CXJ-3 | 6000*2100*2100 | 1set |
| 3.1 | Automatic jar loading-unloading device | ST-6 | / | 1set |
| 4 | Automatic rotary jar filler | TG-12 | 3000*2200*2500 | 1set |
| 4.1 | Automatic belt capper | LDYG-1 | 600*200*300 | 1set |
| 4.2 | Automatic cap lifter-washer | SG-1 | 800*800*3000 | 1set |
| 5 | Steam shrink tunnel | SB-1000 | 1000*450*1500 | 1set |
| 6 | Light checker | DJ-1 | 800*200*300 | 1pc |
| 7 | Belt conveyor system | SYS-1 | 35m | 1set |
| 8 | Ink jet code printer | PM-368 | 347*220*100 | 1set |

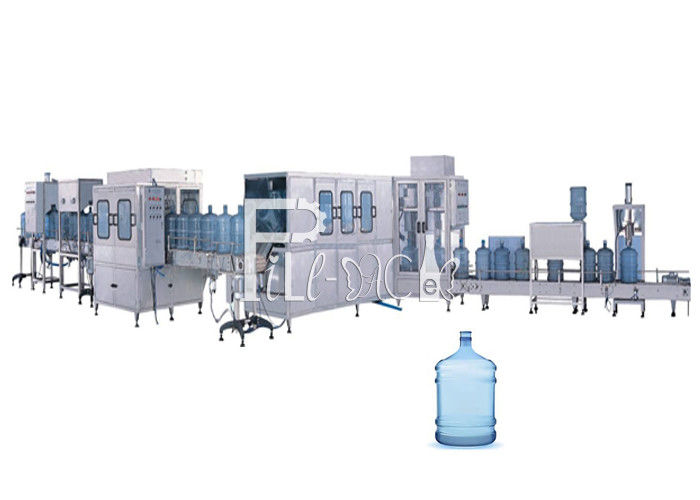

Gallon Filling Plant with 6 washing line:
Label Shrink Tunnel
Our Services
Proposal design and make budget:We are capable of providing specialized proposal design and make a general budget for you.
Equipment production&commissioning:We will arrange the production for you as soon as the order confirmed, and make sure the quality of products, We have client cases in different countries , we can provide theirproduction working video for you .
Factory layout design:Machines and factory layout design is also available after the proposal confirmed.
Bottle shape design:We can also help to do the bottle shape design for you according to your needs.
Label Design:We can also help to design the label for you, and you can share with us your idea too.
Raw Material supply:We are capable of provide one-stop service, so the raw material supply is also available.
