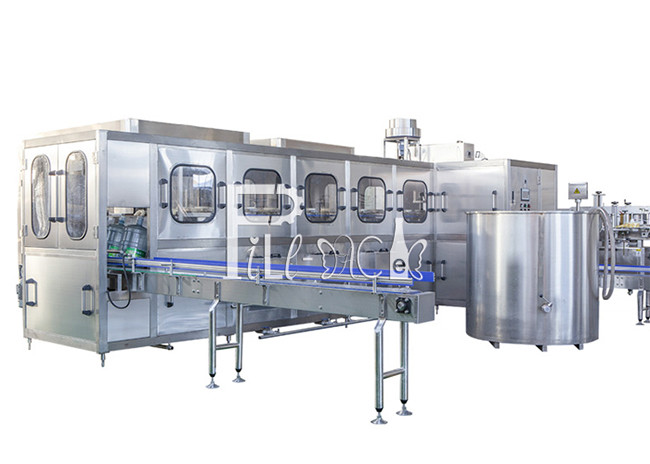

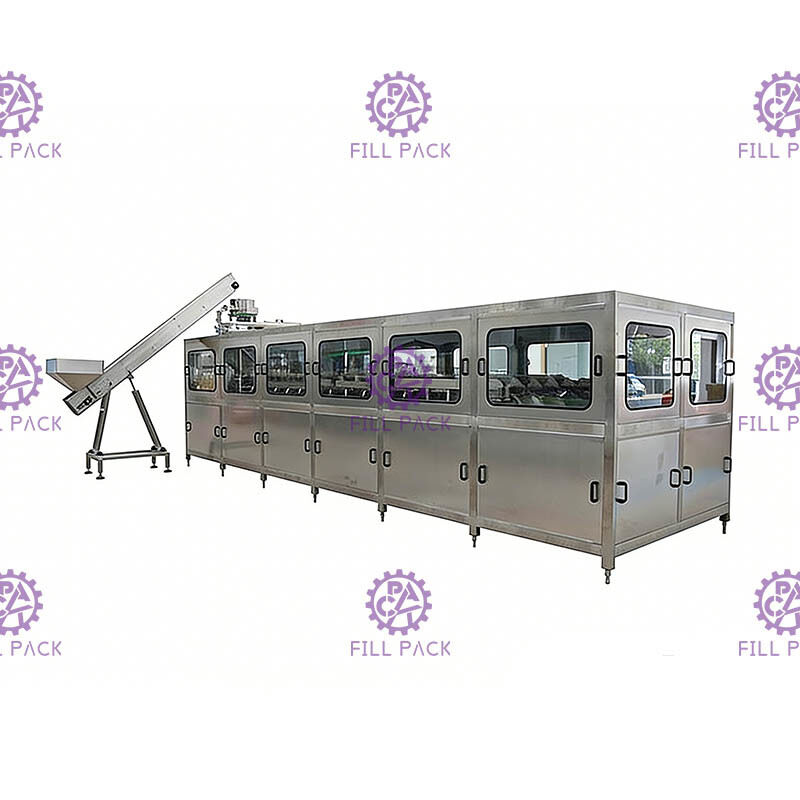

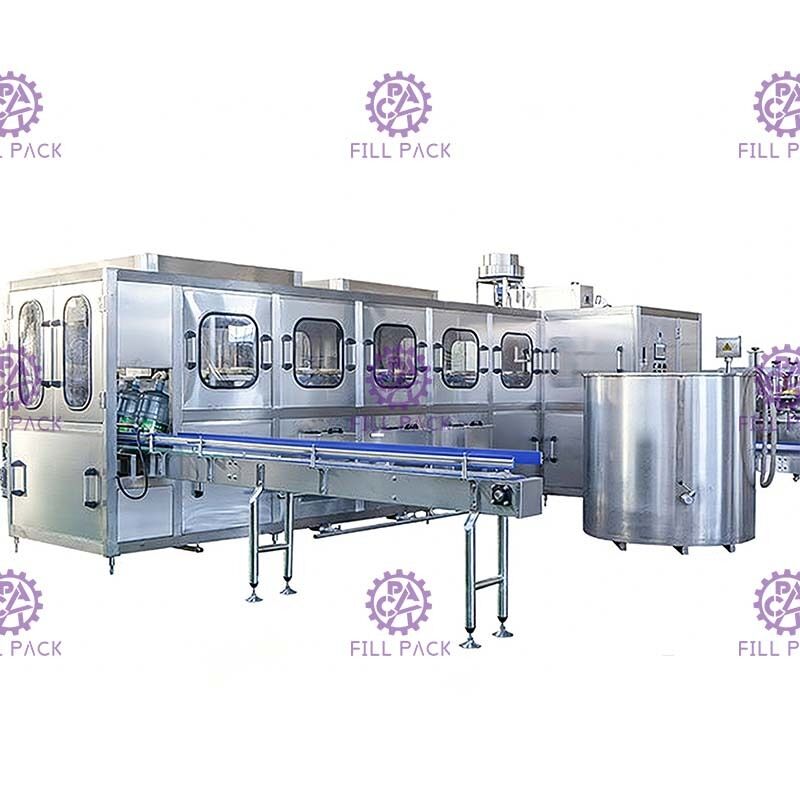

Drinkable Water SUS304 Mineral Water Bottling Machine
Contact Person : Alice Gu
Phone Number : 86-13862320828
WhatsApp : +8615862615333
| Minimum Order Quantity : | 1 set/pcs | Price : | USD$38,000.00-USD$43,000.00 |
|---|---|---|---|
| Packaging Details : | Wooden case pacakge | Delivery Time : | 30-35days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 5 sets/month |
| Place of Origin: | ZhangJiaGang JiangSu China | Brand Name: | FILL PACK |
|---|---|---|---|
| Certification: | CE, ISO9001 | Model Number: | QGF-1000 |
|
Detail Information |
|||
| Bottle Size: | 3-5 Gallon Bottle | Capacity: | 1000BPH |
|---|---|---|---|
| Material: | SUS 304 | Automatic Grade: | Automatic |
| Keyword: | Bottled Water Making Machine | Control: | PLC+Touch Screen |
| Capping Type: | Sealing | Video Outgoing-inspection: | Provided |
| High Light: | 1000BPH Gallon Filling Line,1000BPH 20 Liter Jar Filling Machine |
||
Product Description
10L- 20L 1000BPH Gallon Filling Line With Stainless Steel Material
Gallon Filling Line Equipment list:
| Items | Name of machine | Model | Size(mm) | Qty. |
| 1000BPH gallon filling line | ||||
| 1 | Automatic de-capper | BG-3 | 1200*800*1950 | 1set |
| 2 | Rotary external washer | XT-3 | 1800*1550*1750 | 1set |
| 3 | Monoblock jar rinser | CXJ-3 | 6000*2100*2100 | 1set |
| 3.1 | Automatic jar loading-unloading device | ST-6 | / | 1set |
| 4 | Automatic rotary jar filler | TG-12 | 3000*2200*2500 | 1set |
| 4.1 | Automatic belt capper | LDYG-1 | 600*200*300 | 1set |
| 4.2 | Automatic cap lifter-washer | SG-1 | 800*800*3000 | 1set |
| 5 | Steam shrink tunnel | SB-1000 | 1000*450*1500 | 1set |
| 6 | Light checker | DJ-1 | 800*200*300 | 1pc |
| 7 | Belt conveyor system | SYS-1 | 35m | 1set |
| 8 | Ink jet code printer | PM-368 | 347*220*100 | 1set |
| OPTION | ||||
| 8 | Automatic neck labeling machine | TB-50 | 1000*800*2000 | 1set |
| 8.1 | Steam shrink tunnel | SB-1000 | 1000*450*1500 | 1set |
| 8.2 | Steam generator | 9KW | 630*560*1360 | 1set |
| 9 | Automatic stacker | 5*4*3 | 2700*2000*2000 | 1set |
| Containers and Specifications | ||||
| Project Name: | Mineral Water / | |||
| High Quality 10L- 20L 1000BPH Gallon Filling Line With Stainless Steel Material | Pure Water | |||
| Material | Shape | Filling volume | Filling Type | Conveyor Mode |

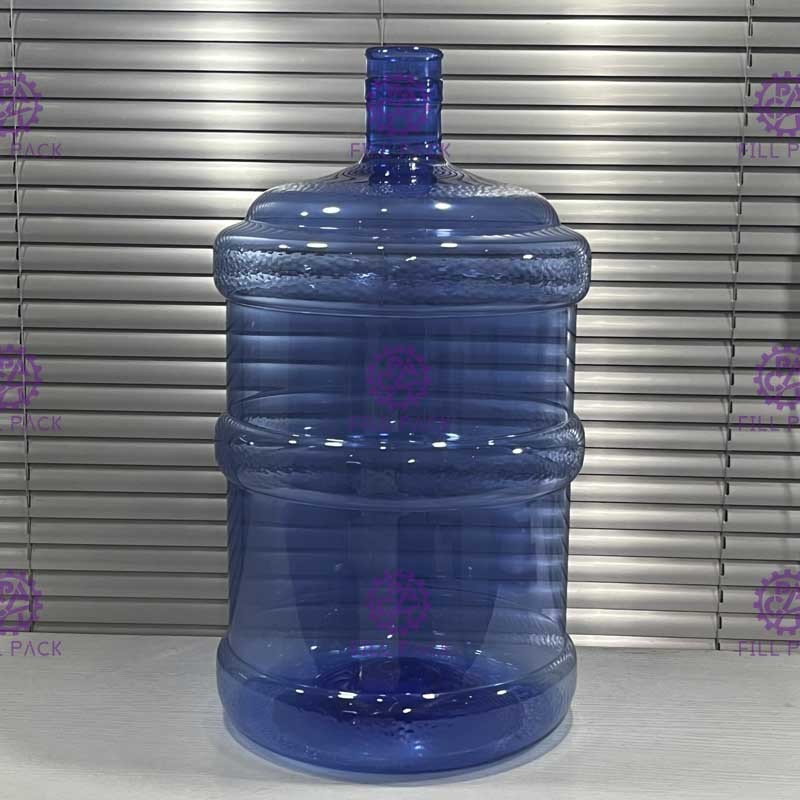

| PC / PET | Round or Square | 3 - 5 Gallon | Gravity filling | Conveyor belt |
| Normal temperature | ||||
| Adjustable Specifications Of Bottle Type | Size of Barrel : ф270×490mm | |||
| Customers need to buy additional change-over parts for the different bottles. | ||||
| If using square bottles, then bottle separating system will be added. | ||||
| Container Label | Sticker Label / Shrink Wrap Label / Prinetr Label | |||
| User Ambient Conditions | Temperature:10～40℃；Humidity:No dew | |||
| User Electrical Supply Specification | Voltage:380V±5%, 3phase； Frequency:50HZ±1% | |||
Features Of Gallon Filling Line :
1. This gallon water production machine specially produces 3 & 5 gallons barreled drinking pure water.
2. This gallon water production machine integrates bottle washer, filler and sealer into one unit.
3. In order to achieve the purpose of washing and sterilizing, bottle washer adopts multiple liquid injections washing and disinfectant spray, and washing solution can be used circularly. The sealer can seal bottle caps automatically.
4. This gallon water production machine with water spraying device to sterilize caps of bottles in order to ensure those caps are aseptic and healthy.

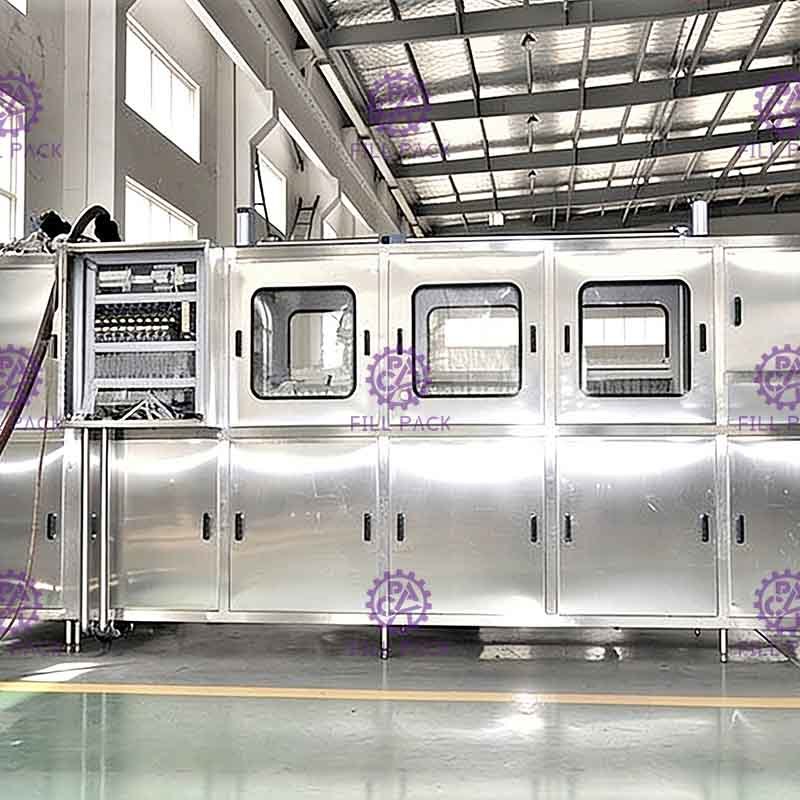

Detailed Images with stainless steel material
