Drinkable Water SUS304 Mineral Water Bottling Machine

Minimum Order Quantity : 1 set/pcs Price : USD$87,000.00-USD$92,000.00
Packaging Details : Wooden case Delivery Time : 30-35days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 5 sets/month
Place of Origin: ZhangJiaGang JiangSu China Brand Name: FILL PACK
Certification: CE, ISO9001 Model Number: QGF-1200

Detail Information

Bottle Size: 3-5 Gallon Capacity: 1200BPH
Material: Stainless Steel 304 Packaging: Wooden Case
Control: PLC Condition: New
Automatic Grade: Automatic Feature: Aseptic
High Light:

1200BPH 5 Gallon Filling Machine


1200BPH 3 Gallon Filling Machine


SUS 304 Gallon Filling Machine

Product Description

1200B/H 20L Filling Machine For Drinkable Water With SUS304 Shell


Brief of 20L Filling Machine:

    QGF barrel filling line is used to produce 3-5 gallon drinking water. This machine composed with Rinse, filler and capper. It is the ideal equipment for mineral water, distilled water and pure water producing process. The machine is made of great stainless steel which is corrosion resistant and easy cleaning. All the pneumatic parts are from the famous brand AIRTAC. Both the inner and outer shower nozzle for washing barrel adopts the special technology equipment from American Sprayer Company. The machine works reliably and efficiently based on the compact structure and high automatic technology. It Is a fully automatic barreled water producing equipment combined with machine, electronic and pneumatic components.


Equipment list of 20L Filling Machine:

Items Name of machine Model Size(mm)
1.1 Automatic de-capper BG-3 1200*800*1950
1.2 Rotary external washer XT-3 1800*1550*1750
1.3 Monoblock jar rinser CXJ-3 6000*2100*2100
1.3.1 Automatic jar loading-unloading device ST-6 /
1.4 Automatic rotary jar filler TG-12 3000*2200*2500
1.4.1 Automatic belt capper LDYG-1 600*200*300
1.4.2 Automatic cap lifter-washer SG-1 800*800*3000
1.5 Steam shrink tunnel SB-1000 1000*450*1500
1.6 Light checker DJ-1 800*200*300
1.7 Belt conveyor system SYS-1 35m
1.8 Ink jet code printer PM-368 347*220*100
1.8 Automatic neck labeling machine TB-50 1000*800*2000
1.8.1 Steam shrink tunnel SB-1000 1000*450*1500
1.8.2 Steam generator 9KW 630*560*1360
1.9 Automatic stacker 5*4*3 2700*2000*2000


Features of 20L Filling Machine:

1. This gallon water production machine specially produces 3&5 gallons barreled drinking pure water.
2. This gallon water production machine integrates bottle washer, filler and sealer into one unit.
3. In order to achieve the purpose of washing and sterilizing, bottle washer adopts multiple liquid injections washing and disinfectant spray, and washing solution can be used circularly. The sealer can seal bottle caps automatically.
4. This gallon water production machine with water spraying device to sterilize caps of bottles in order to ensure those caps are aseptic and healthy.
5. This gallon water production machine also can automatically carry out bottle washing, sterilizing, filling, capping, counting and products discharging.


Detailed Images

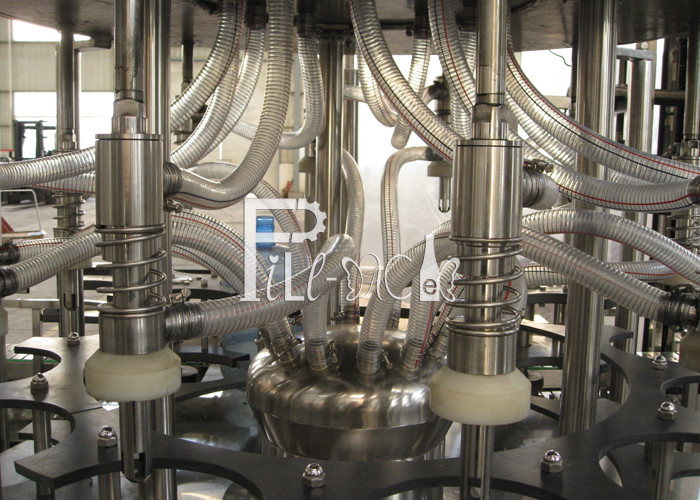

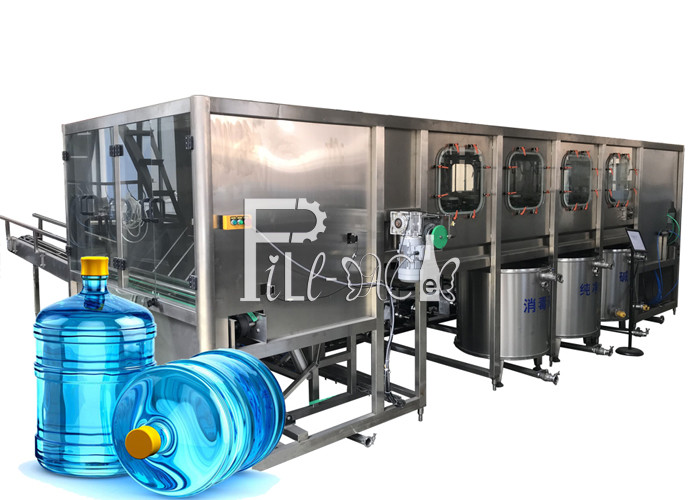

Drinkable Water SUS304 Mineral Water Bottling Machine 0

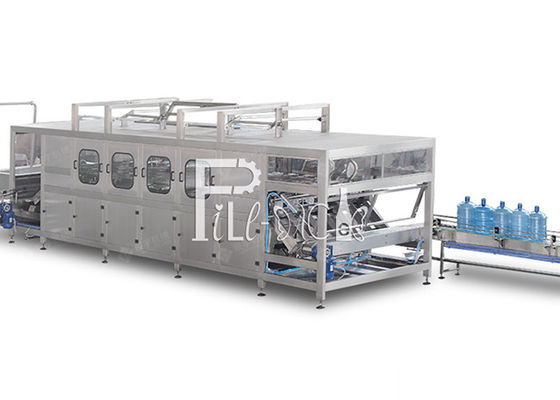

Drinkable Water SUS304 Mineral Water Bottling Machine 1
