Concave Convex Shape 3 In 1 20 Liter Jar Filling Machine
Contact Person : Alice Gu
Phone Number : 86-13862320828
WhatsApp : +8615862615333
| Minimum Order Quantity : | 1 set | Price : | USD $18,000-$20,000/set |
|---|---|---|---|
| Packaging Details : | wooden case | Delivery Time : | 15-20 working days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 5 sets/month |
| Place of Origin: | ZhangJiaGang JiangSu China | Brand Name: | FILL PACK |
|---|---|---|---|
| Certification: | CE, ISO9001 | Model Number: | QGF600 |
|
Detail Information |
|||
| Bottle Size: | 10~20 L Bottle | Capacity: | 600BPH |
|---|---|---|---|
| Warranty: | 1 YEAR | Voltage: | 220V/380V 50HZ |
| Dimension(L*W*H): | 5000*2300*1800mm | Filling Accuracy: | 99% |
| Size Of Barrel: | ф276×490mm | Conveyor Mode: | Conveyor Belt |
| High Light: | SUS 304 3 Gallon Filling Machine,SUS 304 5 Gallon Filling Machine,600BPH mineral water filling machine |
||
Product Description
Description of 600BPH 3 / 5 Barrel bottling line with SUS 304 for mineral water

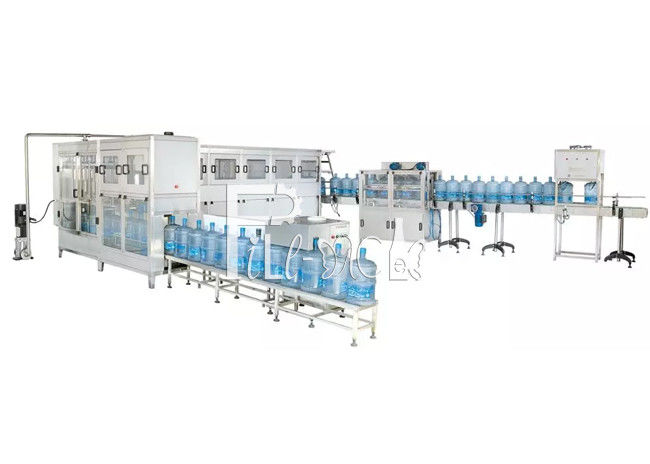

The whole 5 Barrel bottling line includes Automatic De-capper, Rotary external washer, L type Washer/Filler/Capper, Heat Shrinking Machine, Checking Light, Ink jet code printer.
|
Containers and Specifications of 5 Barrel bottling line
|
||||
|
Project Name:
Full Automatic Complete 600BPH 3-5 Gallon Barrel Filling Production Line |
Mineral Water /
Pure Water |
|||
|
Material
|
Shape
|
Filling volume
|
Filling Type
|

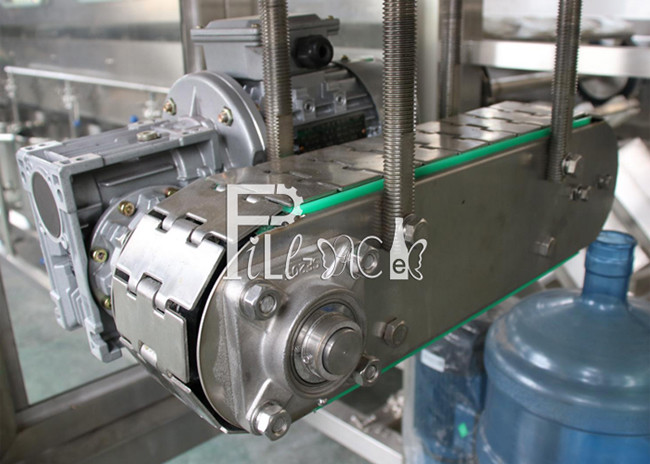

Conveyor Mode
|
|
PC / PET
|
Round or Square
|
3 - 5 Gallon
|
Gravity filling
Normal temperature |
Conveyor belt
|
|
Adjustable Specifications
of Bottle Type |

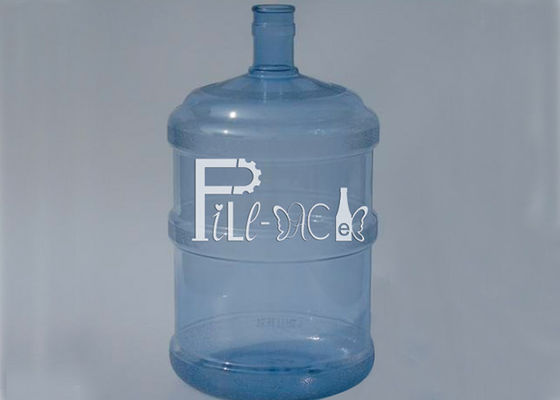

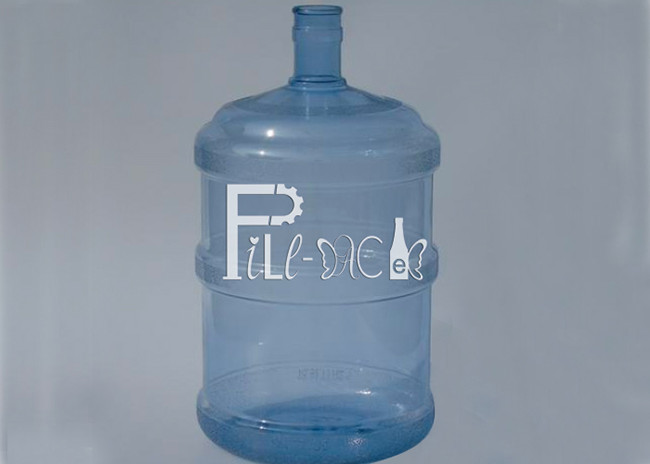

Size of Barrel : ф276×490mm
|
|||
|
Customers need to buy additional change-over parts for the different bottles.
If using square bottles, then bottle separating system will be added. |
||||
|
Container Label
|
Sticker Label / Shrink Wrap Label / Prinetr Label
|
|||
|
User Ambient Conditions
|
Temperature:10～40℃；Humidity:No dew
|
|||
|
User Electrical Supply Specification
|
Voltage:380V±5%, 3phase； Frequency:50HZ±1%
|
|||

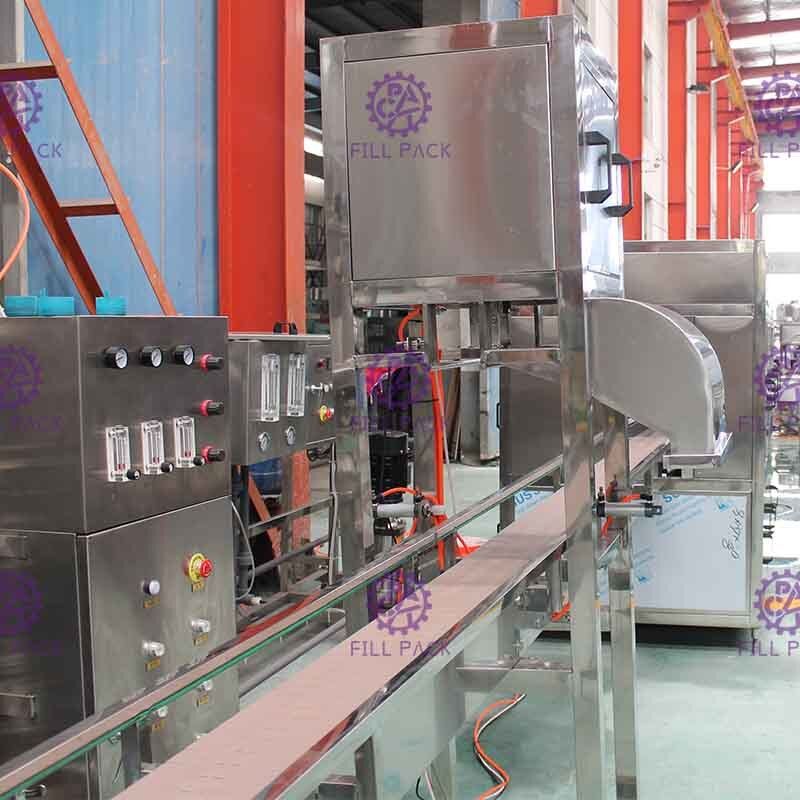

1, Automatic De-capper:
De-capping head: 2 heads
Dimension: 900*600*2000mm
Weight: 130kg
2, Rotary external washer

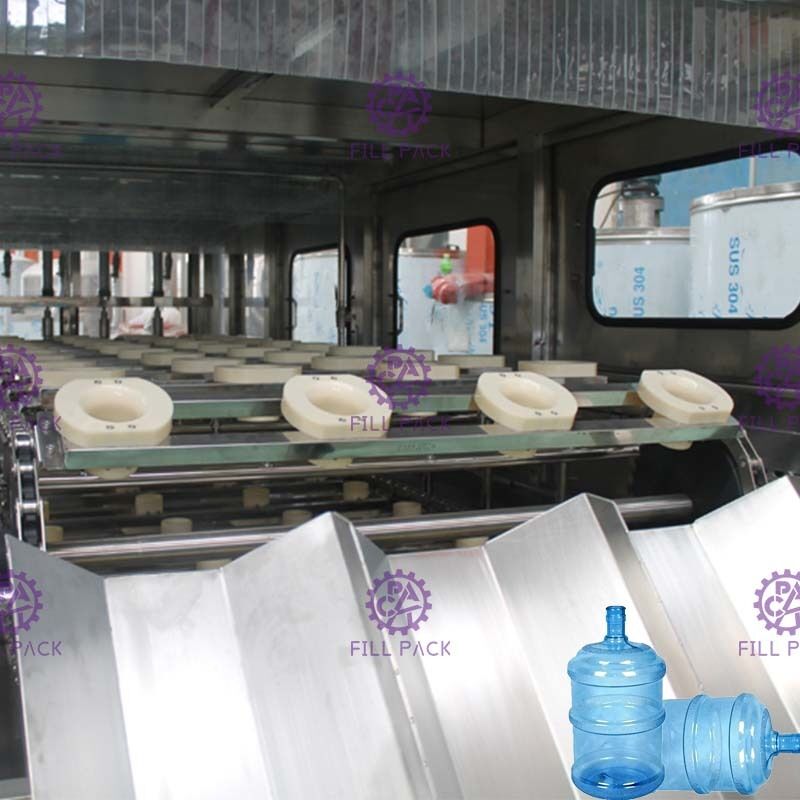

3, Monoblock gallon rinser-filler-capper
1, Shape structure adopted concave and convex shape,
perfect appearance also reduces the leakage.
2, The thickness of the stainless steel plate which used for 600bph is 3mm.
3, Tank and the heating pipe in tank are removable which become more clean sanitation.
Filling Part Features.
1, Uploading and dropping barrels changed from 45 degree to translatory which is more stable.
2, Nozzle can insert into 10-15cm of the barrel in order to rinse little impurities down. Rinsing pump is separately controlled by different magnetic valves. Pump only work when there is barrel on that. It can avoid the mixture of different cleaning fluid.

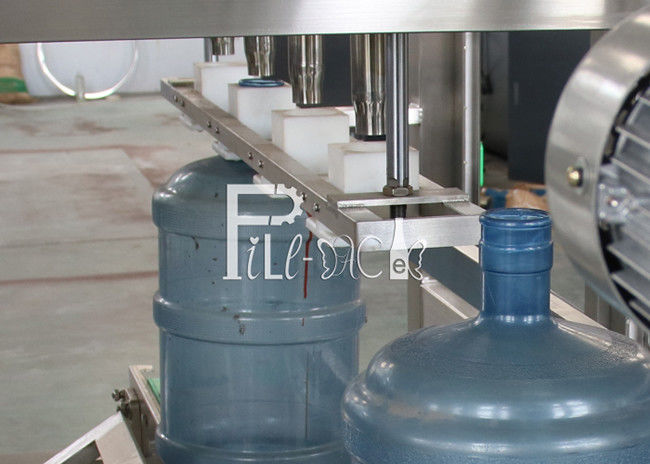

Capping Parts.
1, Liquid level difference is controlled in 1cm.
2, Machine is equipped with Cap Sterilization system, which is 1.2m. The system make products more clean and safe by using sterilization and finished water.
3, Customers can choose to equip ABB/SEW motor, GRUNDFOS water pump, FESTO pneumatic component.

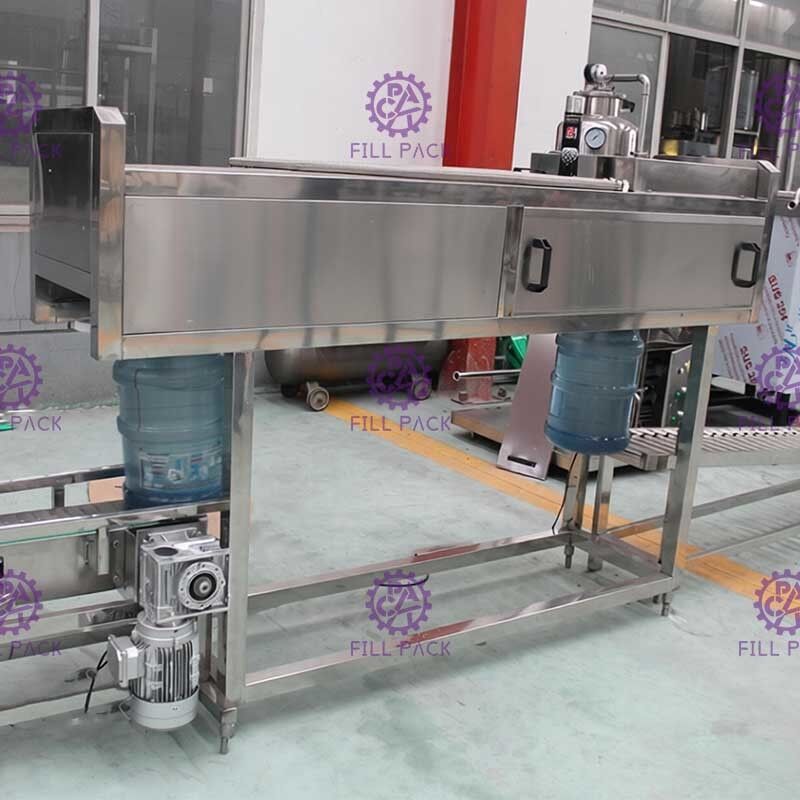

4, Steam shrink Machine
5, Ink jet code printer
6, Automatic cap lifter-washer
Dimension: 800*800*3000
Weight: 130kg
