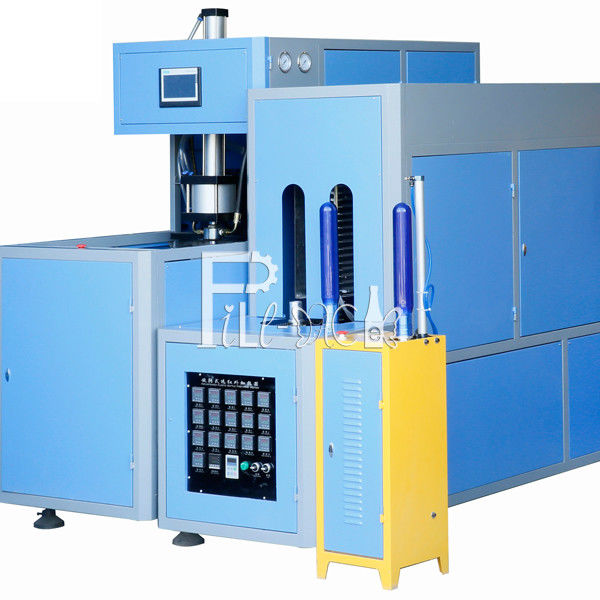

55mm Neck 5 Gallon 180BPH PET Jar Blowing Machine

Minimum Order Quantity : 1 set Price : 9600USD
Packaging Details : Wooden Case Package Delivery Time : 15-20days after deposit receipt
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 20 sets/month
Place of Origin: China,JiangSu,Zhangjiagang Brand Name: FillPack
Certification: CE. ISO9001 Model Number: FP-120

Detail Information

Volume:: 10L-20L(3-5Gallon) Clamping Force:: 330KN
Warranty:: 1 YEAR Power:: 15KW
Theoretical Output: 90-180PCS/H Preform Length 1: 5mm-460mm
Name: PET Jar Blowing Machine Condition: New
High Light:

15KW PET jar blowing machine

,

90BPH pet bottle moulding machine

,

180BPH PET Jar Blowing Machine

Product Description

Semi Automatic PET 5 gallon bottle blowing equipment for neck diameter 55mm



5 gallon bottle blowing equipment Features:

1. FP-120 5 gallon blow molding machine is especially used to produce 3 gallon and 5 gallon bottles and is widely used to produce any shape of plastic from PET with neck finishes from 15mm-200mm.

2. Perfect function with economic investment.

3. Small size and compact construction with no space waste.

4. Easy to operate and maintain ,operation by one person .

5. Saving power and uneasy to worn out ,Adopting new double crank four bars to lock mould, the cross fixed. Providing high pressure blowing system.

6. We can provide performs and various bottle& cap molds for 5 gallon and 3gallon bottles to meet customer’s requirements.



5 gallon bottle blowing equipment Technology advantage:

1. Special design,high rigid compound die structure

2. Wide adaptability, suitable for every type mould thickness

3. Adjust conveniently

4. No mould rolling out

5. More energy conservation,no need much air supply

6. High burnish principal axis, with very precise polishing, light action and low noise.

7. Short mould stroke,quick action

8. All casting, with long timing process,very small transformation,can meet your precise request 100%.



5 gallon bottle blowing equipment Main Parameter:

Model FP-120

Container









Product material PET
Volume 10L-20L(3-5Gallon)
Theoretical output 90-180PCS/H
Preform length 15mm-460mm
Preform inner diameter φ5mm-200mm

Molding







Max.mould plate Dimension(L x W) 420x500mm
Max.mould thickness 40mm
Clamping force 330KN
Mould opening stroke 38mm

Machine size and weight









Main machine (L x W x H) 218*77*196cm
Main machine weight 1000Kg
Heater (L x W x H) 237*68*165cm
Heater weight 380Kg
Power 40kw



55mm Neck 5 Gallon 180BPH PET Jar Blowing Machine 0
