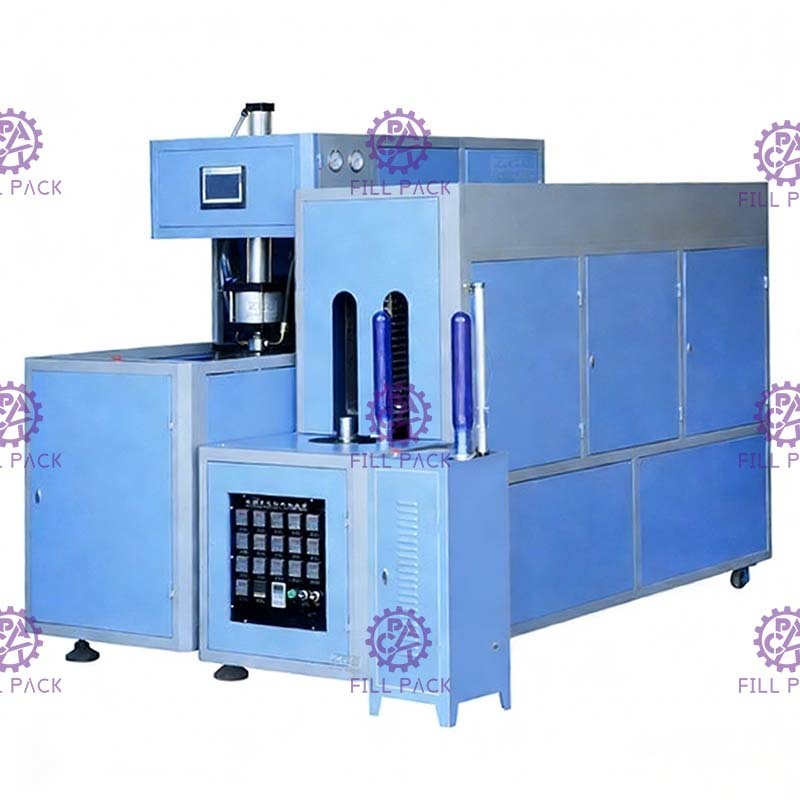

One Blower 150BPH Plastic Bottle Making Machine

Minimum Order Quantity : 1 set Price : 9600USD
Packaging Details : Wooden Case Package Delivery Time : 15-20days after deposit receipt
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 20 sets/month
Place of Origin: China,JiangSu,Zhangjiagang Brand Name: FillPack
Certification: CE. ISO9001 Model Number: FP-120

Detail Information

Max Bottle Valume: 20L Oven Size:: 2450*680*1580mm
Blow Moulding:: Stretch Blow Moulding Application:: Bottle
Output: 150PCS/H Cavity: 1 Cavity
Mould Thickness: 200~450mm Condition: New
High Light:

150BPH Plastic Bottle Making Machine


150BPH bottle blowing equipment

Product Description

150BPH 5 gallon water bottle making machine with one heater and one blower


5 gallon water bottle making machine  main Features:

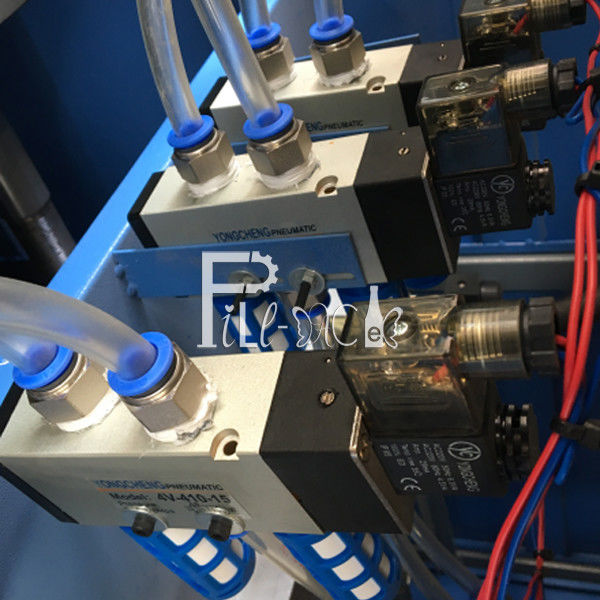

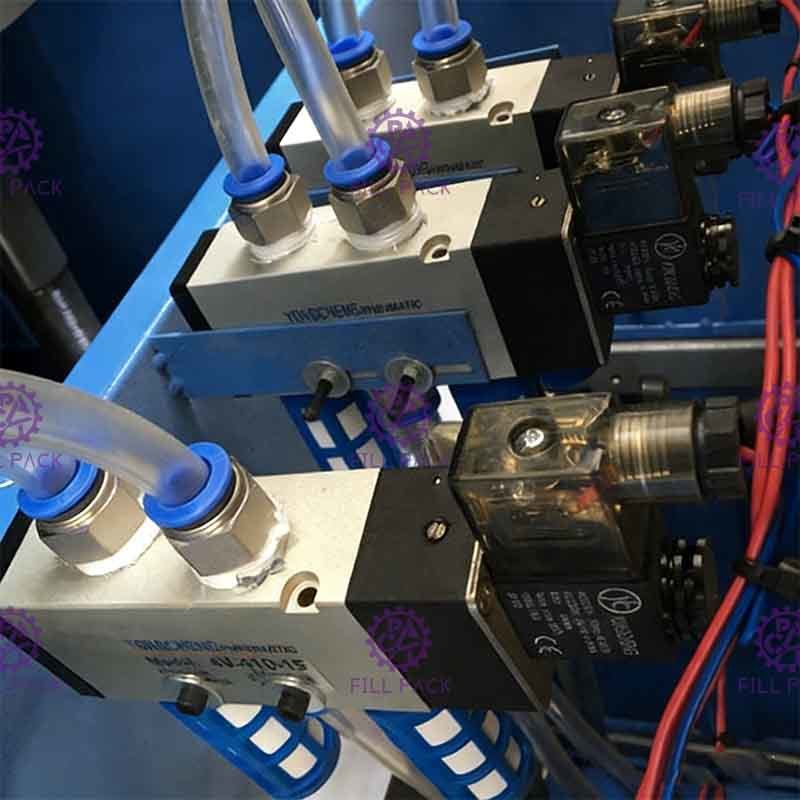

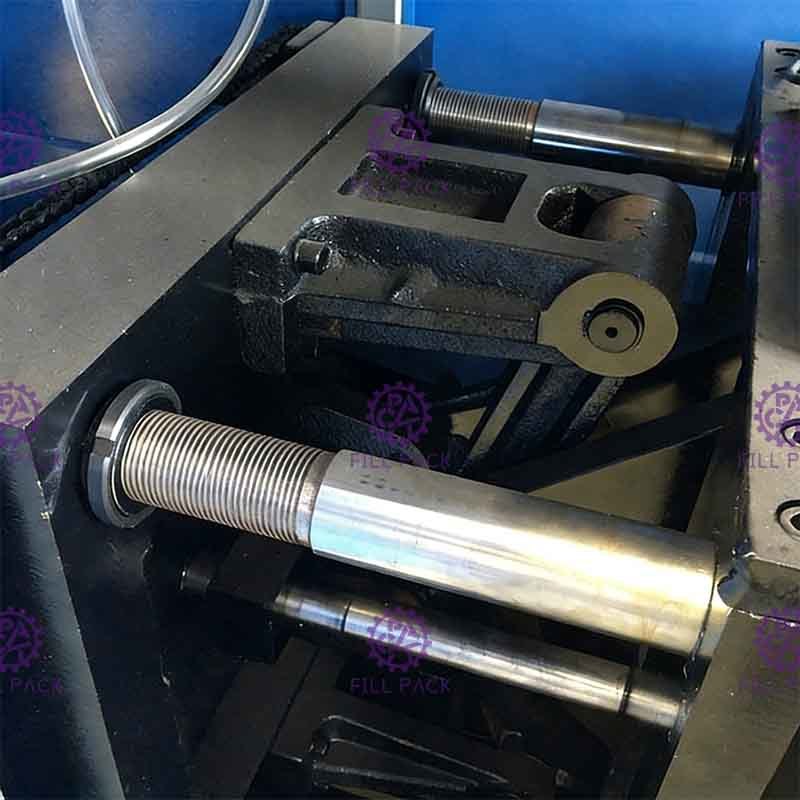

1. Using the new clamping system with double crank four tie-bars,the cross balanced fixed glide.

2. The seal,the stretch use the parallel bars union and combined design,which is advantageous to the product formation.

3. The advanced air course design,the single-channel or single-channel air admission;low pressure for clamping,sealing and stretching;the high pressre for blowing the bottle.

4. PLC control system,the operaton is easy.

5. With infrared heating,controllable constant pressure control,frequency conversion,thus achieves blows the perfect bottle.


5 gallon water bottle making machine main Parameter:

Type FP-120
output According to bottle type 150PCS/H
Product species Bottle diameter 150mm-300mm
bottle height 250mm-550mm
Bottle mouth diameter 15mm-100mm
mould cavity 1cavities
mould thickness 200~450mm
Effective area of mold 600*600mm
main power Power 380v 4Phase /220v 2Phase 50/60HZ
install power/actual power 26kw/11kw
High pressure air compressor 1.2m3/min 3.0MPa
Cold dry machine 2.0m3/min 3.0MPa 1set
cooling water Cooling water quantity 15L/min
Main machine size Length width height/weight 2150*730*1700mm/950kg
Oven size Length width height /weight 2450*680*1580mm/650kg

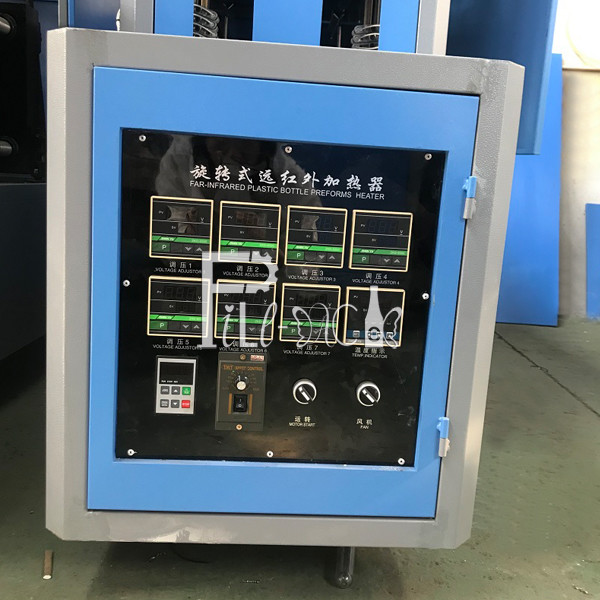

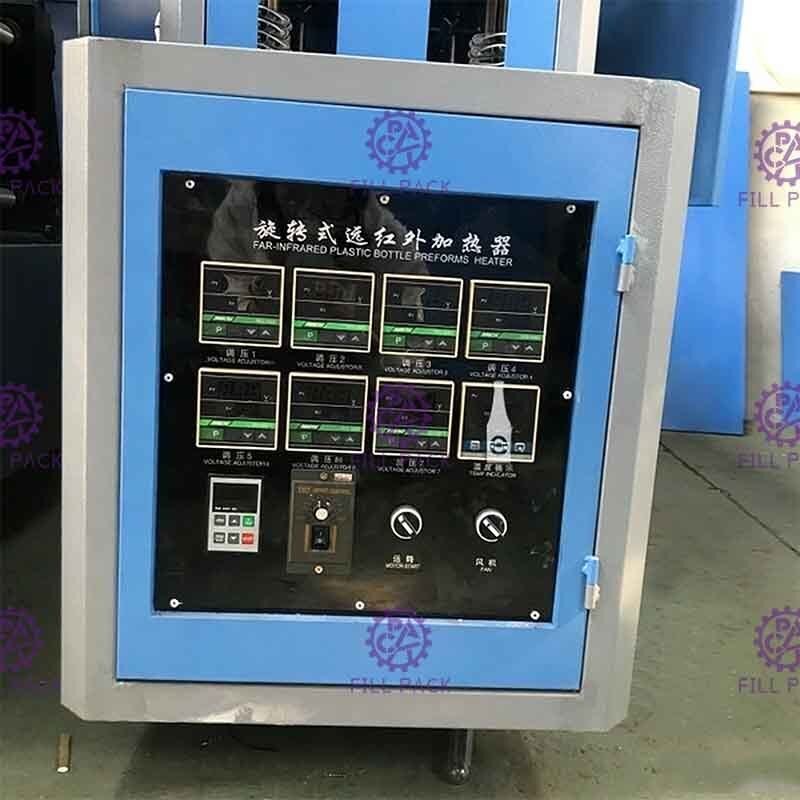

Unique heating system, accurate temperature control and easy adjustment.

One Blower 150BPH Plastic Bottle Making Machine 0


High pressure air compressor
Air compressor system, tie-in use combination series high pressure gas system. Convenient maintenance, easy inspection and
One Blower 150BPH Plastic Bottle Making Machine 1
Bottle Mold
Can customize bottles of different sizes and different shapes.
One Blower 150BPH Plastic Bottle Making Machine 2
