Touch Screen 60BPH Gallon Bottle Blowing Machine
Contact Person : Alice Gu
Phone Number : 86-13862320828
WhatsApp : +8615862615333
| Minimum Order Quantity : | 1 set | Price : | 9600USD |
|---|---|---|---|
| Packaging Details : | Wooden Case Package | Delivery Time : | 15-20days after deposit receipt |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 20 sets/month |
| Place of Origin: | China,JiangSu,Zhangjiagang | Brand Name: | FillPack |
|---|---|---|---|
| Certification: | CE. ISO9001 | Model Number: | FP-4 |
|
Detail Information |
|||
| Machine Type:: | 5 Gallon PET Bottle Blow Molding Machine | Max.heating Power:: | 32KW |
|---|---|---|---|
| Max Bottle Volume:: | 20L | Weight Of Main Blower: | 1500kg |
| Theoretical Output: | 150pcs/h | Mould Thickness: | 260-410mm |
| Condition: | New | Working Pressure: | 0.8Mpa |
| High Light: | 150BPH Plastic Bottle Blow Molding Machine,150BPH 5 gallon blow molding line |
||
Product Description

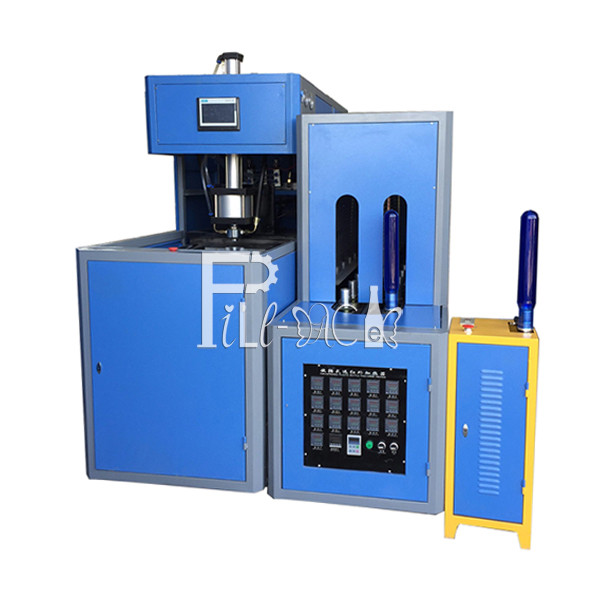

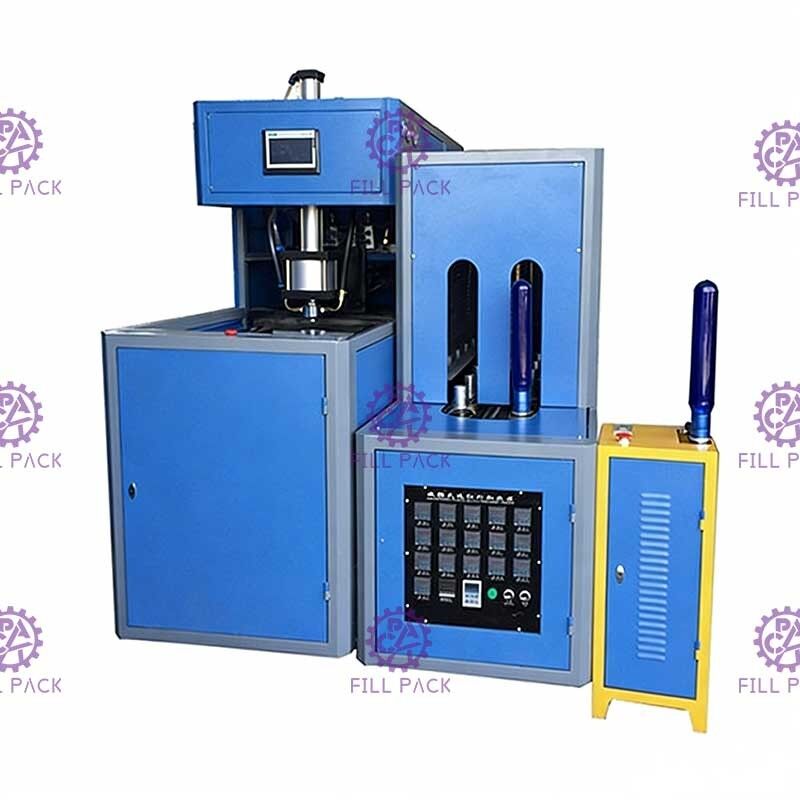

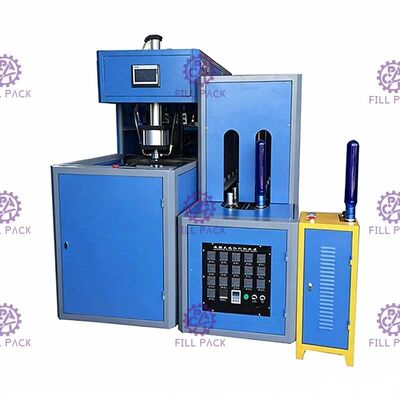

Semi Automatic Plastic 5 gallon blow molding line for water bottling line
5 gallon blow molding line Main Features:
1) This machine uses a well-known brand PLC to control the machine, which is easy to operate.
2) A total of 19 brackets to ensure capacity.
3) Each layer of lamp is independently controlled and suitable for various preforms.
4) Control the temperature of the lamp to control the speed of the entire heater.
5) The heater is equipped with a temperature control system. Make the machine suitable for long hours of work.
6) 16-layer heating tunnel. A total of 34 lamps were heated.

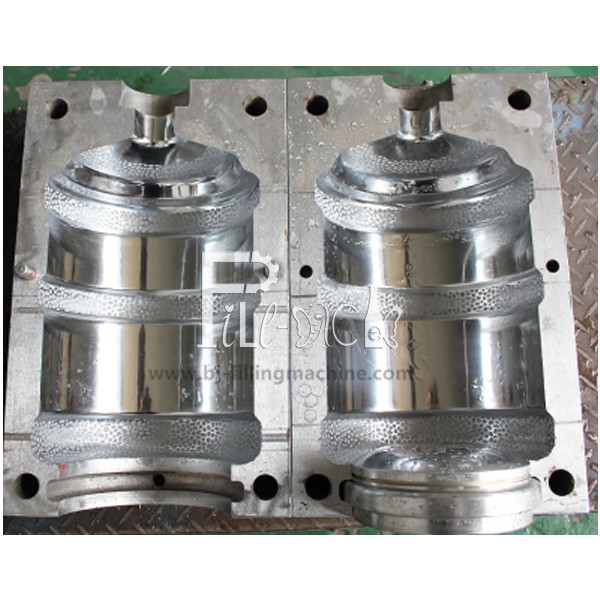

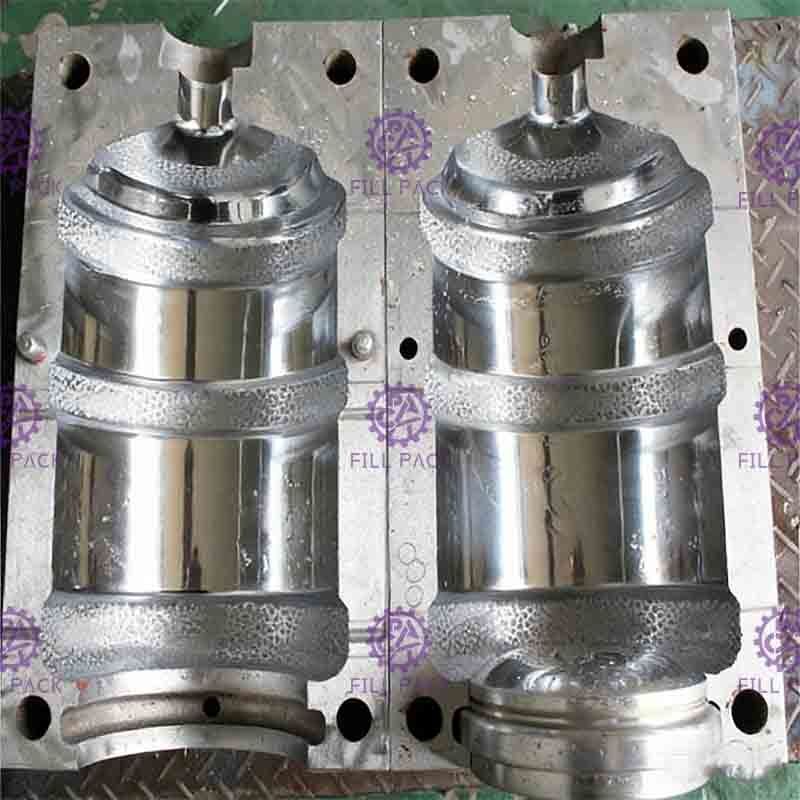

7) The raw material of the mold is #45 steel or 7075 aircraft aluminum. The surface is chrome plated to avoid rust.
5 gallon blow molding line Main Parameter:
| Theoretical Output | pcs/h | 150 |
| Max.container volume | L | 20 |
| Max.neck diameter | mm | 200 |
| Max.container diameter | mm | 300 |
| Max.container height | mm | 520 |
| Mould Thickness | mm | 260-410 |
| Mould Stroke | mm | 330 |
| Heat Lamp Amount | pcs | 25.6 |
| Max.heating power | kw | 32 |
| Power of Main Blower | kw | 26 |
| Actual power consumption | kw | 16-20kw |
| Working Pressure | Mpa | 0.8 |
| Low pressure consuming | Ltr/min | 600 |
| Blowing pressure | Mpa | 3.5 |
| High pressure consuming | Ltr/min | 600 |
| Measurement of Main Blower | mm | 2300*750*1860 |
| Measurement of elevator | mm | 2280*700*1630 |
| Weight of Main Blower | kg | 1500 |
