Touch Screen 60BPH Gallon Bottle Blowing Machine
Contact Person : Alice Gu
Phone Number : 86-15862615333
WhatsAPP : +8615862615333
| Minimum Order Quantity : | 1 set | Price : | 9600USD |
|---|---|---|---|
| Packaging Details : | Wooden Case Package | Delivery Time : | 15-20days after deposit receipt |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 20 sets/month |
| Place of Origin: | China,JiangSu,Zhangjiagang | Brand Name: | FillPack |
|---|---|---|---|
| Certification: | CE. ISO9001 | Model Number: | FP-120 |
|
Detail Information |
|||
| Capacity:: | 120BPH | Advantages:: | Saving Energy |
|---|---|---|---|
| Voltage:: | Acoording Customer Country | Warranty:: | 1 YEAR |
| Product Material: | PET | Control: | PLC Control System |
| Clamping Force: | 330 | Condition: | New |
| Highlight: | 120BPH preform bottle blowing machine,120BPH pet bottle blowing machine,120BPH pet preform manufacturing machine |
||
Product Description

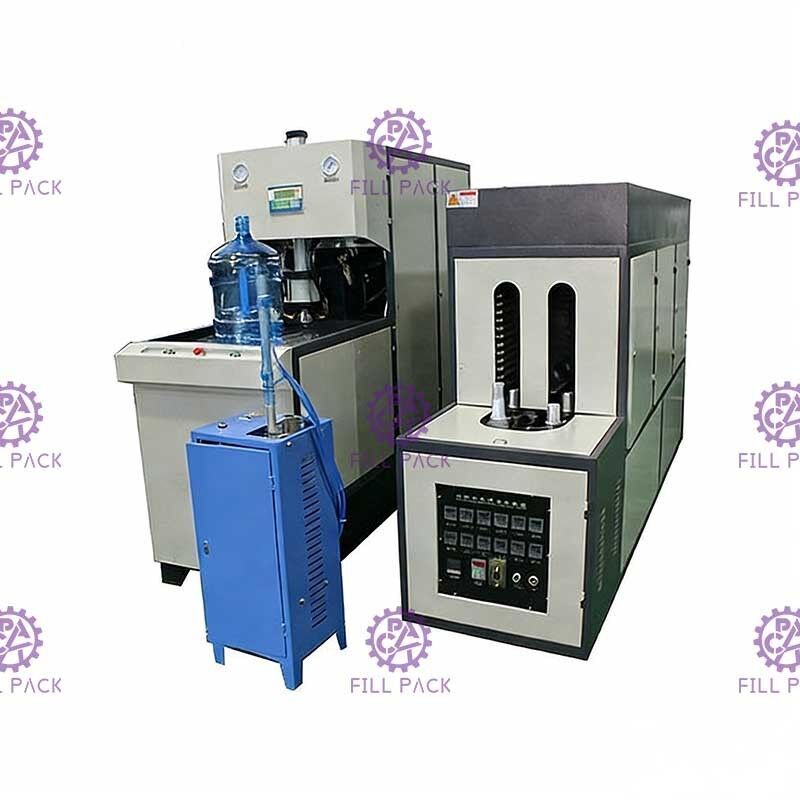

Manual perform 5 gallon bottle blow molding plant for capacity 120BPH
5 gallon bottle blow molding plant main Features:
1. Using the new clamping system with double crank four tie-bars,the cross balanced fixed glide.
2. The seal,the stretch use the parallel bars union and combined design,which is advantageous to the product formation.
3. The advanced air course design,the single-channel or single-channel air admission;low pressure for clamping,sealing and stretching;the high pressre for blowing the bottle.
4. PLC control system,the operaton is easy.
5. With infrared heating,controllable constant pressure control,frequency conversion,thus achieves blows the perfect bottle.
5 gallon bottle blow molding plant main Parameter:
| Model | FP-120 | ||
| Container | Product material | / | PET |
| Volume | L | 20(5gallon) | |
| Theoretical output | PCS/H | 60-180 | |
| Height | MM | ≤500 | |
| Preform inner diameter | MM | ≥φ16 | |
| Mould | Max.mould plate Diameter(L * W) | MM | 420*500 |
| Max.mould thickness | MM | 400 | |
| Clamping force | KN | 330 | |
| Mould opening stroke | MM | 318 | |
| Machine size and weight | Main machine (L * W * H) | MM | 2180*770*1960 |
| Main machine weight | KG | 1000 | |
| Heater (L * W * H) | MM | 2370*680*1650 | |
| Heater weight | KG | 380 | |
| Power | KW | 40 | |

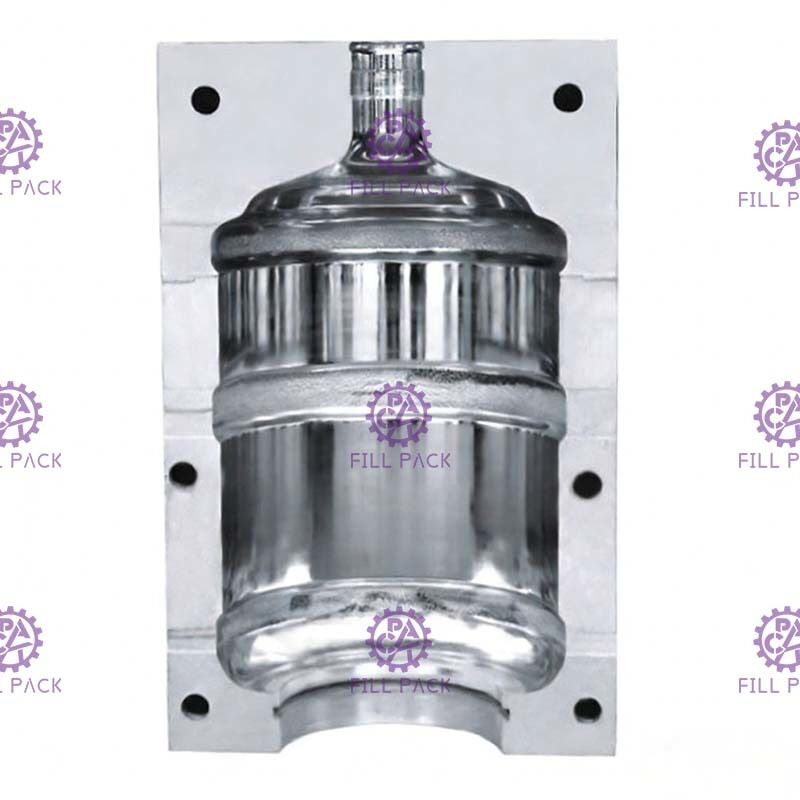

The Bottle Mold
1. The mold's raw material is #45 steel or 7075 Aircraft Aluminum. chrome plating on the surface,avoid rust.
2. Bottle design is customizable.
