One Heater 120BPH Plastic Bottle Manufacturing Machine

Minimum Order Quantity : 1 set Price : 9600USD
Packaging Details : Wooden Case Package Delivery Time : 15-20days after deposit receipt
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 20 sets/month
Place of Origin: China,JiangSu,Zhangjiagang Brand Name: FillPack
Certification: CE. ISO9001 Model Number: FP-120

Detail Information

Voltage:: 380V/50HZ Suitable Bottle:: 5 Gallon Bottle
Applicable Industries:: Manufacturing Plant Net Weight:: 2000kgs
Name: Plastic Bottle Manufacturing Machine Theoretical Output: 80-120 BPH
Clamping Stroke: 450 MM Condition: New
High Light:

120BPH plastic bottle making machine

,

120BPH Plastic Bottle Manufacturing Machine

Product Description

1 cavity 5 gallon Bottle manufacturing machine for neck diameter 55mm



5 gallon Bottle manufacturing machine Specifications:

1. Semi-automatic, new condition

2. Cavity:1

3. Bottle volume: 10-20 L

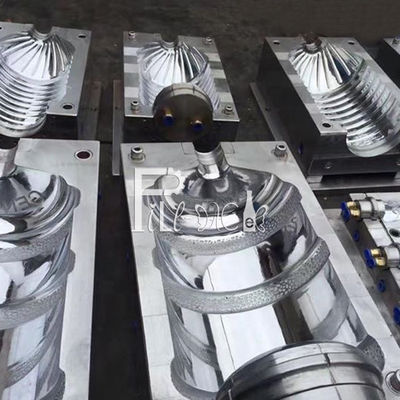

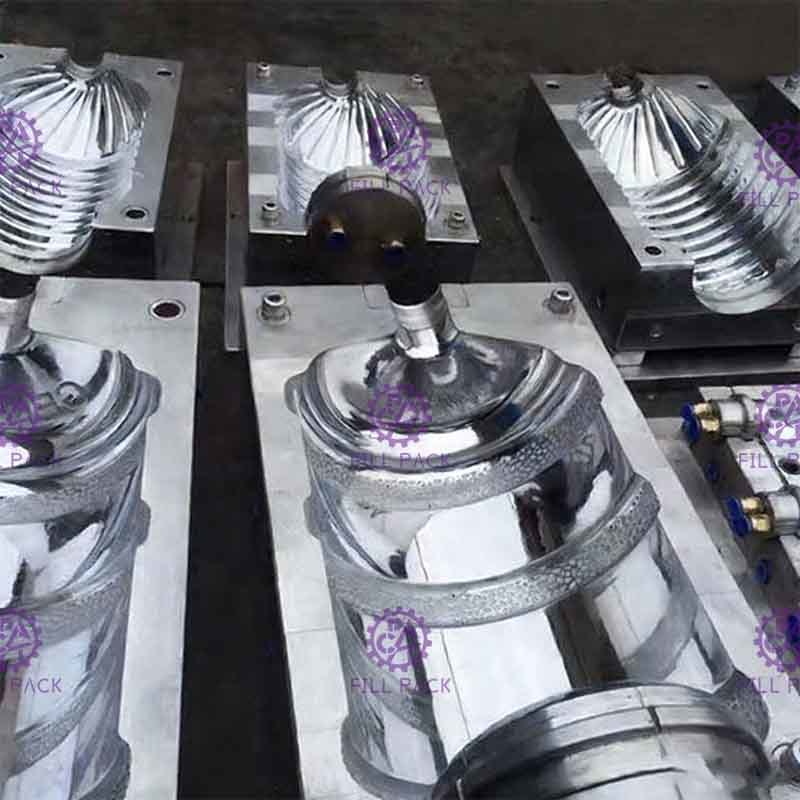

4. Mold customizing is available.
5. Theoretical capacity: 120 BPH



5 gallon Bottle manufacturing machine main Features:
1. The system of FP-120 is equipped with silencer,connecting rod and articulated refueling devices.

2. Cooling system with cold air cycle ensures same heat exposure of internal and external surface of the bottles.

3. Small,low investment,saving power,one person enough,easy to opreate and safety.

4. Adopt special electronic controlling circuit for heating; high efficiency in simultaneous controlling one lamp or more; lower power consumption.



5 gallon Bottle manufacturing machine main Parameter:

Model

FP-120

(One Blower, One Heater)

Clamping Force 220KN
Clamping Stroke 450 MM
Max. Stretching Stroke 660MM
Number of Cavities 1 Cavity
Theoretical Output 80-120 BPH
Max. Mold Thickness 400MM
Voltage Standard 380v/3PH/50Hz
Total Power (Full Loaded) 20-25KW
Max. Container Volume 20L
Neck Diameter Range 50-120mm
Max. Container Diameter 400mm
Max. Container Height 600mm

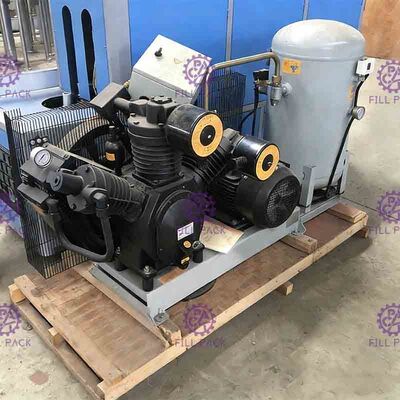

Low Air compressor 10Bar
High Air compressor 30-40Bar
Blow molding machine 2100*700*1900mm
Preform Heater 2200*700*1600mm
Net Weight 2000kgs



One Heater 120BPH Plastic Bottle Manufacturing Machine 0
