Electric One Head Cap Sleeve Round Bottle Labeler

Minimum Order Quantity : 1 set/pcs Price : USD$5,800.00
Packaging Details : Wooden case pacakge Delivery Time : 20-25 days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 5-10 sets/month
Place of Origin: ZhangJiaGang City, JiangSu Province, China Brand Name: FILLPACK
Certification: CE,ISO Model Number: TB-50

Detail Information

Suitable Labels: PVC, PET Control System: PLC
Driven Type: Electric Bottle Type: Round Square Flat Pet Bottle
Material: SUS 304 Warranty: 1 Year
Name: Round Bottle Labeler Condition: New
High Light:

SUS304 round bottle labeling machine

,

round bottle labeler

,

SUS304 sleeve labeling machine

Product Description

One Head Automatic Gallon Cap sleeve labeler Machine / Line For round buckets



Feature of Gallon Cap sleeve labeler​​:

1. Full cover in stainless steel (304) frame. Operation is safer, waterproof and not rusty.
2. Adjustable blade: Original product of whirlwind cutting, with blades on both sides, long service life.
3. Single central guide rod: stable and reliable label transmission.
4. Send tag drive system: high power servo motor, accurate and stable tag transmission.
5. Bottle separation screw: non-sloshing bottle transfer.
6. Label brush component: label more accurately.
7. Label Control Magic Eye Shelf: Original work combining tail and magic eye to improve label cutting accuracy.
8. Human-machine interface touch screen: automatically displays the cause of the error, which is more friendly.
9. Using the bottle brush kit synchronous drive, hold the bottle conveyor to rotate the brush to brush the label position.
10. According to the electric eye position of the monitoring bottle, the host is automatically placed in the label.



Application of Gallon Cap sleeve labeler​​:

This machine is especially designed for the 3 - 5 gallon PET bottles only;



Technical Parameters of Gallon Cap sleeve labeler​​:

Model One Head Automatic Cap Sleeve Labeling Machine / Line For Flat Bottle
Product Capacity Standard speed is 50-80 bottles/min.
Voltage specification 1. Main machine: AC220V, 50/60Hz, single phase
2. Shrinking oven: AC380V, 50/60Hz, 3 phases
Suitable label height 60mm-120mm
Suitable label length 100mm-200mm
Suitable label thickness 0.03mm-0.13mm
Suitable label material PVC, PET
Size of main machine L800mm*W860mm*H1600mm
Steam shrinking oven Steam consumption: 50Kg/H
Steam pressure: 1Kg/cm2
Volume of oven: L2300mm*W400mm*H1500mm

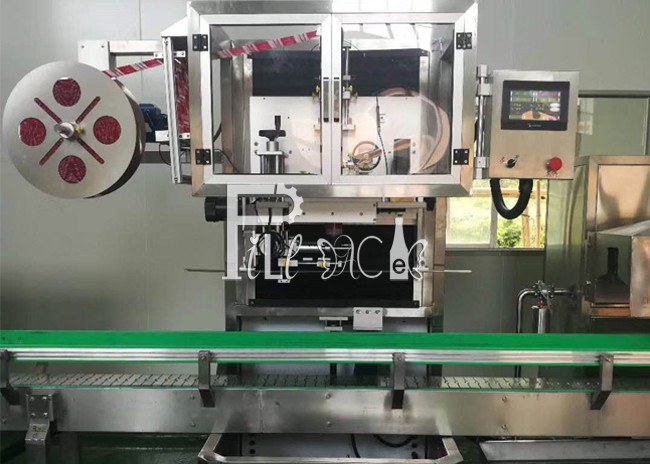

Detailed Images

Electric One Head Cap Sleeve Round Bottle Labeler 0
