Touch Screen 60BPH Gallon Bottle Blowing Machine

Minimum Order Quantity : 1 set Price : 9600USD
Packaging Details : Wooden Case Package Delivery Time : 15-20days after deposit receipt
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 20 sets/month
Place of Origin: China,JiangSu,Zhangjiagang Brand Name: FillPack
Certification: CE. ISO9001 Model Number: FP-120

Detail Information

Bottle Size:: 3 Gallon, 4 Gallon, 5 Gallon, 20L Warranty:: 1 YEAR
Voltage:: 380v 3PH Applicable Industries:: Food & Beverage Factory
CAPACITY: 60-120PCS/H CAVITY: 1 Cavity
RATED POWER: 28.8kw MOULD STROKE: 350mm
High Light:

5 Gallon Bottle Blowing Machine

,

60BPH plastic bottle moulding machine

,

120BPH water bottle moulding machine

Product Description

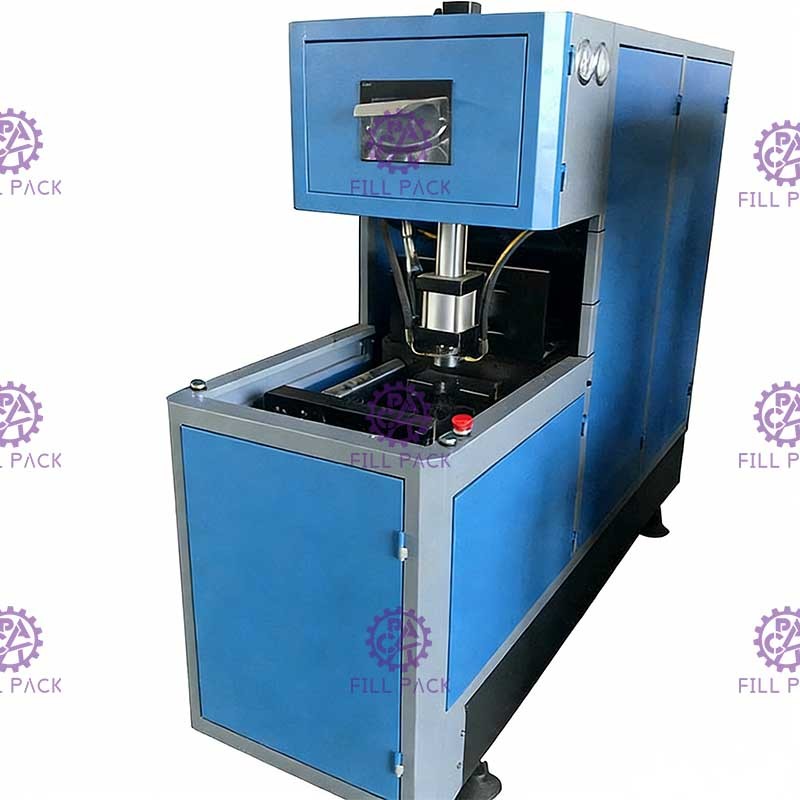

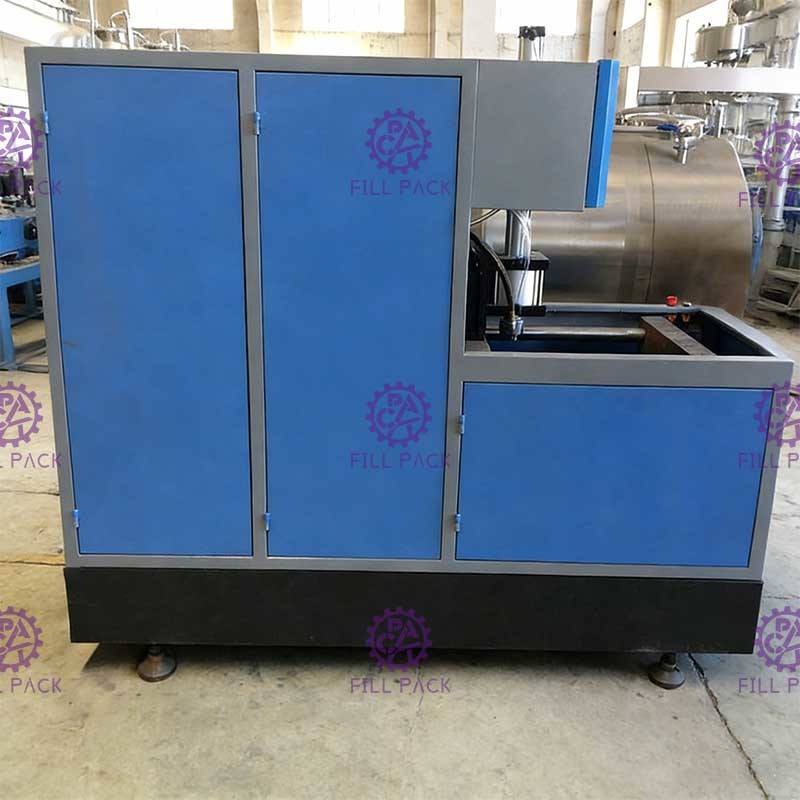

Touch screen 5 Gallon bottle molder machine for water factory



5 Gallon bottle molder machine General description:
semi-automatic stretch blow molding machine has microcomputer controlling system which controls various technical parameter.
The machine only need one person without special training operates.it is suitable for blowing 3gallon 4gallon 5 gallon mineral water bottles.

Features of 5 Gallon bottle molder machine:
1, infrared rotary drying oven because of the unique design of Japan, Germany, so the power consumption is especially economical; using infrared lamp heating, strong penetration, the preform rotating heat, orbital rotation, uniform heating, fast and reliable; heating area of the lamp, reflector width and high temperature can be adjusted to suit the different structures of the preform bottle heating, and automatic temperature exclusion device to ensure the constant temperature of the drying channel.

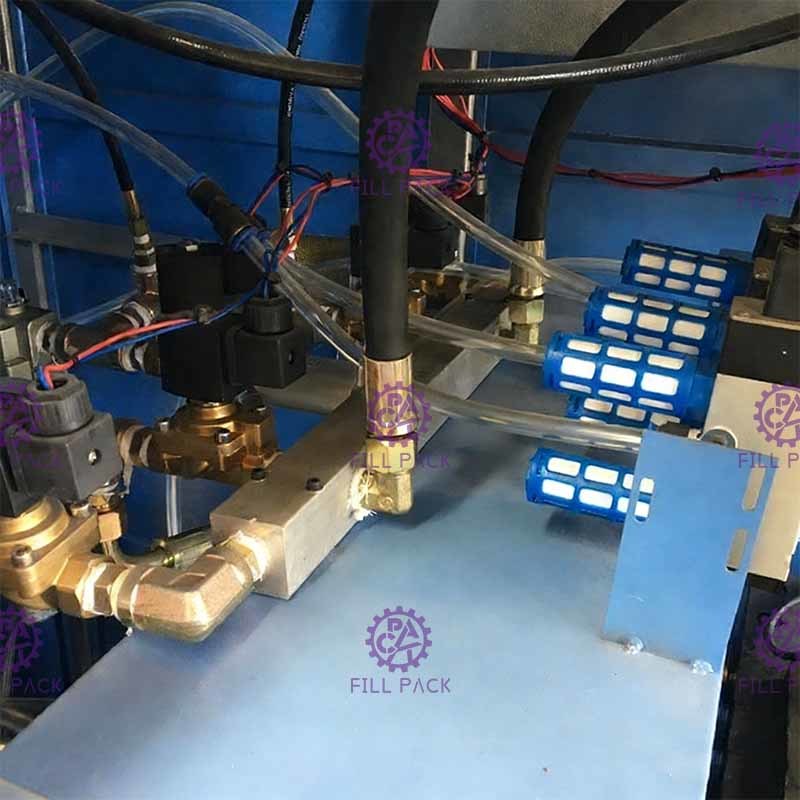

2, ach action is driven by a cylinder, without oil pump, with no pollution, low noise and other advantages, the use of high pressure and double-arm linkage mold clamping, clamping force is strong.
3, the operation method has manual, automatic two ways; safe and reliable unique valve design, but also let the gas line becomes clear at a glance.
4, It has the advantages of low investment, high efficiency, low power consumption, convenient operation, simple maintenance and safety.
5, The bottle body is free from pollution, and the scrap rate of the finished bottle is less than 0.1%.



5 Gallon bottle molder machine Main Parameter:

MODEL FP-120
CAPACITY ACCORDING TO SHAPE OF BOTTLE 60-120PCS/H
IITEM MAX DIAMETER OF BOTTLE 300mm
MAX HEIGHT OF BOTTLE 470mm
DIAMETER OF MOUTH 15mm-100mm
  MAX MOUTH 180mm
  MIN MOUTH 55mm
MOULD CAVITY 1 cavity
MOULD THICKNESS 200~350mm
MOULD STROKE 350mm

POWER



POWER 380v 3Phase /220v 3Phase 50/60HZ
RATED POWER 28.8kw

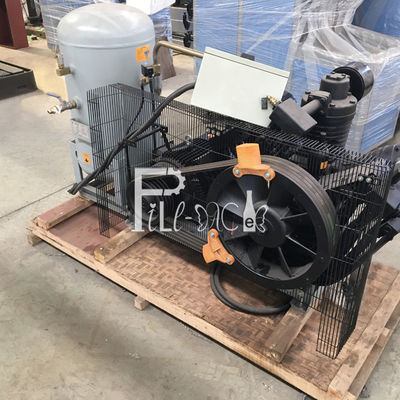

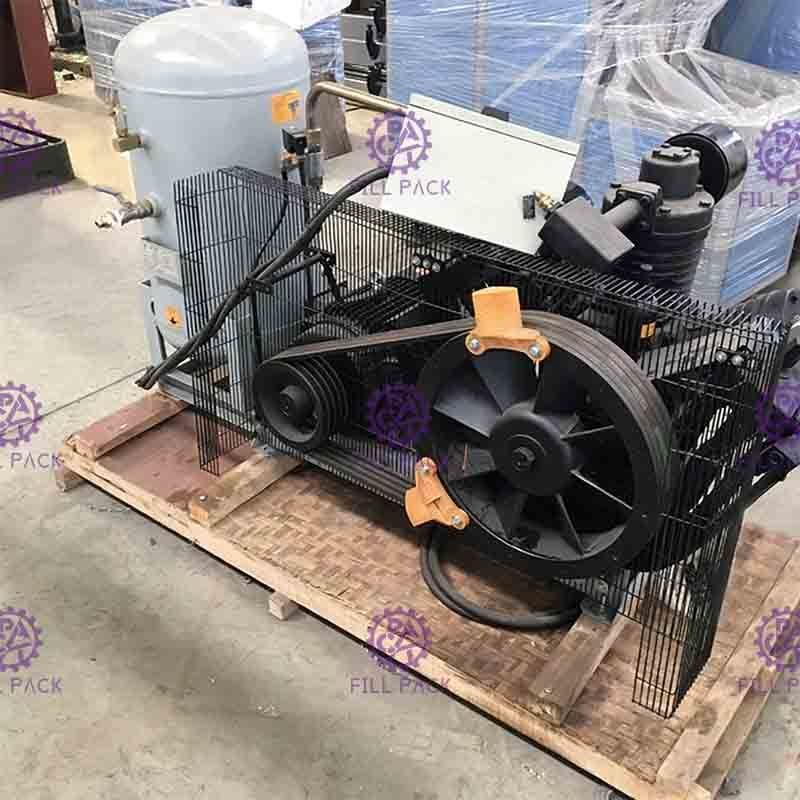

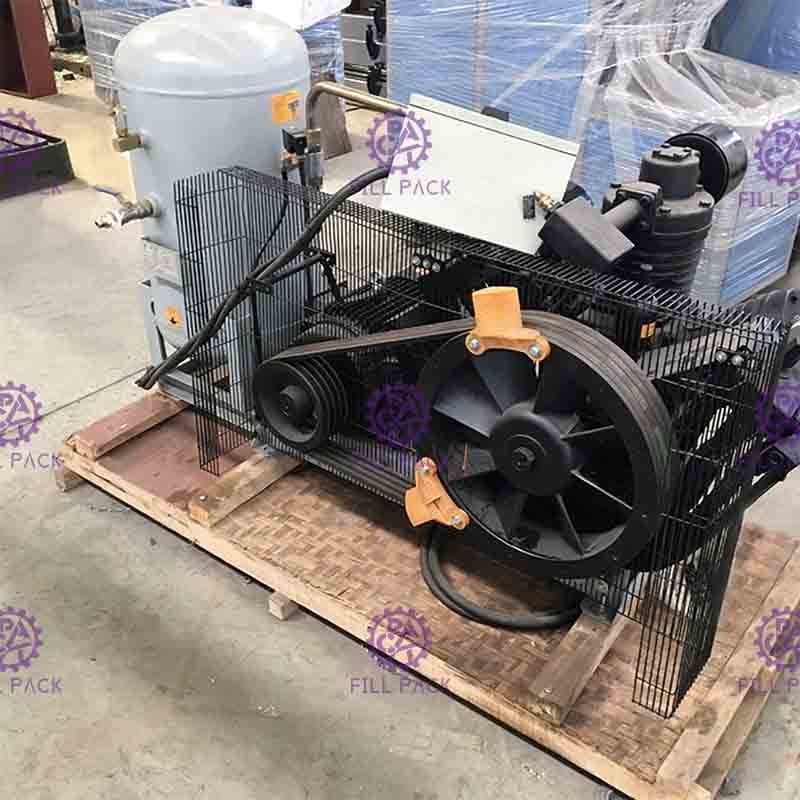

AIR POWER HIGH COMPRESSOR 1.6m3/min 3.0MPa
AIR DRYER 2.0m3/min 3.0MPa
COOLING WATER COOLING CAPACITY 15L/min
MAIN MACHINE DIMENSION

2300*850*2200mm/1350kg



Touch Screen 60BPH Gallon Bottle Blowing Machine 0
