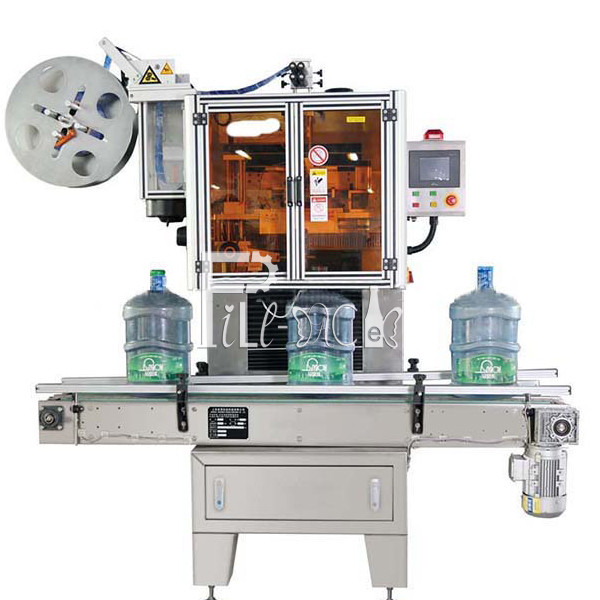

Waterproof Anti Rust 20L PET Bottle Labeling Machine

Minimum Order Quantity : 1 set/pcs Price : USD$5,800.00
Packaging Details : Wooden case pacakge Delivery Time : 20-25 days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 5-10 sets/month
Place of Origin: ZhangJiaGang City, JiangSu Province, China Brand Name: FILL PACK
Certification: CE,ISO Model Number: TB-50

Detail Information

Warranty: 1 Year After Warranty Service: Online Support
Type: Labeling Machine Packaging Type: Gallon Bottles
Origin Country: China Automatic Grade: Automatic
Condition: New
High Light:

20L shrink labeling machine


20L PET bottle labeling machine

Product Description

High Speed Motor 20L shrink Labelling line For PET Gallon Bottle With PLC Control


General of 20L shrink Labelling line​:

Whole 20L shrink Labelling line frame is made out of stainless steel SUS304.

The frame is simple, beautiful, waterproof and not rust. It is easy for cleaning.

The special cutting system: adopting the whist and convolute technology.

The label cutting is flat, no burr.

The label location set assures the sleeving veracity.

Adopting model group design, module controlled; Achieve veracity and fast sleeving.

With the good quality touching operation screen, achieving operation by finger, easy and shortcut.

20L shrink Labelling line is a high automatic packing machine. Just one person handles, easy operation.

Easy to change packing material, the change over of the mould can be easily done by hand without any tools.

Within the flat width limitation, can be used to package objects in different shape, no matter round or square, can be applied on 20L water barrels.

Higher safely and stability for operation and saving time of manpower.


Technical Paramate of 20L shrink Labelling line​:

  1. Voltage :Host machinez;AC220V, 50/60HZ, 1.5-2KW, single-phase
  2. Shrinking machine :AC380V, 50/60HZ ,9KW(electrical heat ) / three phase
  3. Diameter of label :∮28mm-∮125mm
  4. Length of label : 30mm-250mm
  5. Thickness of label: 0.035mm-013mm
  6. Material of label:PVC, PET, OPS
  7. Size: 1000*800*2000mm

Set up of 20L shrink Labelling line​​:

Electrical apparatus-Version B

Servo motor Panasonic MBDDT2210003
PLC Mitsubishi FX1S-30MR
Photoelectricity SUNX Japan CX442
Photoelectricity SUNX Japan FX301
Contactor Schneider French LCD0610
Transducer Sanki-Taiwan S800-2S0.4G
Touch screen Esayview-Taiwan TK6070IH2
Auxiliary relay Schneider French HH54P-DC24V

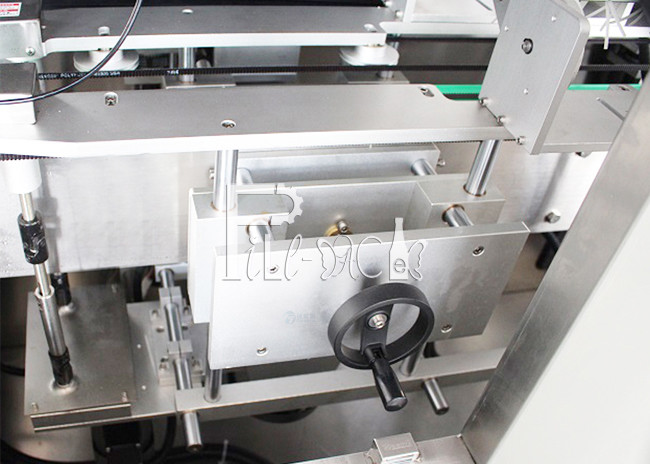

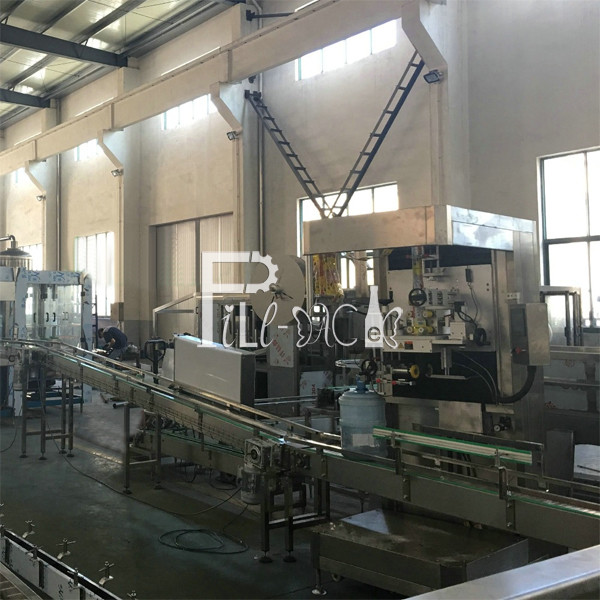

Detailed Images:
Waterproof Anti Rust 20L PET Bottle Labeling Machine 0
