Concave Convex Shape 3 In 1 20 Liter Jar Filling Machine
Contact Person : Alice Gu
Phone Number : 86-13862320828
WhatsApp : +8615862615333
| Minimum Order Quantity : | 1 set | Price : | USD $18,000-$20,000/set |
|---|---|---|---|
| Packaging Details : | wooden case | Delivery Time : | 15-20 working days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 5 sets/month |
| Place of Origin: | ZhangJiaGang JiangSu China | Brand Name: | FILL PACK |
|---|---|---|---|
| Certification: | CE, ISO9001 | Model Number: | QGF600 |
|
Detail Information |
|||
| Bottle Size: | 10~20 L PET Bottle | Capacity: | 600BPH |
|---|---|---|---|
| Warranty: | 1 YEAR | Voltage: | 380V 50HZ 3P Or Customized |
| Dimension(L*W*H): | 5000*2300*1800mm | Machine Name: | 600 Bph 5 Gallon Water Filling Line |
| Temperature: | 10～40℃ | Humidity: | No Dew |
| High Light: | 600BPH drinking water filling machine,600BPH pure water filling machine,SUS304 5 gallon filling machine |
||
Product Description
Description of 600BPH 3 / 5 gallon water bottling line / plant for drinking water
5 gallon water bottling line is suitable for 3/5G bottle size. It adopts PLC automatic control system. It combines washing, filling and capping three functions into one machine. The whole frame is stainless steel SUS304. Appearance is beautiful, Easy to operating and maintaining. And it is high degree of automation.
The whole 5 gallon water bottling line includes Automatic De-capper, Rotary external washer, L type Washer/Filler/Capper, Heat Shrinking Machine, Checking Light, Ink jet code printer.
|
Containers and Specifications of 5 gallon water bottling line
|
||||
|
Project Name:
Full Automatic Complete 600BPH 3-5 Gallon Barrel Filling Production Line |
Mineral Water /
Pure Water |
|||
|
Material
|
Shape
|
Filling volume
|
Filling Type
|
Conveyor Mode
|
|
PC / PET
|
Round or Square
|
3 - 5 Gallon
|
Gravity filling
Normal temperature |
Conveyor belt
|
|
Adjustable Specifications
of Bottle Type |

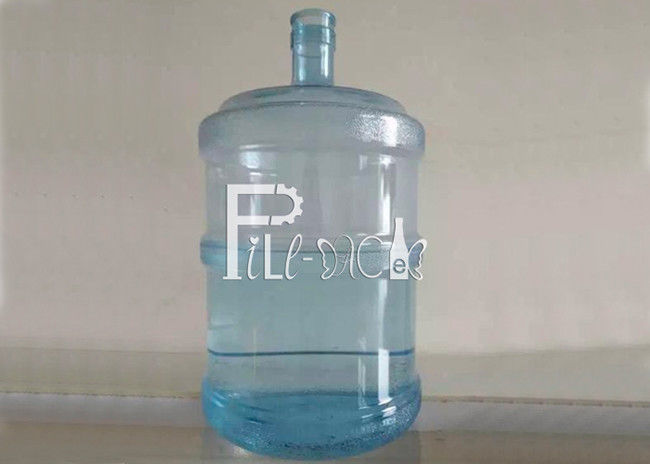

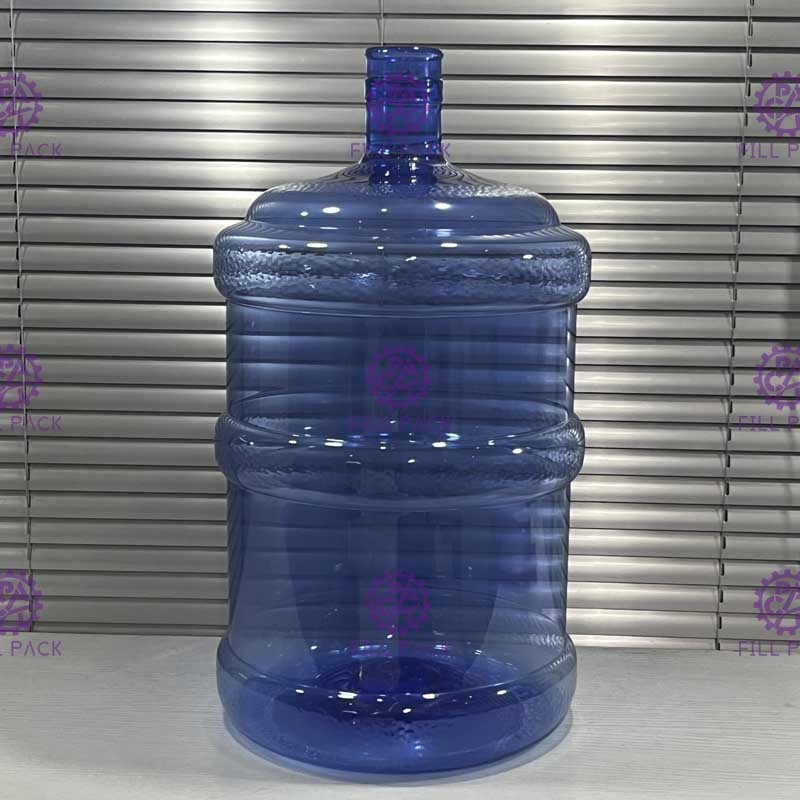

Size of Barrel : ф276×490mm
|
|||
|
Customers need to buy additional change-over parts for the different bottles.
If using square bottles, then bottle separating system will be added. |
||||
|
Container Label
|
Sticker Label / Shrink Wrap Label / Prinetr Label
|
|||
|
User Ambient Conditions
|
Temperature:10～40℃；Humidity:No dew
|
|||
|
User Electrical Supply Specification
|
Voltage:380V±5%, 3phase； Frequency:50HZ±1%
|
|||
1, Automatic De-capper:
De-capping head: 2 heads
Dimension: 900*600*2000mm
Weight: 130kg

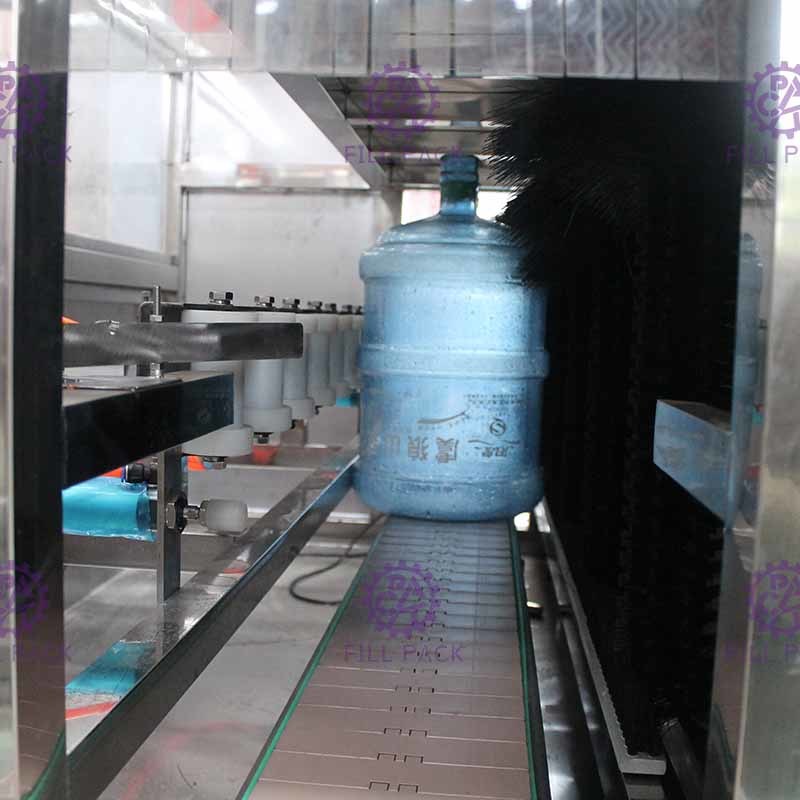

2, Rotary external washer
Dimension: 1800*1550*1750mm
Weight: 800kg
Power: pump 0.37+motors 0.75*2+transfer motor 1.1=2.97KW
Recycle water tank size: 600*550*550mm
3, Monoblock gallon rinser-filler-capper
Material: SUS304
Power:22KW
Dimension: 5000*2300*1800mm
Weight: 1000kg
| Model | QGF-100 | QGF-200 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 |
| Filling heads | 1 | 2 | 2 | 3 | 4 | 6 | 12 |
| Volume | 3&5 Gallon | ||||||
| Barrel size | Φ270*490mm | ||||||
| Capacity(b/h) | 60-100 | 100-240 | 250-300 | 400-450 | 600-800 | 800-900 | 1000-1200 |
| Air pressure(MPa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | 0.6 |
| Air consumption(m³/min) | 0.37 | 0.37 | 0.6 | 0.8 | 1 | 1.5 | 1.8 |
| Motor power(kw) | 1.38 | 1.75 | 3.8 | 3.8 | 7.5 | 9.75 | 13.5 |
| Rated power(kw) | 1.38 | 1.75 | 3.8 | 3.8 | 7.5 | 9.75 | 13.5 |
4, Steam shrink Machine
5, Ink jet code printer
6, Automatic cap lifter-washer
Dimension: 800*800*3000
Weight: 130kg

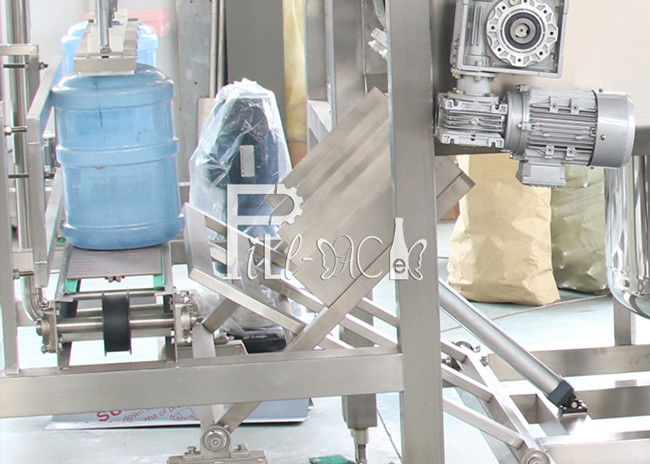

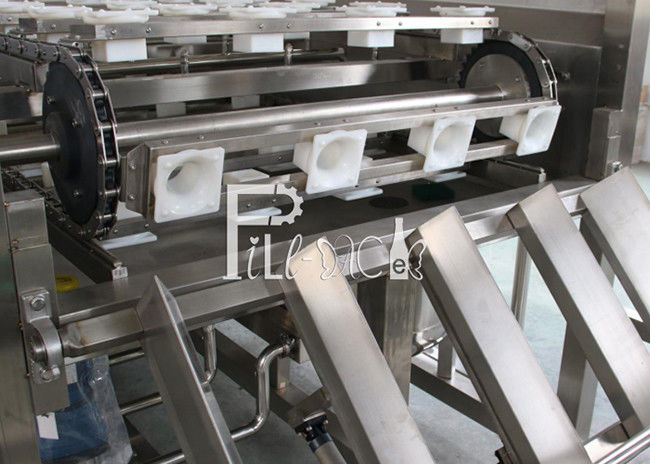

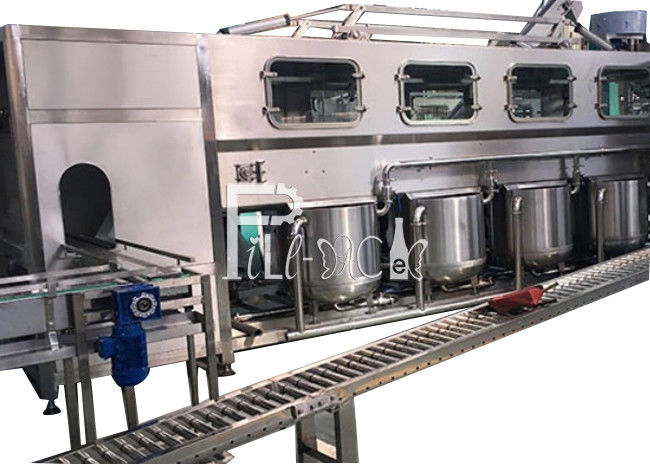

Detailed pictures of 5 gallon water bottling line
