Touch Screen 60BPH Gallon Bottle Blowing Machine
Contact Person : Alice Gu
Phone Number : 86-15862615333
WhatsAPP : +8615862615333
| Minimum Order Quantity : | 1 set | Price : | 9600USD |
|---|---|---|---|
| Packaging Details : | Wooden Case Package | Delivery Time : | 15-20days after deposit receipt |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 20 sets/month |
| Place of Origin: | China,JiangSu,Zhangjiagang | Brand Name: | FillPack |
|---|---|---|---|
| Certification: | CE. ISO9001 | Model Number: | FP-120 |
|
Detail Information |
|||
| Max.volume:: | 10~20L | Type:: | Stretch Pet Blow Moulding |
|---|---|---|---|
| Blowing Pressure:: | 2.0-3.0Mpa | Capacity:: | 100BPH |
| Dimension: | 2300*750*2100mm | Number Of Cavities: | 1 |
| Working Pressure: | 0.8-1.0Mpa | Voltage/Power: | 220V/1KW |
| Highlight: | 100BPH pet stretch blow molding machine,20L Gallon Bottle Blowing Machine |
||
Product Description

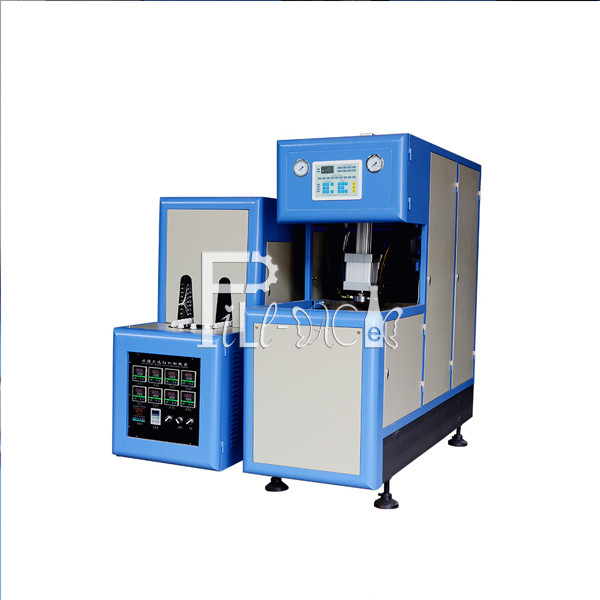

Semi Automatic PET Gallon bottle blow molding machine with 1 cavity
5 Gallon bottle blow molding machine Specification:
Blow molding machine is especially used to produce 3 gallon and 5 gallon bottles and is widely used to produce any shape of plastic from PET with neck finishes from 15mm-200mm.
● Perfect function with economic investment.
● Small size and compact construction with no space waste.
● Easy to operate and maintain ,operation by one person .
● Saving power and uneasy to worn out ,Adopting new double crank four bars to lock mould, the cross fixed. Providing high pressure blowing system.
● We can provide performs and various bottle& cap molds for 5 gallon and 3gallon bottles to meet customer's requirements.
5 Gallon bottle blow molding machine Main Parameter:
|
Name
|
Item
|
Unit
|
Details
|
|
Blowing machine
|
Dimension |
mm
|
2300*750*2100
|
|
Bottle volume (max)
|
L
|
22
|
|
|
Bottle volume (min)
|
L
|
5
|
|
|
Bottle Neck Diameter (max)
|
mm
|
90
|
|
|
Bottle Neck Diameter (min)
|
mm
|
38
|
|
|
Body Diameter (max)
|
mm
|
300
|
|
|
Body Height( max)
|
mm
|
550
|
|
|
Number of Cavities
|
mold
|
1
|
|
|
Production output
|
pcs/h
|
5GALLON:85-120PCS/H
|
|
|
Clamping force
|
T
|
20(200KN)
|
|
|
Mold thickness
|
mm
|
450(max)
|
|
|
Mold width
|
mm
|
430x530
|
|
|
Space between Tie-bars
|
mm
|
430*470
|
|
|
Diameter of Tie-bars
|
mm
|
63
|
|
|
Scope of Tie-bars
|
mm
|
405
|
|
|
Mold stroke
|
mm
|
170
|
|
|
Stretching stroke (max)
|
mm
|
420
|
|
|
Working pressure
|
Mpa
|
0.8-1.0Mpa
|
|
|
Blowing pressure
|
Mpa
|
2.0-3.0Mpa
|
|
|
Voltage/Power
|
V/KW
|
220V/1KW
|
|
|
Pre-heater
|
Dimension
|
mm
|
2300*750*2100MM
|
|
Weight
|
kg
|
1600
|
|
|
Voltage/Power
|
V/KW
|
380V/28KW
|
|
|
|
Lamp
|
PCS
|
32
|
|
Working power
|
Kw
|
15kw
|

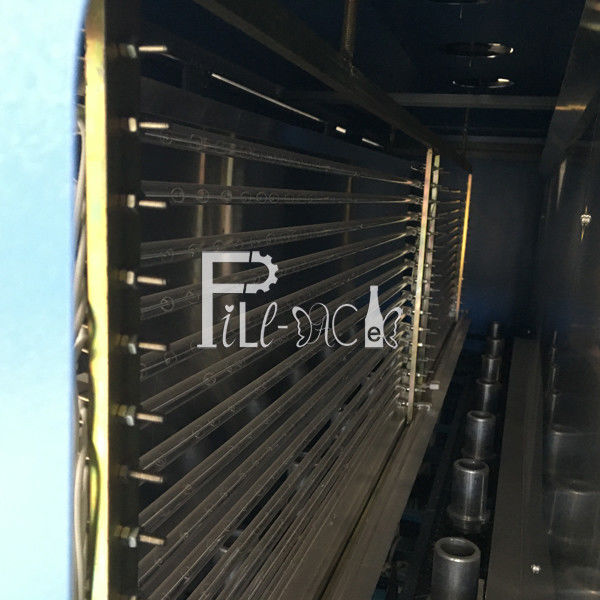

The Heater

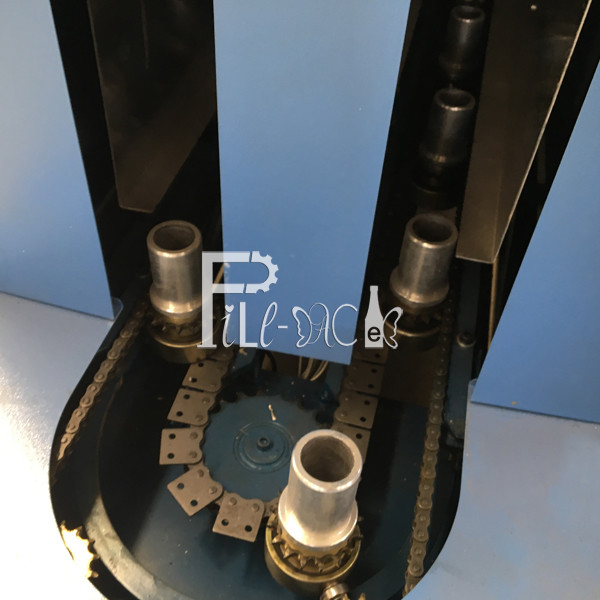

1. Total 19 pieces holder,make sure the capacity.
2. The heater equiped with a temperature control system.Make the machine suitable for long time work.
The Control System
1. Adopt world famous brand PLC to control the machine. Easy to operate.
2. Different brand of PLC for choose: Delta,Mitsubishi,Bothfit.ect
