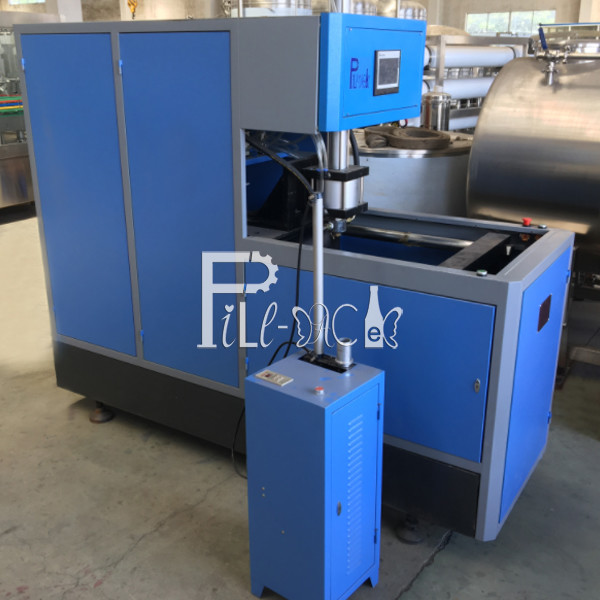

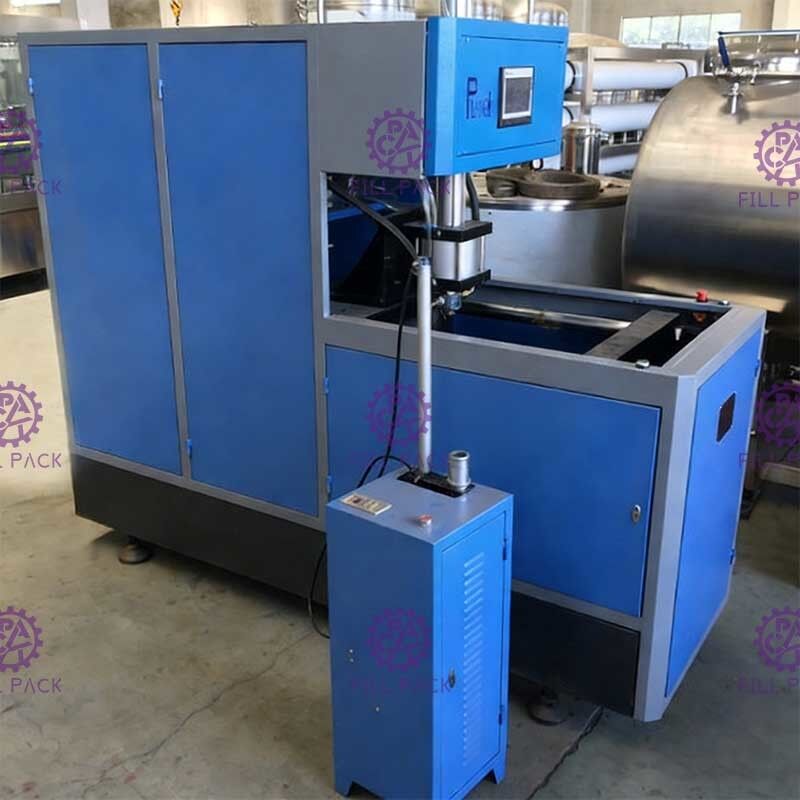

Air Pressure Blowing 120BPH PET Bottle Blow Molding Machine

Minimum Order Quantity : 1 set Price : 9600USD
Packaging Details : Wooden Case Package Delivery Time : 15-20days after deposit receipt
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 20 sets/month
Place of Origin: China,JiangSu,Zhangjiagang Brand Name: FillPack
Certification: CE. ISO9001 Model Number: FP-120

Detail Information

Voltage:: As Per Model Production Speed:: 120pcs/H
Cavity:: 1 Cavity Bottle Neck:: 55mm
MOULD THICKNESS: 200~350mm MOULD STROKE: 350mm
Condition: New
High Light:

120BPH PET Bottle Blow Molding Machine

,

120BPH pet moulding machine

Product Description

Semi Auto PET 5 gallon bottle blow molding system with air pressure blowing



5 gallon bottle blow molding system Features :
1) This machine is characterized by Low cost, high efficiency and its easy operation and maintenance as well as its stable performance with advanced PLC.
2) Preform self-rotation and infrared preheater revolution assure the even distribution of heat, which improve the bottle shaping rate, increase the production.
3) High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area in the PLC, which could adjust the temperature of the infrared lights in the preheater, and keep the proper temperature and humidity invariable.
4) High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect safe environment, in case of the breakdown in certain procedure.
5) Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
6) Safe, reliable and unique design of the position of valve to make the pneumatic diagram in the machine easier to understand.
7) Ideal cooling system makes the finished bottles without any flaws.
8) Low rejection rate: less than 0.2 percent.



5 gallon bottle blow molding system parameter:

MODEL FP-120
CAPACITY ACCORDING TO SHAPE OF BOTTLE 120PCS/H
IITEM MAX DIAMETER OF BOTTLE 300mm
MAX HEIGHT OF BOTTLE 470mm
DIAMETER OF MOUTH 15mm-100mm
  MAX MOUTH 180mm
  MIN MOUTH 55mm
MOULD CAVITY 1 cavity
MOULD THICKNESS 200~350mm
MOULD STROKE 350mm

POWER



POWER 380v 3Phase /220v 3Phase 50/60HZ
RATED POWER 28.8kw

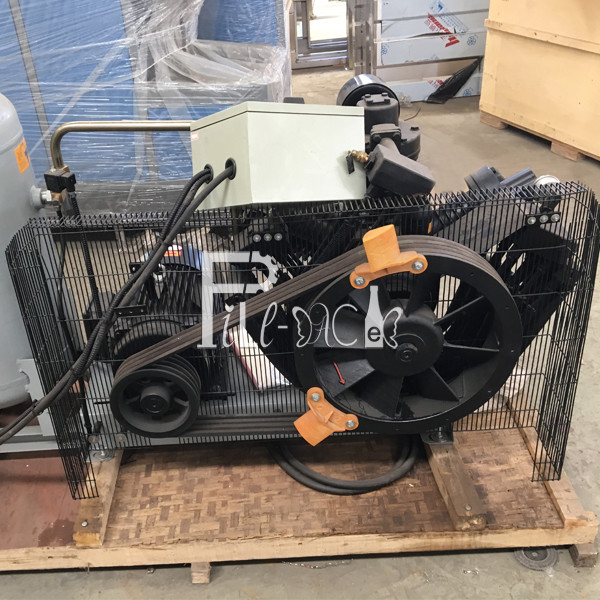

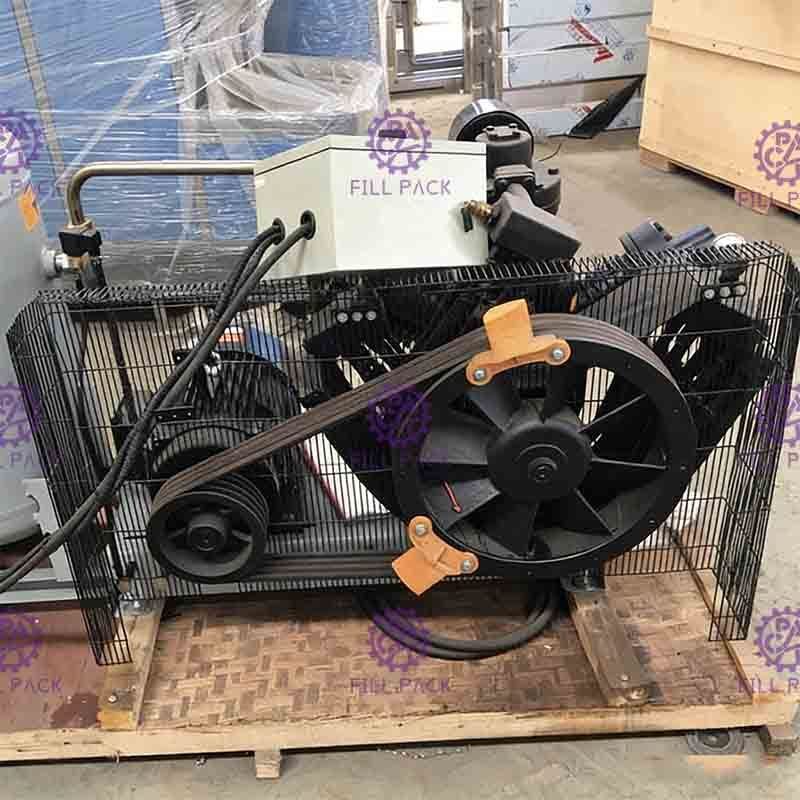

AIR POWER HIGH COMPRESSOR 1.6m3/min 3.0MPa
AIR DRYER 2.0m3/min 3.0MPa
COOLING WATER COOLING CAPACITY 15L/min
MAIN MACHINE DIMENSION 2300*850*2200mm/1350kg



Air Pressure Blowing 120BPH PET Bottle Blow Molding Machine 0
