Drinkable Water SUS304 Mineral Water Bottling Machine
Contact Person : Alice Gu
Phone Number : 86-15862615333
WhatsAPP : +8615862615333
Minimum Order Quantity : | 1 set/pcs | Price : | USD$95,000.00-USD$100,000.00 |
---|---|---|---|
Packaging Details : | Wooden case pacakge | Delivery Time : | 30-35days |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 5 sets/month |
Place of Origin: | ZhangJiaGang City, JiangSu Province, China | Brand Name: | FILLPACK |
---|---|---|---|
Certification: | CE,ISO | Model Number: | QGF-1500 |
Detail Information |
|||
Degree Of Automation: | Full Automatic | Capacity: | 1500BPH |
---|---|---|---|
Function: | Washing,filling,capping | Material: | SUS304 |
Controller: | PLC | Warranty: | 1 Year |
Usage: | Gallon Water Bottle Filling | After-sales Service: | Engineers Available To Service Machinery Overseas |
Highlight: | 1500BPH Mineral Water Bottling Machine,1500BPH Gallon Filling Machine |
Product Description

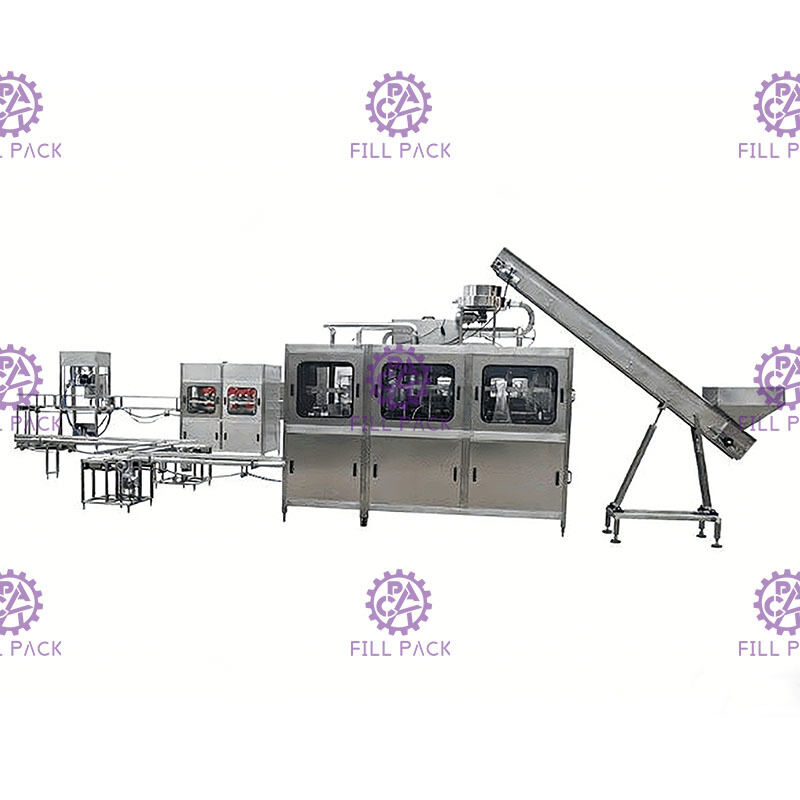

1500BPH Complete Mineral Barrel Water Filler With Coder Printer
Brief of Barrel Water Filler:
The mineral water bottle bottling plant is used in production of non-soda drink of mineral-pure water packed in polyester bottles. Washing, filling and capping are integrated in one machine.
The most advanced technology from Japan and Germany is employed in the design. The gravity fixed liquid surface filling is used. The filling is fast, the amount of liquid is accurately controlled and the dropping and leakage are avoided.
Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180° along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.
The magnetic torque is used for screw capping. The power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.
The whole machine is controlled by PLC with touch-screen as the human-machine interface. The amount of the drinks in the storage tank can be controlled automatically. The filling and capping will be stopped automatically when there is no bottle. When bottles are cramped wrongly or when caps are not available, the machine can be stopped automatically.
Product Parameters of Barrel Water Filler:
Material | SUS 304 |
Voltage | 380V 50 Hz 3phase or customized |
Dimension | Customized |
Capacity | 1500BPH |
After-sales Service Provided | Engineers available to service machinery overseas |
Bottle type | circular or square PET or plastic |

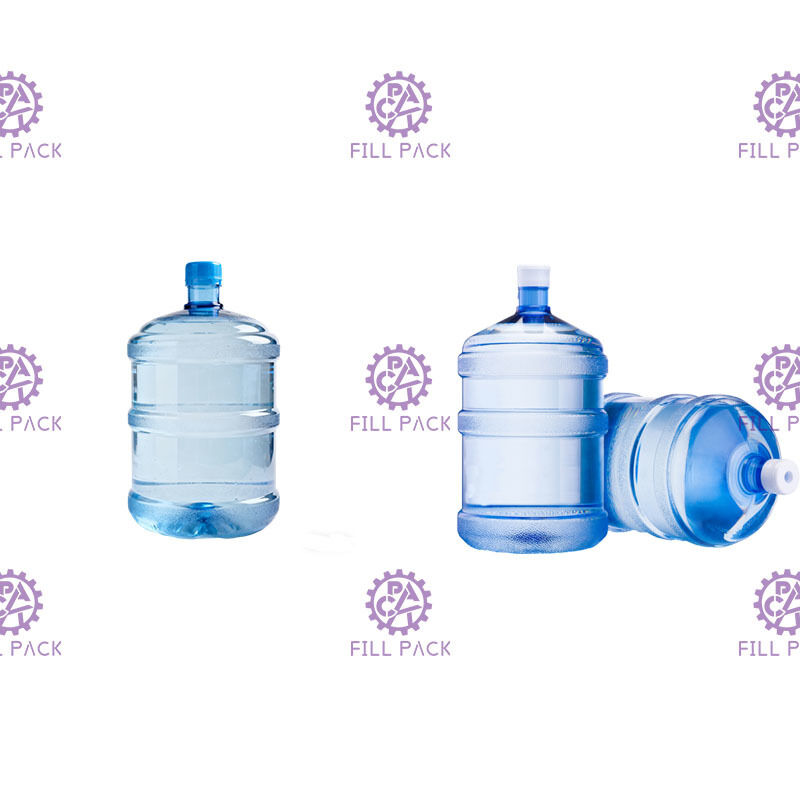

Bottle valume | 3-5 gallon |
Suitable bottle | PC / PET barrel |
Application | Water filling |
Warranty | 1 year |
Feature of Barrel Water Filler:
1. It is ideal equipment for producing mineral water, super-pure water,space water and distilled water.
2. Advanced PLC control system
3. The key parts are imported and their quality is reliable.
4. Barreled water production line machine is made of stainless steel.
5. Its structure is reasonable and its operation is convenient.
6. Easy cleaning and corrosion.
Detailed Images:
