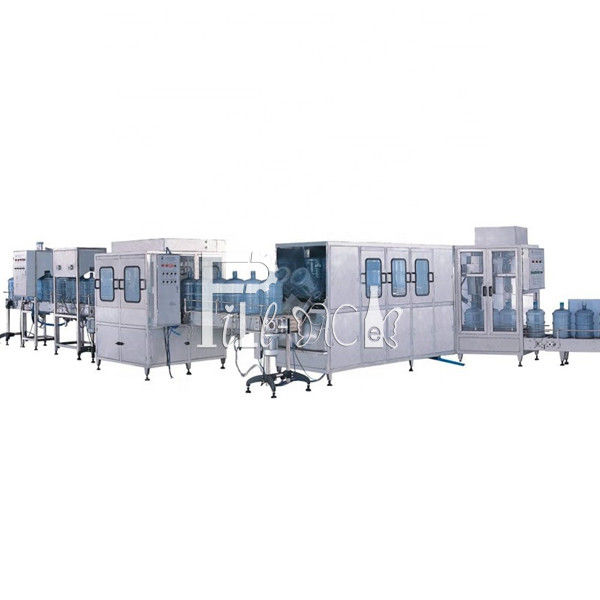

Electric 1500BPH Gallon Filling Machine With Cap Lifter

Minimum Order Quantity : 1 set/pcs Price : USD$95,000.00-USD$100,000.00
Packaging Details : Wooden case pacakge Delivery Time : 30-35days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 5 sets/month
Place of Origin: ZhangJiaGang City, JiangSu Province, China Brand Name: FILLPACK
Certification: CE,ISO Model Number: QGF-1500

Detail Information

Automatic Grade: Automatic Driven Type: Electric
Warranty: 1 Year Material: SUS304
Capacity: 1500bph Function: Bottle Washing Fillling Capping Machine
Control: PLC Control Key Selling Points: High-accuracy
High Light:

1500BPH 5 gallon filling machine


1500BPH Gallon Filling Line

Product Description

1500B / H Full Automatic Bottle Filling Machine With Cap Lifter


Brief Intruduction of Bottle Filling Machine

This machine is driven by cylinder, controlled by PLC; Automatic working by barrel checking;

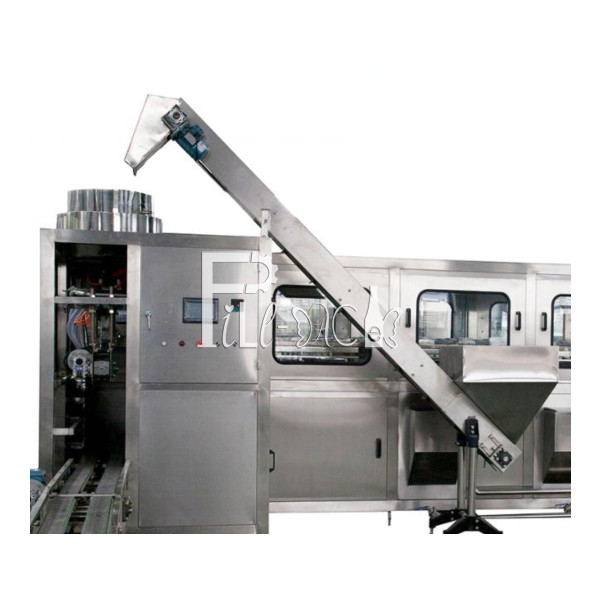

De-capping head is composed by claw device and cylinder, de-capping head position can move up and down, claw device can be adjusted slightly to be suitable for different caps.

When the gallon bottle comes into the machine, the block board will block the bottle tightly by cylinder,the de-capping head will go down and claw device will hold tightly barrel cap sides, and then lift the barrel to take off the caps; And when the caps are taken off, the compressor air will blow the caps into cap hopper, then fall outside into client’s own holder.


Main Parts and it's feature of Bottle Filling Machine

  • Filling part:The barrel water drink filling machine works reliably and efficiently based on the compact structure and high automatic technology. This barrel water drink filling machine is the fully automatic barreled water producing equipment combined with machine, electronic and pneumatic components.
  • Capping part:In our capping machine, there is pure water spraying device, to sterilize the caps, avoid any pollution to the beverage;

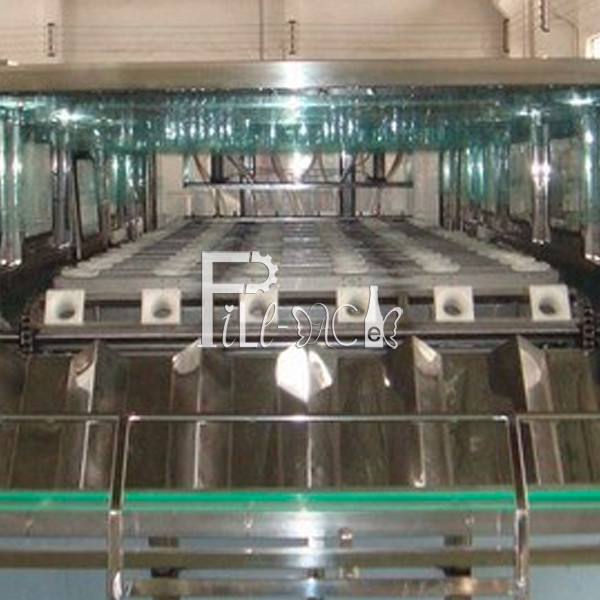

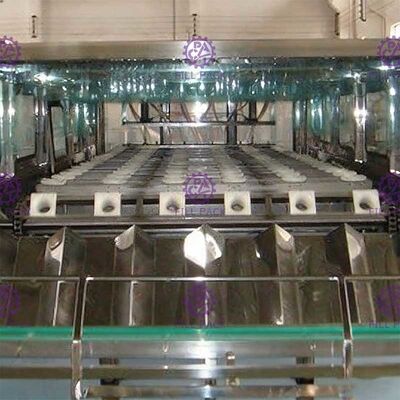

  • Rinsing part:In our rinsing machine, the barrel will be cleaned by multiple liquid, from alkali water to disinfecting water, and then to the pure water, to ensure every barrel can be cleaned absolutely. And then the filling machine and capping machine will start to work automatically


Parameters of Bottle Filling Machine:

Model MDJ-1500
Production capacity 1500 barrels/hour
Palletizing layer 3 layers
Arrangement 5 * 4
Speed control Speed adjustable as need
Main material Stainless steel
Pneumatic control system AIRTAG PLC combined control
Compressed air 0.4-0.6Mpa, 20L/Min
Electric control system Mitsubishi PLC touch screen
Motor power 5kw
Voltage 380V / 50HZ / 3Phase
Dimensions (mm) 2400*1650*2100mm
Weight 800kg


Detailed Images

Electric 1500BPH Gallon Filling Machine With Cap Lifter 0Electric 1500BPH Gallon Filling Machine With Cap Lifter 1Electric 1500BPH Gallon Filling Machine With Cap Lifter 2
