Concave Convex Shape 3 In 1 20 Liter Jar Filling Machine
Contact Person : Alice Gu
Phone Number : 86-13862320828
WhatsApp : +8615862615333
| Minimum Order Quantity : | 1 set | Price : | USD $18,000-$20,000/set |
|---|---|---|---|
| Packaging Details : | wooden case | Delivery Time : | 15-20 working days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 5 sets/month |
| Place of Origin: | ZhangJiaGang JiangSu China | Brand Name: | FILL PACK |
|---|---|---|---|
| Certification: | CE, ISO9001 | Model Number: | QGF600 |
|
Detail Information |
|||
| Bottle Size: | 10~20 L PET Round Bottle | Capacity: | 600BPH |
|---|---|---|---|
| Driven Type: | Mechanical | Voltage: | 380V 50HZ 3P Or Customized |
| Dimension(L*W*H): | 5000*2300*1800mm | Machine Type: | Linear Type |
| Product: | Drinking Water | Max Filling Volume: | 5 Gallon /18.9L |
| High Light: | CE 5 gallon water bottling machine,600BPH 5 gallon filling machine |
||
Product Description
Description of Automatic gallon water bottling line for 5 Gallon Bottle with 600BPH
600 B/h (5gallon) gallon water bottling line
Output:600B/H(5 gallon /18.9L)
Product: drinking water
Model of equipment:QGF-600

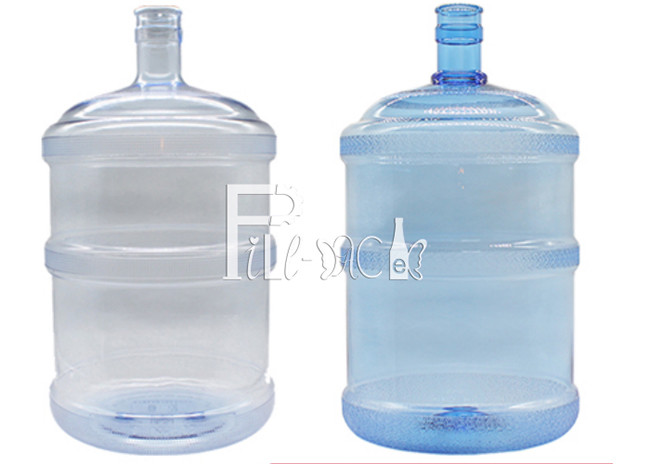

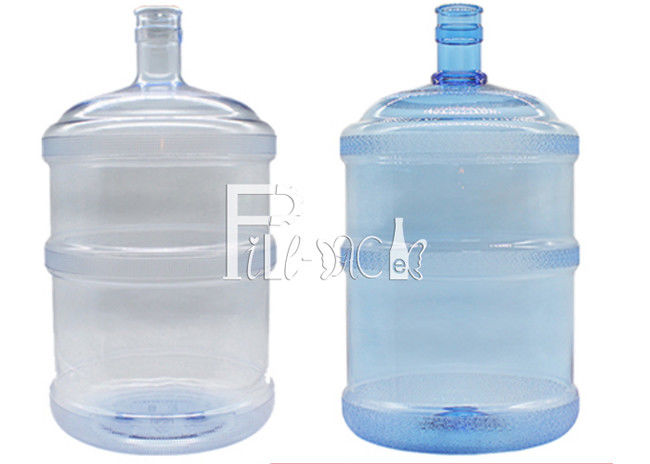

Suitable of barrel::5 gallon barrel (Ф270×490×Ф56)
Max filling volume:5 gallon /18.9L
capper:5gallon clear capper(Ф56×39+17×8)
Filling fashion:pressure filling
Transportation fashion:motor drive transportation

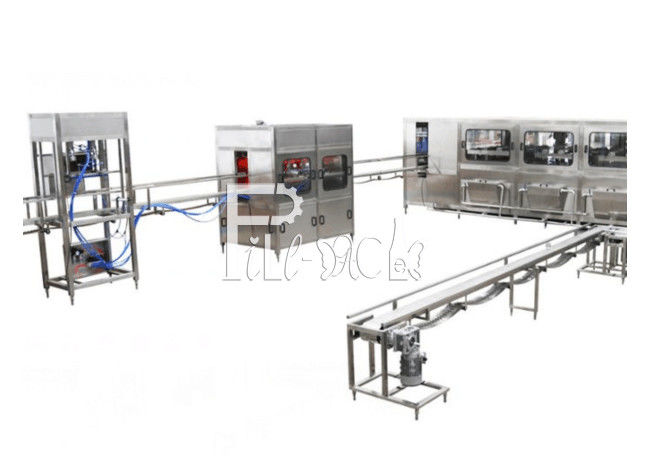

The flow of the whole gallon water bottling line:
5 gallon barrel
↓
Auto lid pulling out machine
↓
Auto exterior brushing machine
↓
Auto loading barrel system
↓
Disinfection and washing→full auto filling, capping system←water treatment, original water
↓
Inspection light
↓
Heat shrinking machine
↓
Ink jet printer
↓
conveying system
1, Automatic De-capper:
De-capping head: 2 heads
Dimension: 900*600*2000mm
Weight: 130kg
2, Rotary external washer
Dimension: 1800*1550*1750mm
Weight: 800kg
Power: pump 0.37+motors 0.75*2+transfer motor 1.1=2.97KW
Recycle water tank size: 600*550*550mm

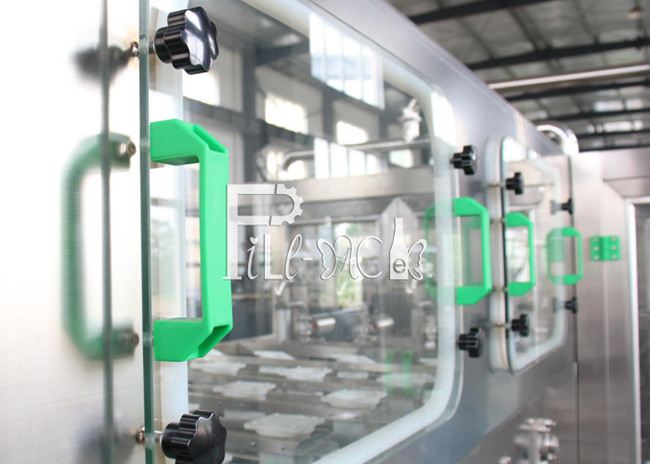

3, Monoblock gallon rinser-filler-capper
Material: SUS304
Power:22KW
Dimension: 5000*2300*1800mm
Weight: 1000kg
We aslo have other capacities of gallon water bottling line:
| Model | QGF-100 | QGF-200 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 |
| Filling heads | 1 | 2 | 2 | 3 | 4 | 6 | 12 |
| Volume | 3&5 Gallon | ||||||
| Barrel size | Φ270*490mm | ||||||
| Capacity(b/h) | 60-100 | 100-240 | 250-300 | 400-450 | 600-800 | 800-900 | 1000-1200 |
| Air pressure(MPa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | 0.6 |
| Air consumption(m³/min) | 0.37 | 0.37 | 0.6 | 0.8 | 1 | 1.5 | 1.8 |
| Motor power(kw) | 1.38 | 1.75 | 3.8 | 3.8 | 7.5 | 9.75 | 13.5 |
| Rated power(kw) | 1.38 | 1.75 | 3.8 | 3.8 | 7.5 | 9.75 | 13.5 |
4, Steam shrink Machine
5, Ink jet code printer
1 bottle of ink for 2mm: 20 million characters;
If you print one line 8 characters each bottle, then 1 bottle of ink can last around 5 month; If extra needed, unit price: 55USD/bottle;
6, Automatic cap lifter-washer
The Automatic cap elevator is designed to lift bottles caps to capping machine, which there is a cap sorting machine before capping. It is not only used in beverage industry, also can be used in food, hardware, packaging, medical and chemical industry.
Detailed pictures of gallon water bottling line:

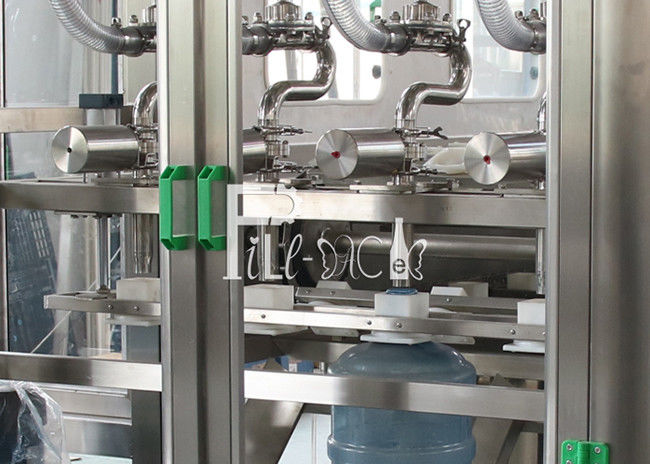

The 4 filling heads
The Ink jet code printer
After service:
1. We send the engineers to help installing, commissioning and training, the engineers start from our factory area.
2. We supply below necessary documents with the machine:
a. Machine layout
b. Electricity diagram
c. Machine certificate
d. General manual book/maintenance book
3. After one year guarantee, the seller provides payable spare parts and technician’s VISITING maintenance
service.
