18.9 Liter Plastic Bottle 600BPH Gallon Filling Line

Minimum Order Quantity : 1 set Price : USD $18,000-$20,000/set
Packaging Details : wooden case Delivery Time : 15-20 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 5 sets/month
Place of Origin: ZhangJiaGang JiangSu China Brand Name: FILL PACK
Certification: CE, ISO9001 Model Number: QGF600

Detail Information

Bottle Size: 10~20 L PET Bottle Capacity: 600BPH
Key Words: Gallon Bottle Filling Quality: Advanced Technology
Dimension(L*W*H): 5000*2300*1800mm Packaging Material: Wooden Case
Voltage: 380V±5%, 3phase Frequency: 50HZ±1%
High Light:

600BPH Gallon Filling Line

,

600BPH 20 Liter Jar Filling Machine

,

276×490mm Barrel Filling Line

Product Description

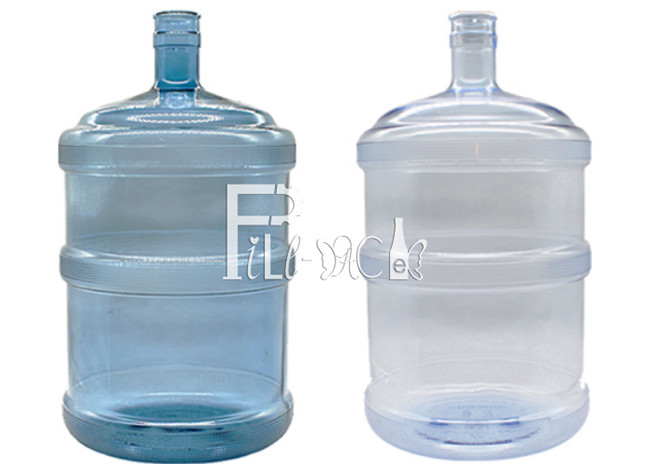

Description of 600BPH Gallon / Barrel water bottling line for 18.9 / 20 liter Bottle



  5 gallon Barrel water bottling line consists of empty bottle transferring, auto de-capper, external bottle brushing, rinsing filling capping, light checker, neck shrinker, bagging, full bottle transferring and pallitizer, enabling full automatic intelligent production. The whole process is strictly controlled, which ensures the complete compliance with customer's local standards and regulations set up by their Health Department. During filling process, secondary pollution is strictly controlled, which makes it an ultra-clean production line. It's a most ideal, acknowledged and reliable automatic gallon water production line for companies and factories. This line is mainly used for filling pure water or mineral water of 3 & 5 gallon bottle.



Containers and Specifications
Project Name:
Full Automatic Complete 600BPH 3-5 Gallon Barrel Filling Production Line
Mineral Water /
Pure Water
Material



Shape
Filling volume
Filling Type
Conveyor Mode
PC / PET
Round or Square
3 - 5 Gallon
Gravity filling
Normal temperature
Conveyor belt
Adjustable Specifications
of
Bottle Type
Size of Barrel : ф276×490mm
Customers need to buy additional change-over parts for the different bottles.
If using square bottles, then bottle separating system will be added.
Container Label
Sticker Label / Shrink Wrap Label / Prinetr Label
User Ambient Conditions
Temperature:10~40℃;Humidity:No dew
User Electrical Supply Specification
Voltage:380V±5%, 3phase; Frequency:50HZ±1%



1, Automatic De-capper:
De-capping head: 2 heads
Dimension: 900*600*2000mm
Weight: 130kg



2, Rotary external washer

Dimension: 1800*1550*1750mm

Weight: 800kg

Power: pump 0.37+motors 0.75*2+transfer motor 1.1=2.97KW

Recycle water tank size: 600*550*550mm

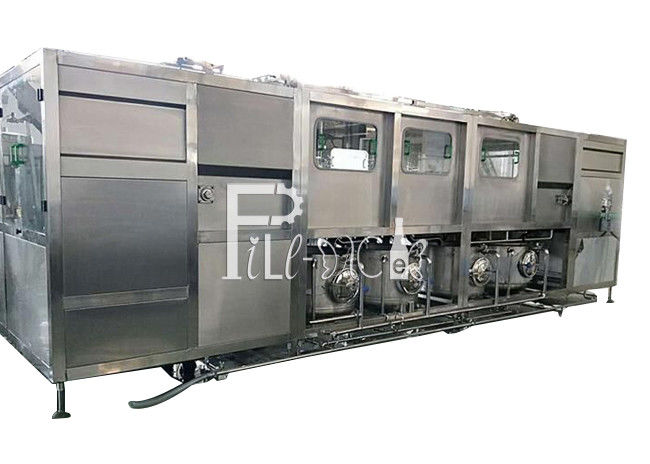

3, Monoblock gallon rinser-filler-capper

Material: SUS304

Power:22KW

Dimension: 5000*2300*1800mm

Weight: 1000kg

Model QGF-100 QGF-200 QGF-300 QGF-450 QGF-600 QGF-900 QGF-1200
Filling heads 1 2 2 3 4 6 12
Volume 3&5 Gallon
Barrel size Φ270*490mm
Capacity(b/h) 60-100 100-240 250-300 400-450 600-800 800-900 1000-1200
Air pressure(MPa) 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6 0.6 0.6 0.6
Air consumption(m³/min) 0.37 0.37 0.6 0.8 1 1.5 1.8
Motor power(kw) 1.38 1.75 3.8 3.8 7.5 9.75 13.5
Rated power(kw) 1.38 1.75 3.8 3.8 7.5 9.75 13.5



4, Steam shrink Machine
5, Ink jet code printer

1) The number of lines: one to fifteen lines of English Numbers or one to eight lines of Chinese characters can be printed, and the size of the word can be adjusted. This system is dual-purpose.

2) Character height: 1 mm ~ 12.7 mm high word font can be printed

3) Inkjet print distance: nozzle to printing objects 5-10 mm

4) Automatic inkjet printing: date, time, batch number, class and serial number, etc

5) Storage information: 100 messages, 100 graphics can be stored.



6, Automatic cap lifter-washer

Parameter:

Model: TSJ-1200

Speed: 20-50 pcs/min

Material: SUS304

Motor power: 0.37kw

Dimension: 800*800*3000

Weight: 130kg



Detailed pictures of Barrel water bottling line

The capping belt

18.9 Liter Plastic Bottle 600BPH Gallon Filling Line 0

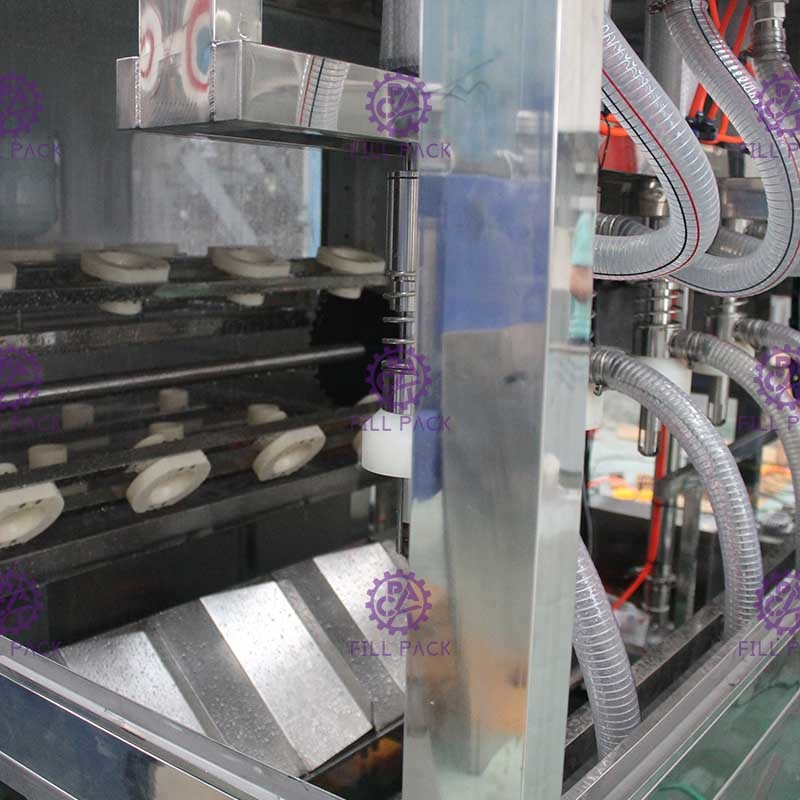

The 4 filling heads

18.9 Liter Plastic Bottle 600BPH Gallon Filling Line 1

Shipping package of Barrel water bottling line:
* After complete the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools
* The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
