18.9L Bottle 2000BPH Mineral Water Filling Machine

Product Description

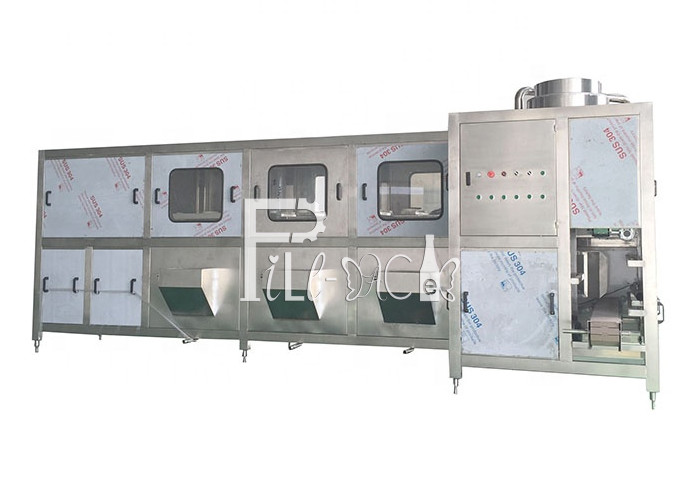

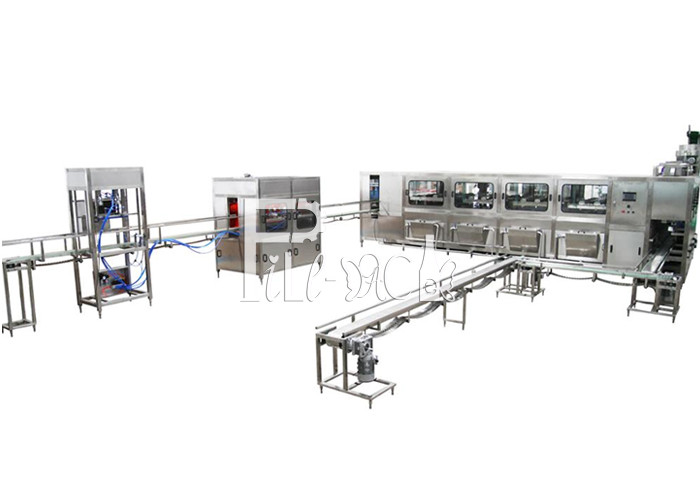

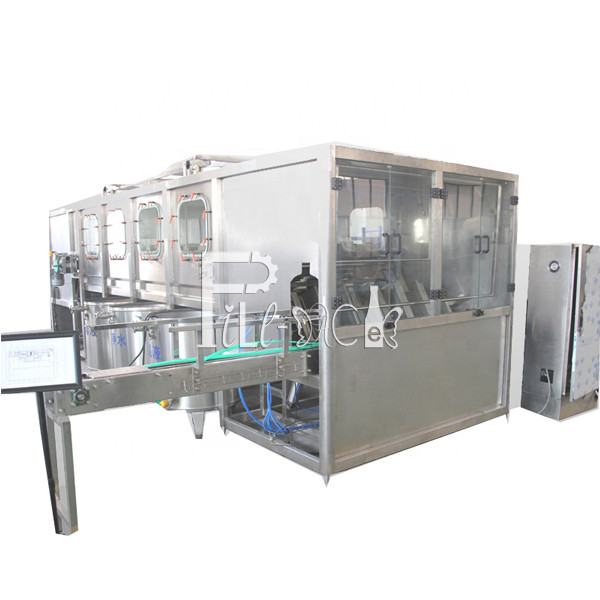

QGF-1200 Automatic Water Bottling Machine / System For 18.9L Bottle

Descpriptions Of Barrel Water Bottling Machine​:

1 . This bottle filling equipment is mainly used for washing, filling and capping 5gallon PET bottle

2 .  Bottle washing, filling and capping are achieved in one machine.

3 . The contact time is shorten between material and the outside. And improved the health conditions, production capacity and economic benefits.

4 . QGF series bottling machine adopts hanging type conveying-bottle structure to make changing bottle mold more convenient, faster and more laborsaving.

5 . The main machine adopts advanced PLC control technology. The key electric elements adopt Mitsubishi, Omron, Siemens, etc international famous products.

Work Theory Of Barrel Water Bottling Machine​:

The bottle enters into the rinsing part of three-in-one machine through air conveyor. The gripper installed on the rotary disk catches bottle and turns it over 180 degrees and makes the bottleneck face ground. In the special rinsing area, the nozzle on the gripper sprays water to rinse bottle inwall. After rinsing and draining, the bottle turns over 180 degrees along the guide rail and make the bottleneck faces sky. Then rinsed bottle is transferred to the filling part through poking bottle star-wheel. The bottle that enters into the filler is hold by neck holding plate. The filling valve acted by the cam can realize up and down. It adopts pressure filling way. The filling valve opens and begins filling when it moves down and touches the bottleneck, the filling valve move up and leave the bottleneck when it finishes filling, the full bottle is transferred to the capping part through hold neck transition poking wheel. The stop screwing knife holds the bottleneck, keeps bottle upright not rotating. The screw capping head keeps in revolution and autorotation. It can finish a whole capping course including catching, pressing, screwing, discharging through the action of the cam. The full bottle is transferred to bottle outlet conveyor to the next process through bottle outlet thumb wheel.

Specfications Of Barrel Water Bottling Machine​:

Flow chart Of Barrel Water Bottling Machine​:

More detailed images of conveyor
