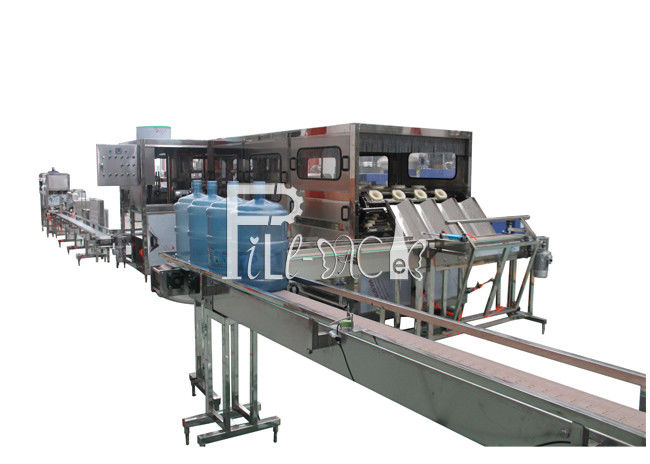

Concave Convex Shape 3 In 1 20 Liter Jar Filling Machine

Minimum Order Quantity : 1 set Price : USD $18,000-$20,000/set
Packaging Details : wooden case Delivery Time : 15-20 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 5 sets/month
Place of Origin: ZhangJiaGang JiangSu China Brand Name: FILL PACK
Certification: CE, ISO9001 Model Number: QGF600

Detail Information

Usage: Gallon Water Packing Capacity: 600 Barrels/Hour
Filling Valves: 4 Voltage: 380V 50HZ 3P Or Customized
Dimension(L*W*H): 5000*2300*1800mm Degree Of Automation: Fully Automatic
Size Of Barrel: ф276×490mm
High Light:

600 BPH Gallon Filling Line


600BPH 20 Liter Jar Filling Machine

Product Description

Description of 600BPH 3 in 1 bucket bottling line / plant for 10 to 20 liter Barrel

Main Machine Features of bucket bottling line:
1/Shape structure adopted concave and convex shape, perfect appearance also reduces the leakage.
2/The thickness of the stainless steel plate which used for 600bph is 3mm.
3/Tank and the heating pipe in tank are removable which become more clean sanitation.


Containers and Specifications of bucket bottling line
Project Name:
Full Automatic Complete 600BPH 3-5 Gallon Barrel Filling Production Line
Mineral Water /
Pure Water
Filling volume
Filling Type
Conveyor Mode
Round or Square
3 - 5 Gallon
Gravity filling
Normal temperature
Conveyor belt
Adjustable Specifications

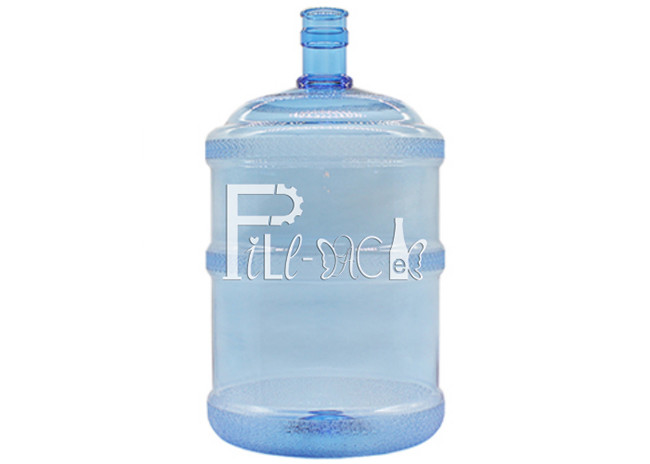

Bottle Type
Size of Barrel : ф276×490mm
Customers need to buy additional change-over parts for the different bottles.
If using square bottles, then bottle separating system will be added.
Container Label
Sticker Label / Shrink Wrap Label / Prinetr Label
User Ambient Conditions
Temperature:10~40℃;Humidity:No dew
User Electrical Supply Specification
Voltage:380V±5%, 3phase; Frequency:50HZ±1%


1, Automatic De-capper:

When the gallon bottle comes into the machine, the de-capping head will go down and claw device will hold tightly barrel cap sides, and then lift the barrel to take off the caps; And when the caps are taken off, the compressor air will blow the caps into cap hopper, then fall outside into client’s own holder;

The claw pressure is adjusted to protect caps;
De-capping head: 2 heads
Dimension: 900*600*2000mm
Weight: 130kg


2, Rotary external washer

Dimension: 1800*1550*1750mm

Weight: 800kg

Power: pump 0.37+motors 0.75*2+transfer motor 1.1=2.97KW

Recycle water tank size: 600*550*550mm

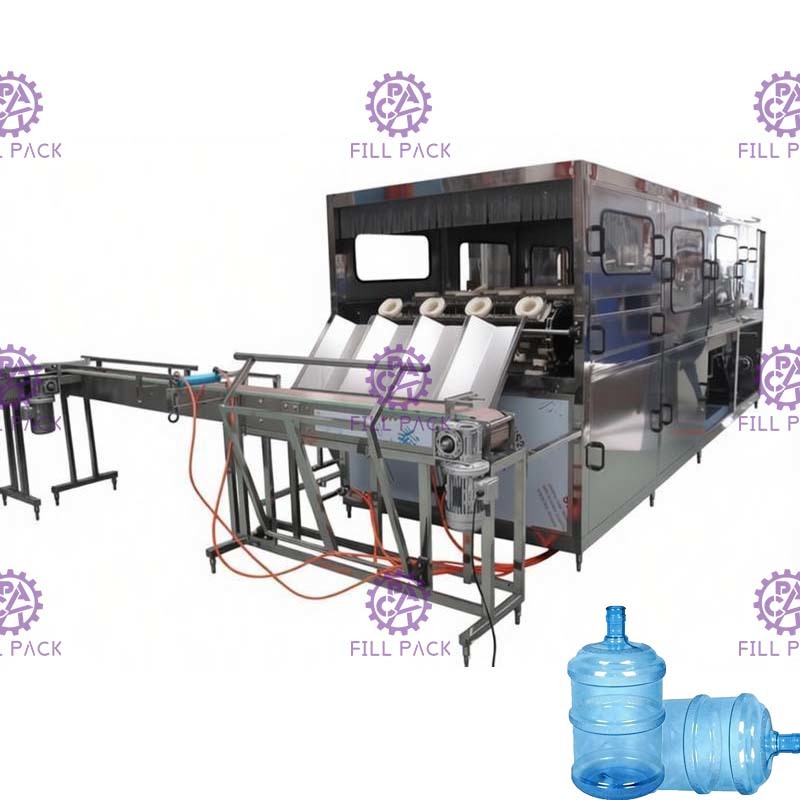

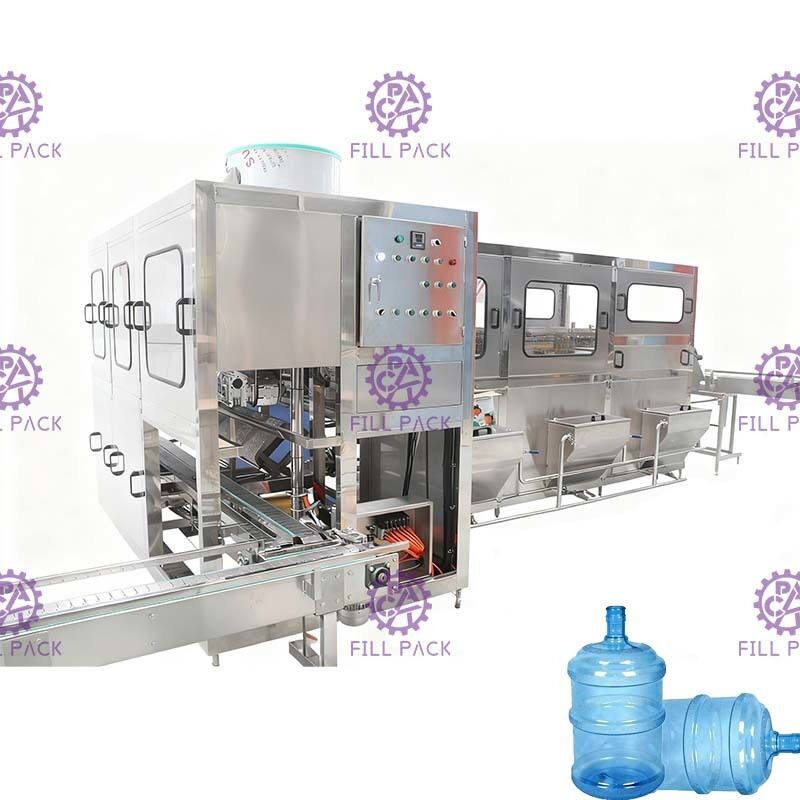

3, Monoblock gallon rinser-filler-capper

<1> 304/316 Stainless steel high precision filling nozzle
<2> Filling volume adjustable in fine rank, same liquid level after filling
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
<4> 304/316 stainless steel filling pump


Dimension: 5000*2300*1800mm

Weight: 1000kg

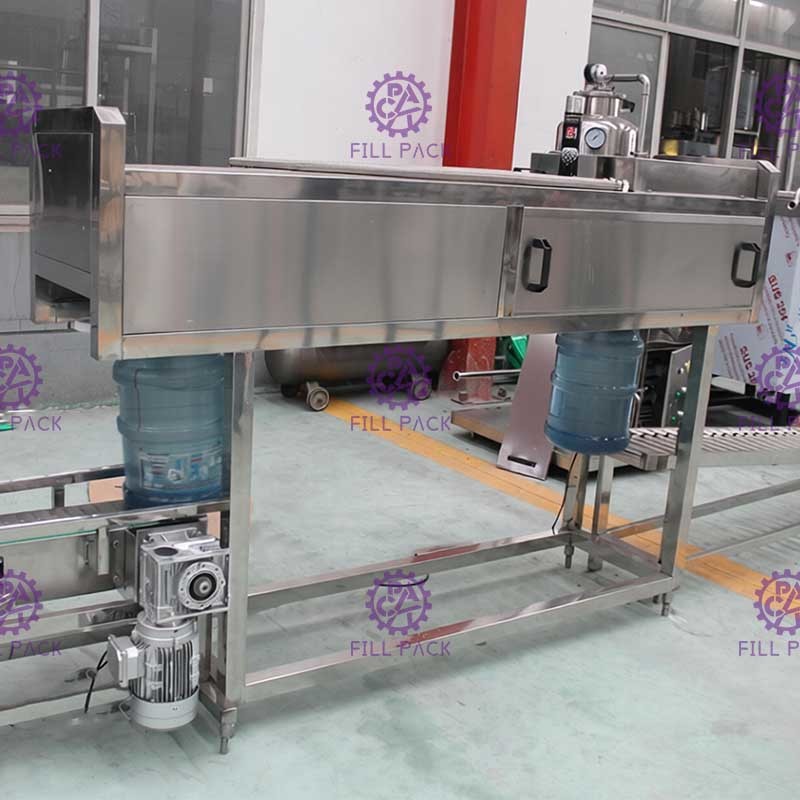

4, Steam shrink Machine

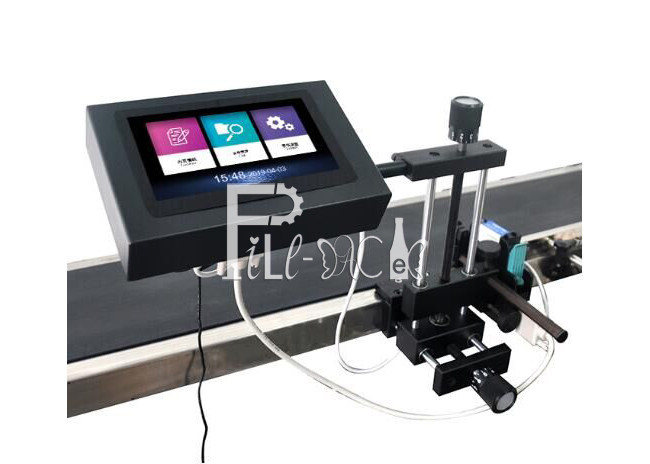

5, Ink jet code printer


6, Automatic cap lifter-washer

Dimension: 800*800*3000

Weight: 130kg


Main composition
Mitsubishi, Siemens
Touch screen
Mitsubishi, Siemens, PROFACE
Frequency converter
Mitsubishi, Siemens, Danfoss
Air switch
Photoelectric switch
Omron, Keyence, P+F
Approach switch
Main bearing
Lubrication bearing
Pneumatic components


Detailed pictures of bucket bottling line:

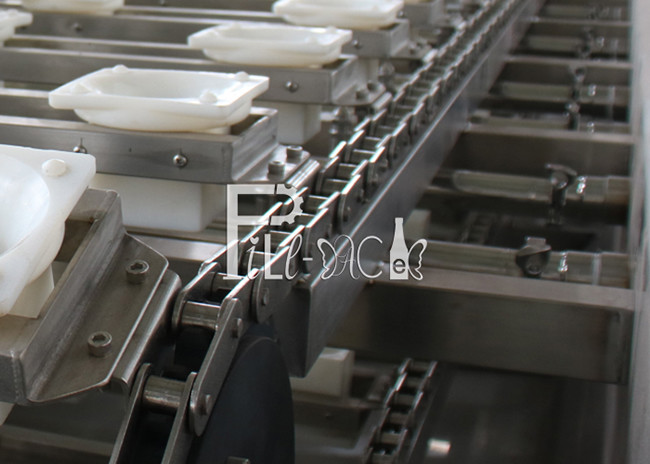

The bottle washing part:

Concave Convex Shape 3 In 1 20 Liter Jar Filling Machine 0

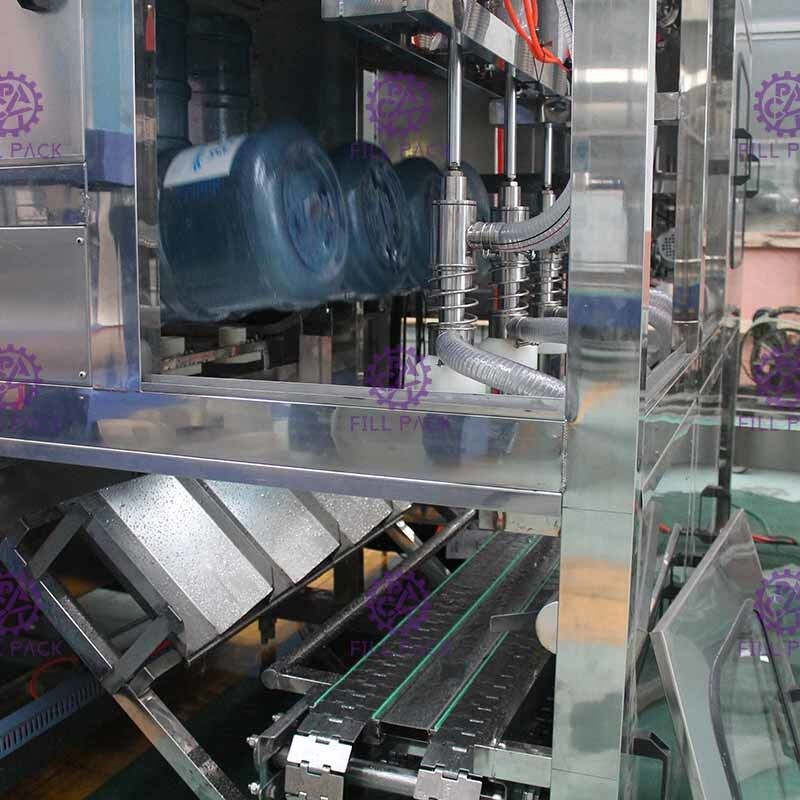

The 4 filling heads:

Concave Convex Shape 3 In 1 20 Liter Jar Filling Machine 1

Package Type:
As usual, we adopt wooden case as package type. It's suitable for long-distance transport. According to customers' special demand, we could adopt sheet iron case and so on.
