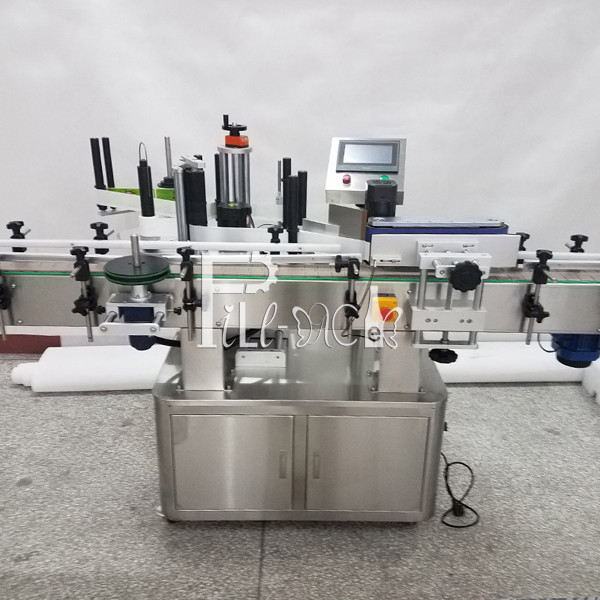

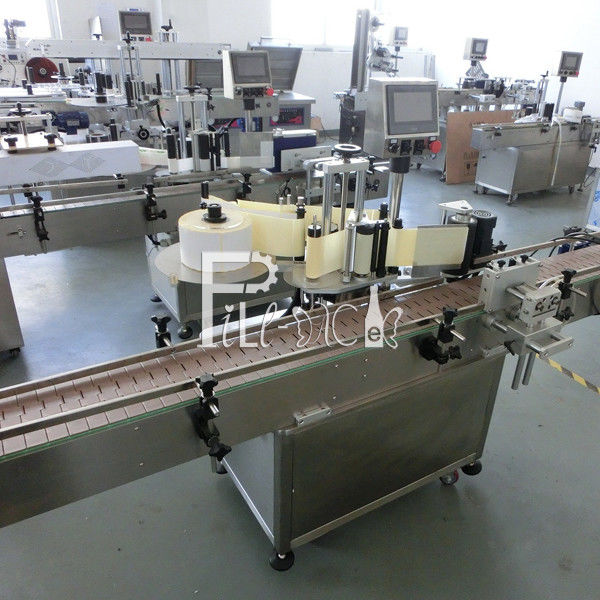

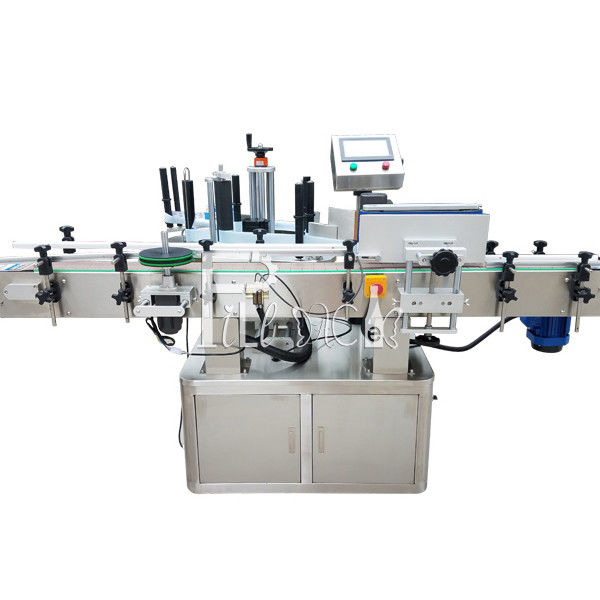

Low Voltage 20L Bottle Sticker Labeling Machine

Minimum Order Quantity : 1 set/pcs Price : USD$3,500.00
Packaging Details : Wooden case pacakge Delivery Time : 20-25 days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 5-10 sets/month
Place of Origin: ZhangJiaGang City, JiangSu Province, China Brand Name: FILLPACK
Certification: CE,ISO Model Number: T-751

Detail Information

Automatic Grade: Automatic Driven Type: Electric
Condition: New Packaging Type: Barrel
Warranty: 1 Year Bottle Type: 3gallon-5gallon
High Light:

18.9L Bottle Labeller


20L bottle labeling machine


automatic bottle labeler

Product Description

Full Automatic gallon sticker labeling equipment For 18.9 - 20 Litres Barrel


gallon sticker labeling equipment:

1 . Can be applied to the round bottle labeling of 3 - 5 gallon bottles , and can be pasted with a full - circumference label and a semi - circumferential label .
2 . Optional automatic rotary bottle uncrambler machine, can be directly connected to the front production line, automatic gallon barrels feeding into the labeling machine, increase efficiency
3 . It can be equipped with ribbon printer machine, which can print production date and batch number on line, reduce the packaging process of  barrels and improve production efficiency.
Device Advantages of gallon sticker labeling equipment:
1 . Control system: American AB brand PLC control system, with high stable operation and extremely low failure rate.

2 . Operation system: 10 inch MCGS touch screen, directly visual interface easy operation ,with Chinese and English two kinds language, also rich with the help of the function and fault display function.

3 . Check system:Use German LEUZE check label sensor, automatic check label station, stable and convenient don't have much higher requirement for the worker.
4 . Send label system: American AB high-power servo control system, stable with high speed.
5 . Alarm function: such as label spill, label broken or other malfunction during machine working all will alarm and stop working.
6 . Machine Material:The machine and spare parts all use material S304 stainless steel and anodized senior aluminum alloy,with high corrosion resistance and never rust.
7 . Labeling way : use the servo send label system to send label on product surface.
8 . Low voltage circuit all use the German Schneider brand.
Parameters of gallon sticker labeling equipment:
Label speed
20 bottles/min
Conveyor speed
Roll Label outer diameter
Roll Label inner diameter


Low Voltage 20L Bottle Sticker Labeling Machine 0
